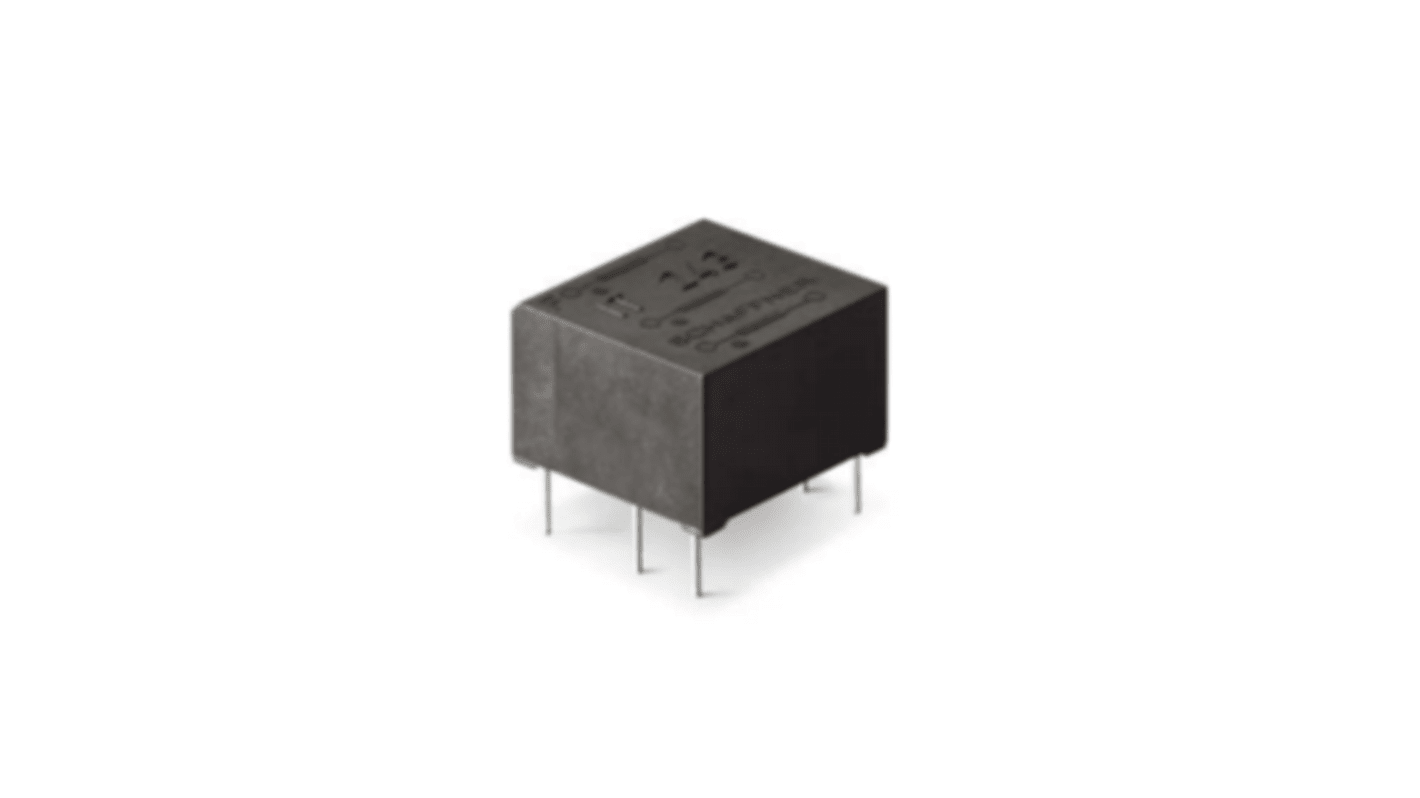

Schaffner Through Hole Pulse Transformer 1:1:1 Turns Ratio, 3mH Prim. Inductance, 0.8Ω Prim. Resistance
- RS Stock No.:
- 883-9099
- Mfr. Part No.:
- IT233
- Brand:
- Schaffner
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 883-9099
- Mfr. Part No.:
- IT233
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Primary Inductance | 3mH | |
| Primary DC Resistance | 0.8Ω | |
| Secondary DC Resistance | 0.8Ω | |
| Turns Ratio | 1:1:1 | |
| Mounting Type | Through Hole | |
| Leakage Inductance | 45µH | |
| Length | 27mm | |
| Width | 22.5mm | |
| Maximum Operating Frequency | 40 kHz, 500 (Data Transmission) kHz | |
| Construction | Enclosed | |
| Primary Voltage Rating | 500V | |
| Standards Met | EN 22768-m, ISO 2768-m, RoHS | |
| Primary Current Rating | 0.25A | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Primary Inductance 3mH | ||
Primary DC Resistance 0.8Ω | ||
Secondary DC Resistance 0.8Ω | ||
Turns Ratio 1:1:1 | ||
Mounting Type Through Hole | ||
Leakage Inductance 45µH | ||
Length 27mm | ||
Width 22.5mm | ||
Maximum Operating Frequency 40 kHz, 500 (Data Transmission) kHz | ||
Construction Enclosed | ||
Primary Voltage Rating 500V | ||
Standards Met EN 22768-m, ISO 2768-m, RoHS | ||
Primary Current Rating 0.25A | ||
Maximum Temperature +70°C | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- TH
Pulse transformers IT Series
Schaffner's IT pulse transformers are designed to offer you galvanic isolation for transformer coupled gate drives. The IT series provides negligible delays and the possibility of voltage scaling. They are available with single or double secondary winding for multiple gate drives. Choosing the IT product line brings you the rapid availability of a standard gate drive transformer. A wide selection on turns ratio, ignition current and voltages are designed to offer you the desired standard product.
Galvanic separation
Voltage resistance up to 8 kV
Allows high potential difference voltage scaling
Optional grounded shields
Vacuum potting
Very low partial discharge effects
PCB through hole mounting or faston types
Voltage resistance up to 8 kV
Allows high potential difference voltage scaling
Optional grounded shields
Vacuum potting
Very low partial discharge effects
PCB through hole mounting or faston types
