Carlo Gavazzi Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 10 → 40 V dc, 12 →
- RS Stock No.:
- 859-3115
- Mfr. Part No.:
- EI1805PPOSS-1
- Brand:
- Carlo Gavazzi
Subtotal (1 unit)*
£52.17
(exc. VAT)
£62.60
(inc. VAT)
FREE delivery for orders over £50.00
- 3 unit(s) ready to ship
Units | Per unit |
---|---|
1 + | £52.17 |
*price indicative
- RS Stock No.:
- 859-3115
- Mfr. Part No.:
- EI1805PPOSS-1
- Brand:
- Carlo Gavazzi
Select all | Attribute | Value |
---|---|---|
Brand | Carlo Gavazzi | |
Thread Size | M18 | |
Sensor Technology | Inductive | |
Body Style | Threaded Barrel | |
Detection Range | 5 mm | |
Output Function | NO | |
Digital Switching Output Type | PNP | |
Connection Type | M12 | |
Supply Voltage | 10 → 40 V dc, 12 → 36 V dc | |
IP Rating | IP67 | |
Length | 55mm | |
Mounting Type | Flush | |
Housing Material | Stainless Steel | |
Maximum DC Voltage | 40V | |
Minimum Operating Temperature | -25°C | |
Short Circuit Overload Protection | Yes | |
Series | EI | |
Maximum Switching Frequency | 500Hz | |
Switching Current | 200 mA | |
Reverse Polarity Protection | Yes | |
Maximum Operating Temperature | +70°C | |
Switching Frequency | 500 Hz | |
Shielding | Shielded | |
Select all | ||
---|---|---|
Brand Carlo Gavazzi | ||
Thread Size M18 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 5 mm | ||
Output Function NO | ||
Digital Switching Output Type PNP | ||
Connection Type M12 | ||
Supply Voltage 10 → 40 V dc, 12 → 36 V dc | ||
IP Rating IP67 | ||
Length 55mm | ||
Mounting Type Flush | ||
Housing Material Stainless Steel | ||
Maximum DC Voltage 40V | ||
Minimum Operating Temperature -25°C | ||
Short Circuit Overload Protection Yes | ||
Series EI | ||
Maximum Switching Frequency 500Hz | ||
Switching Current 200 mA | ||
Reverse Polarity Protection Yes | ||
Maximum Operating Temperature +70°C | ||
Switching Frequency 500 Hz | ||
Shielding Shielded | ||
RoHS Status: Exempt
- COO (Country of Origin):
- LT

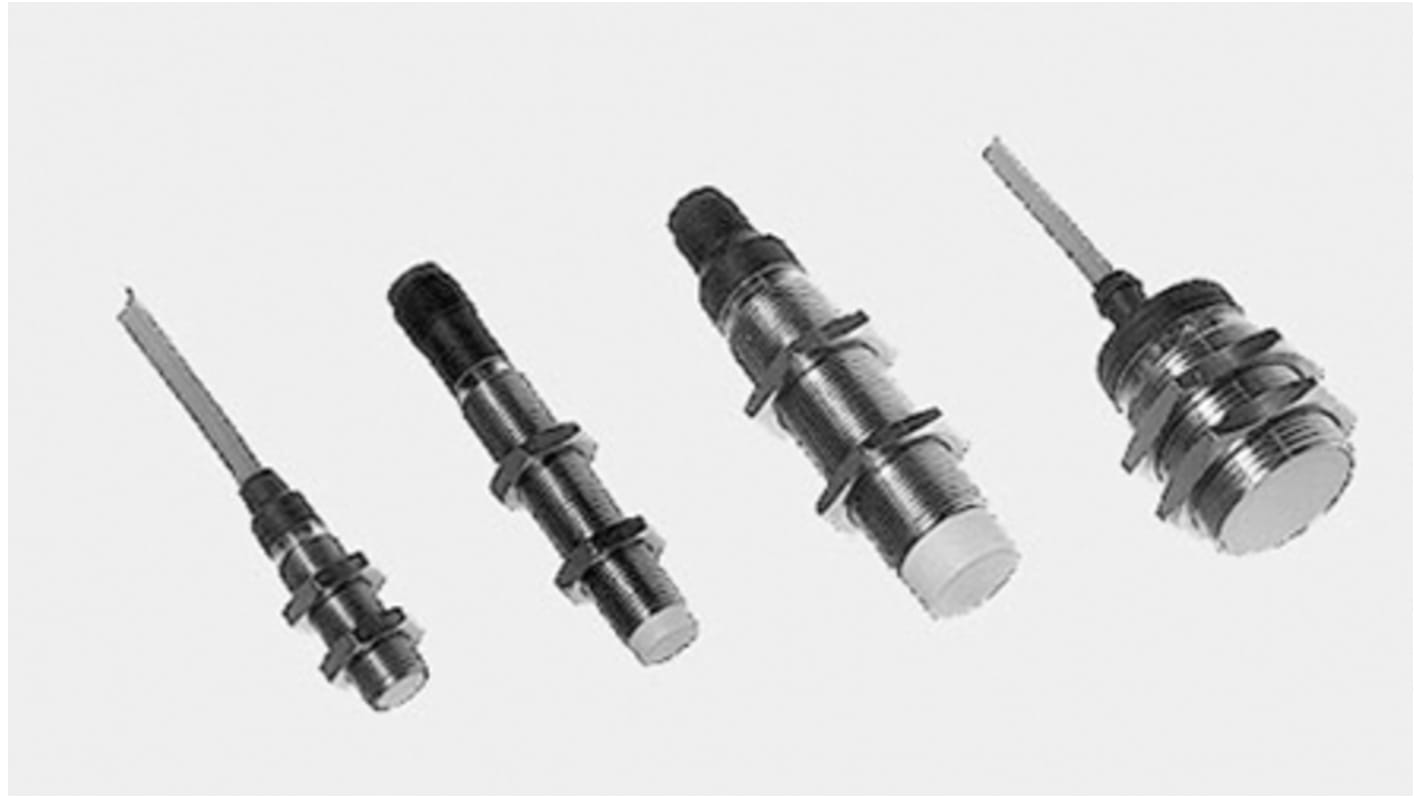

Type EI, Stainless Steel Housing, DC
Stainless steel housing, cylindrical
Diameter: M12, M18, M30
Short or long versions
Sensing distance: 2 to 15 mm
Power supply: 10 to 40 V dc
Output: Transistor NPN/PNP, normally open or normally closed
Protection: Short-circuit and reverse polarity
LED-indication for output ON
2 m cable or plug M12
Standards
