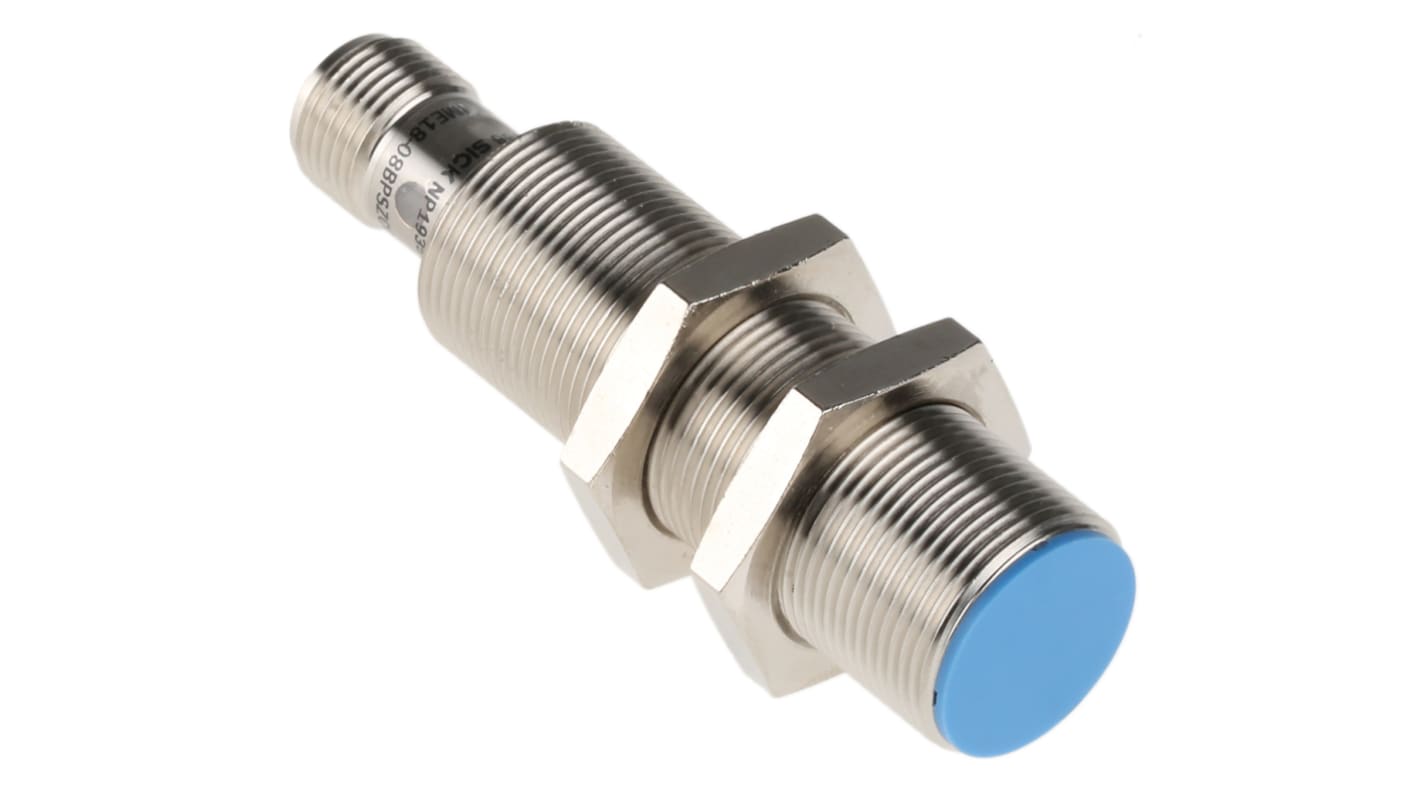

SICK IME18-08BPSZC0S Threaded Barrel Inductive Proximity Sensor, M18 x 1 PNP IME 30V 8 mm 30 V dc 200mA

RS Stock No.:: 703-3739
Distrelec Article No.:: 137-58-172
Mfr. Part No.:: IME18-08BPSZC0S
Brand:: SICK

Subtotal (1 unit)*

£27.81

(exc. VAT)

£33.37

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

757 unit(s) ready to ship
Plus 315 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£27.81

*price indicative

Keep Projects Moving. Keep Facilities Running.

From planned maintenance and building upgrades to urgent repairs, facilities management teams and contractors need reliable access to the products that keep operations running. At RS, we help simplify sourcing with a comprehensive range of products across electrical, HVAC, tools, PPE, site safety and maintenance. With dependable stock availability, fast delivery options and support from a trusted supplier, you can spend less time managing procurement and more time focusing on the job at hand.

Discover More

RS Stock No.:: 703-3739
Distrelec Article No.:: 137-58-172
Mfr. Part No.:: IME18-08BPSZC0S
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Thread Size	M18 x 1
	Product Type	Inductive Proximity Sensor
	Body Style	Threaded Barrel
	Length	69mm
	IP Rating	IP67
	Terminal Type	4-Pin M12 Male Connector
	Mount Type	Flush
	Maximum Supply Voltage	30V
	Housing Material	Nickel Plated Brass
	Width	18mm
	Minimum Operating Temperature	-25°C
	Maximum DC Voltage	30V dc
	Maximum Detection	8mm
	Materials Detected	Aluminium, 304 V2A Stainless Steel, Copper, Steel, Brass
	Maximum Operating Temperature	75°C
	Standards/Approvals	EN 60529, EN 60947-5-2
	Output Type	PNP
	Shielding	Shielded
	Series	IME
	Switching Current	200mA
	Maximum Switching Frequency	1kHz

	Select all
	Brand SICK
	Thread Size M18 x 1
	Product Type Inductive Proximity Sensor
	Body Style Threaded Barrel
	Length 69mm
	IP Rating IP67
	Terminal Type 4-Pin M12 Male Connector
	Mount Type Flush
	Maximum Supply Voltage 30V
	Housing Material Nickel Plated Brass
	Width 18mm
	Minimum Operating Temperature -25°C
	Maximum DC Voltage 30V dc
	Maximum Detection 8mm
	Materials Detected Aluminium, 304 V2A Stainless Steel, Copper, Steel, Brass
	Maximum Operating Temperature 75°C
	Standards/Approvals EN 60529, EN 60947-5-2
	Output Type PNP
	Shielding Shielded
	Series IME
	Switching Current 200mA
	Maximum Switching Frequency 1kHz

COO (Country of Origin):: HU

SICK IME Series Proximity Sensor, 8mm Detection Range, Inductive Technology - IME18-08BPSZC0S

This inductive proximity sensor features a cylindrical threaded barrel design and is Ideal for various industrial applications. With a detection range of up to 8mm, this robust sensor operates effectively within a supply voltage of 10V DC to 30V DC. Its dimensions include a diameter of 18mm and a length of 69mm, designed for flush mount installation.

Features & Benefits

• Brass nickel-plated housing ensures durability and corrosion resistance
• IP67 rating guarantees protection against dust and water ingress
• PNP output enables straightforward integration into automation systems
• Short-circuit overload protection enhances reliability in operation
• High-frequency switching capability at 1 kHz allows Rapid detection
• Flush mounting facilitates seamless integration into existing setups

Applications

• Used in automation for detecting metal parts
• Suitable for position sensing in assembly lines
• Employed in packaging machinery for object detection
• Utilised in robotics for fine movement control

What is the significance of the IP67 rating for this component?

An IP67 rating indicates that this sensor is fully protected against dust and temporary immersion in water, making it suitable for harsh environmental conditions commonly found in industrial settings.

How does the switching frequency impact its performance?

The high switching frequency of 1 kHz allows the sensor to respond quickly to the presence of objects, ensuring efficient operation in fast-paced environments, such as assembly lines or sorting applications.

What materials are important in this sensor’s design?

The sensor's housing is MADE from brass with a nickel plating that enhances its resistance to corrosion, ensuring longevity in demanding usage scenarios.

How does the output type affect compatibility with control systems?

Being a PNP output sensor, it interfaces well with many control systems requiring sourcing outputs, facilitating easier integration into existing machinery without complex rewiring.
