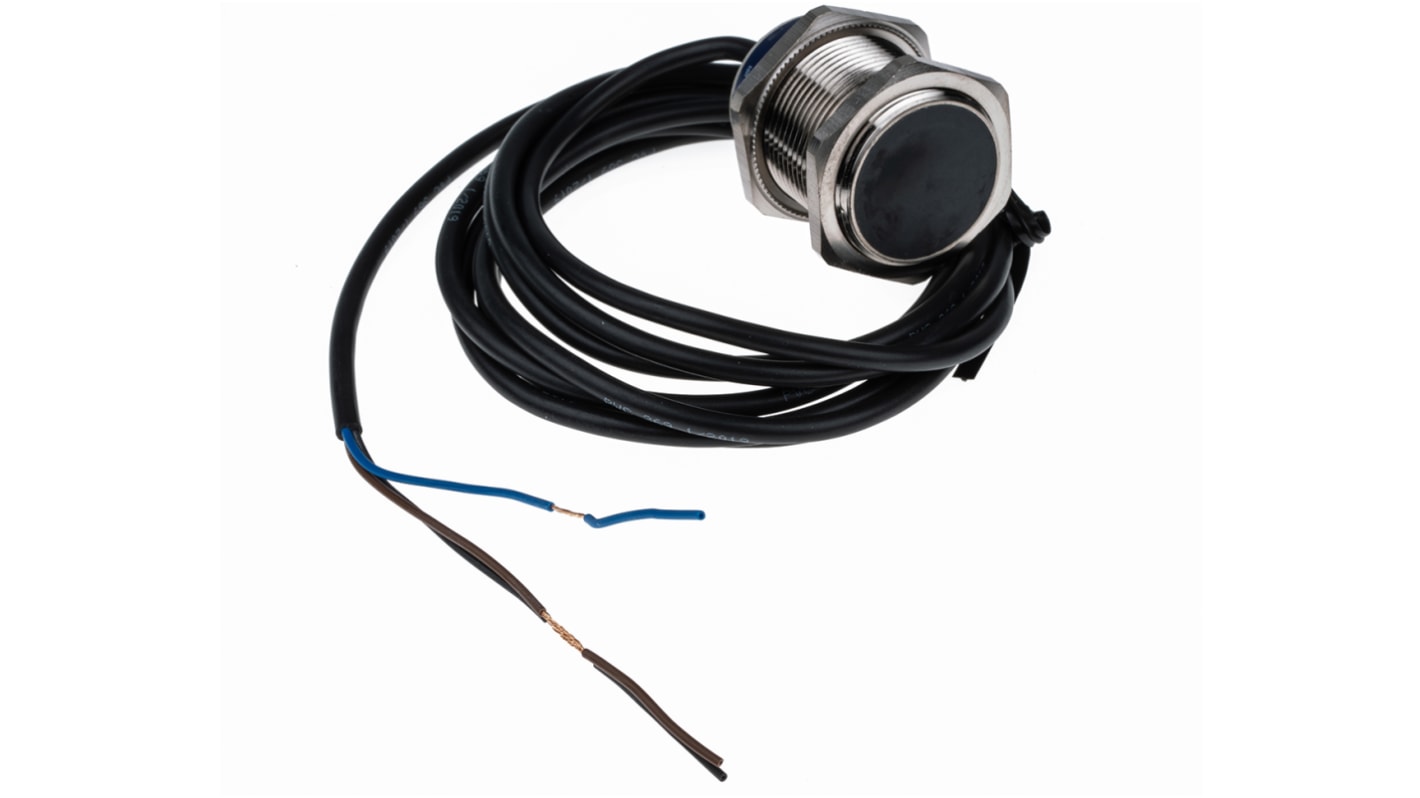

Telemecanique Sensors Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 36 V dc

RS Stock No.:: 695-6732
Mfr. Part No.:: XS130B3PAL2
Brand:: Telemecanique Sensors

Telemecanique Sensors Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 36 V dc

Subtotal (1 unit)**

£62.87

(exc. VAT)

£75.44

(inc. VAT)

30 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 +	£62.87

**price indicative

RS Stock No.:: 695-6732
Mfr. Part No.:: XS130B3PAL2
Brand:: Telemecanique Sensors

Telemecanique Inductive Proximity Sensors OsiSense XS.

Telemecanique Inductive Proximity Sensors OsiSense XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.

Flush and Non-Flush (shielded and non-shielded).

Short and long body.

PNP and NPN versions (compatible with PLCs and controllers).

2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.

Material working, machine tools. Packaging. Food and beverage. Robotics.

XS130B3PAL2 General Purpose Inductive Proximity Sensor (XS).

XS1 Inductive Proximity Sensor.

General purpose, Mobile equipment.

Cylindrical (barrel) M30.

Size 45 mm.

Fixed body, Flush mountable.

Nickel plated brass, PPS front.

Discrete signal, 3-wire.

15 mm sensing distance (nominal).

Output 1 NO (DC), PNP.

2 m Cable connection.

[Us] rated supply voltage 12 to 24 V dc (with reverse polarity).

M30 x 1.5 Thread.

Front detection face.

1 LED, yellow output.

Threaded length 32 mm, Length 45 mm.

Weight 0.18 Kg.

IP65 conforming to IEC 60529 IP67 conforming to IEC 60529, Vibration resistance to IEC 60068-2-6.

Shock resistance to EN 60068-2-27.

CE marked.

Certificates.

UL, CSA, E2.

Attribute	Value
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	15 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 36 V dc
Length	43mm
IP Rating	IP69K
Mounting Type	Flush
Housing Material	Brass Nickel Plated
Maximum DC Voltage	36V
Minimum Operating Temperature	-25°C
Shielding	Shielded
Reverse Polarity Protection	Yes
Series	OsiSense XS
Short Circuit Overload Protection	Yes
Switching Frequency	500 Hz
Switching Current	200 mA
Maximum Switching Frequency	500Hz
Maximum Operating Temperature	+70°C
Depth	36mm
