Telemecanique Sensors Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP/NPN NO/NC, 10 → 36 V

RS Stock No.:: 609-7325
Distrelec Article No.:: 303-04-239
Mfr. Part No.:: XS4P30KP340
Brand:: Telemecanique Sensors

Telemecanique Sensors Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP/NPN NO/NC, 10 → 36 V

Subtotal (1 unit)*

£82.11

(exc. VAT)

£98.53

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 16 unit(s) shipping from 22 September 2025
Plus 44 unit(s) shipping from 22 September 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£82.11

*price indicative

RS Stock No.:: 609-7325
Distrelec Article No.:: 303-04-239
Mfr. Part No.:: XS4P30KP340
Brand:: Telemecanique Sensors

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Thread Size	M30
	Sensor Technology	Inductive
	Body Style	Threaded Barrel
	Detection Range	15 mm
	Digital Switching Output Type	PNP/NPN
	Output Function	NO/NC
	Connection Type	Pre-Cabled
	Cable Length	2m
	Supply Voltage	10 → 36 V dc
	Length	70mm
	IP Rating	IP68
	Mounting Type	Non-Flush
	Housing Material	PPS
	Maximum DC Voltage	36V
	Minimum Operating Temperature	-25°C
	Maximum Switching Frequency	1kHz
	Maximum Operating Temperature	+70°C
	Short Circuit Overload Protection	Yes
	Series	XS
	Switching Frequency	1 kHz
	Reverse Polarity Protection	Yes
	Switching Current	200 mA
	Shielding	Unshielded

	Select all
	Brand Telemecanique Sensors
	Thread Size M30
	Sensor Technology Inductive
	Body Style Threaded Barrel
	Detection Range 15 mm
	Digital Switching Output Type PNP/NPN
	Output Function NO/NC
	Connection Type Pre-Cabled
	Cable Length 2m
	Supply Voltage 10 → 36 V dc
	Length 70mm
	IP Rating IP68
	Mounting Type Non-Flush
	Housing Material PPS
	Maximum DC Voltage 36V
	Minimum Operating Temperature -25°C
	Maximum Switching Frequency 1kHz
	Maximum Operating Temperature +70°C
	Short Circuit Overload Protection Yes
	Series XS
	Switching Frequency 1 kHz
	Reverse Polarity Protection Yes
	Switching Current 200 mA
	Shielding Unshielded

Telemecanique Inductive Proximity Sensors XS.

Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.

Flush and Non-Flush (shielded and non-shielded).

Flat form.

Short and long body.

PNP and NPN versions (compatible with PLCs and controllers).

2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.

Material working, machine tools. Packaging. Food and beverage. Robotics.

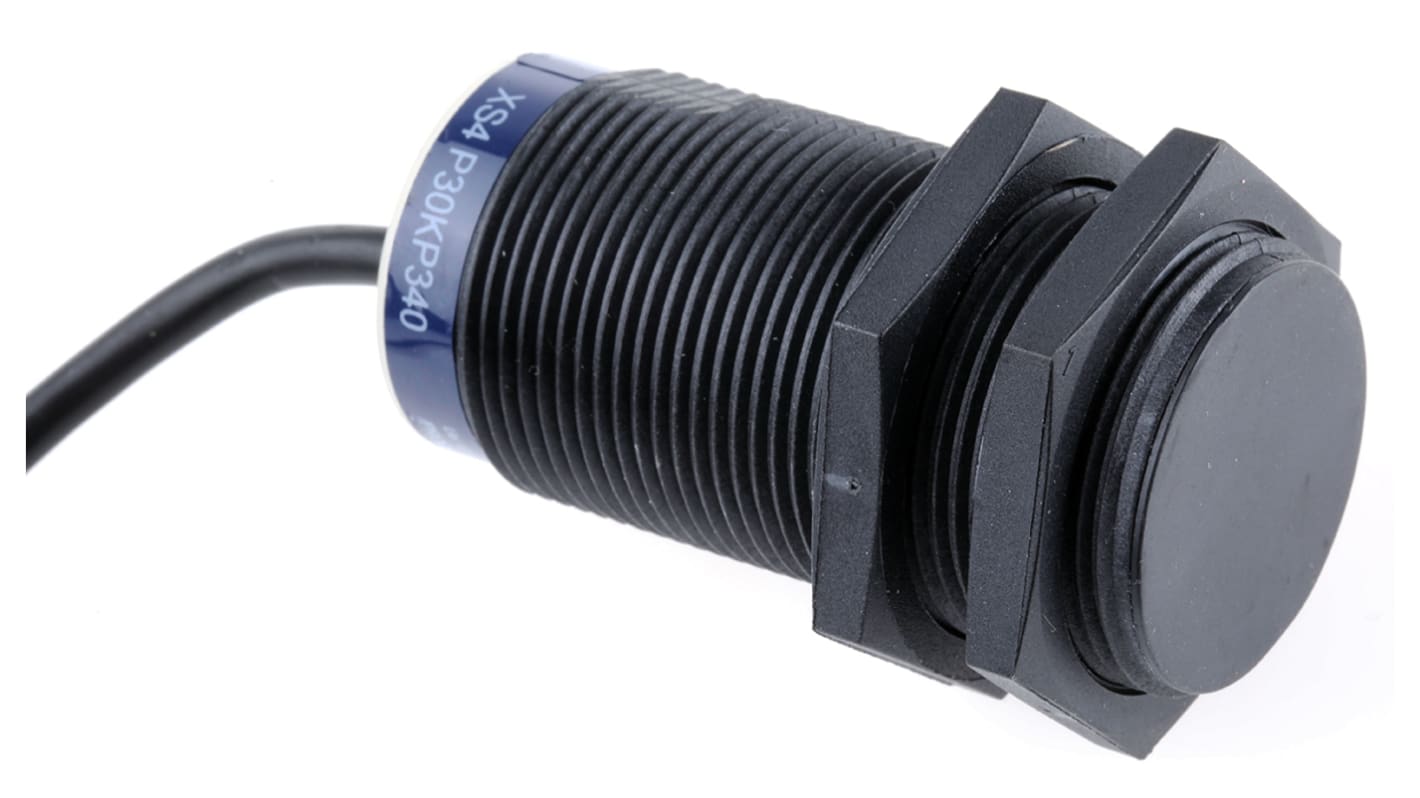

XS4P30KP340 General Purpose Inductive Proximity Sensor (XS).

XS4 Inductive Proximity Sensor (part of the OsiSense XS range).

General purpose applications.

Cylindrical (barrel) M30.

Fixed body, 60 mm.

Plastic PPS body, Front detection PPS.

Non-Flush mount.

Discrete signal, 4-wire.

15 mm (nominal sensing range).

Output 1 NC or 1 NO, programmable.

2 m Cable connection.

[Us] rated supply voltage 12 to 24 V dc (reverse polarity protection.

1 LED yellow (output).

Threaded length 51 mm, Length 60 mm, Height 30 mm, Weight 0.205 kg.

IP68 double insulation conforming to IEC 60529.

Vibration resistance to IEC 60068-2-6.

Shock resistance to EN 60068-2-27.

CE marked.

Certificates.

UL, CSA.
