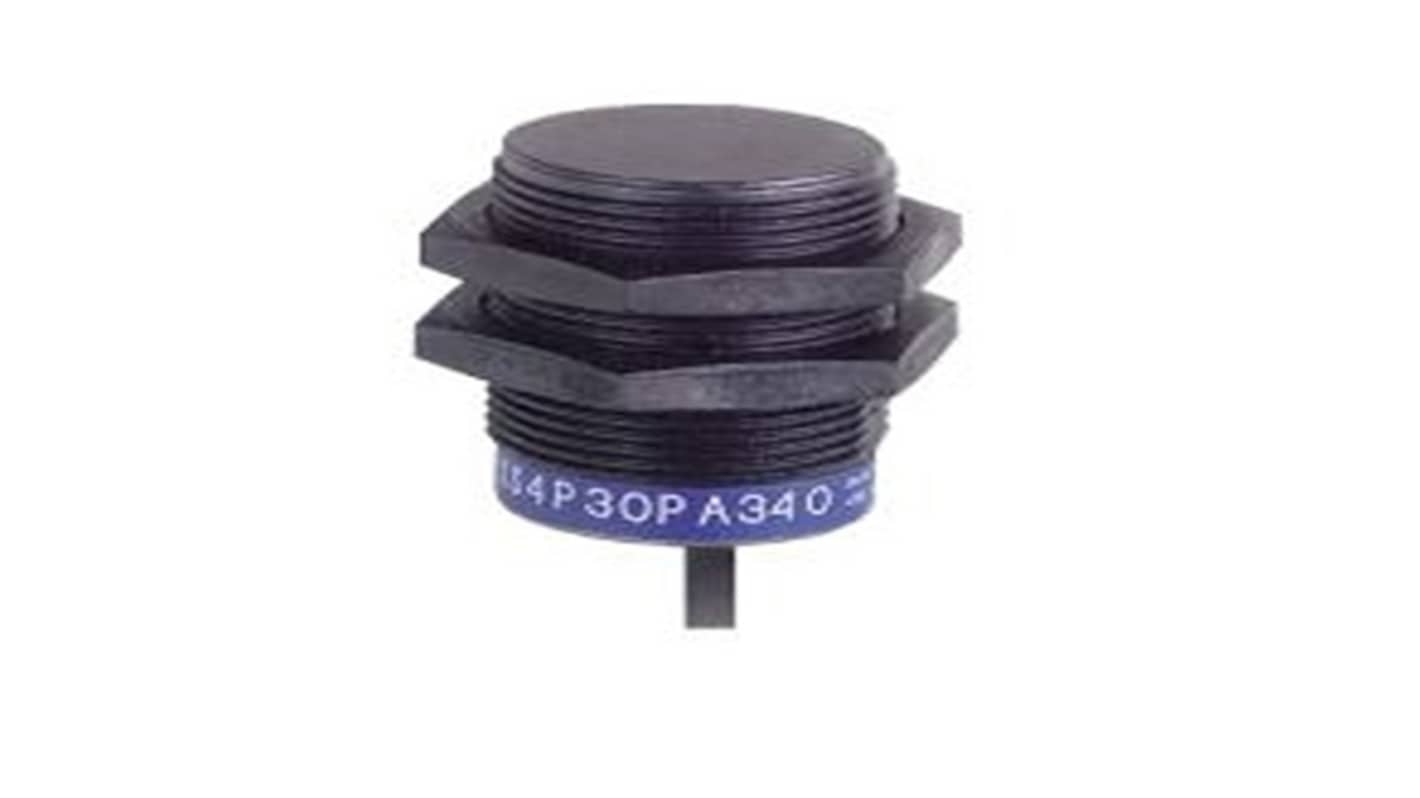

Telemecanique Sensors XS4P30PA340 Threaded Barrel Inductive Proximity Sensor, M30 x 1.5 PNP XS 36V 15 mm 36 V dc 200mA
- RS Stock No.:
- 434-690
- Mfr. Part No.:
- XS4P30PA340
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£69.50
(exc. VAT)
£83.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £69.50 |
*price indicative
- RS Stock No.:
- 434-690
- Mfr. Part No.:
- XS4P30PA340
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Thread Size | M30 x 1.5 | |
| Product Type | Inductive Proximity Sensor | |
| Body Style | Threaded Barrel | |
| IP Rating | IP68 | |
| Length | 43mm | |
| Mount Type | Non-Flush | |
| Terminal Type | Cable | |
| Housing Material | Polyphenylene Sulphide | |
| Maximum Supply Voltage | 36V | |
| Width | 3mm | |
| Maximum DC Voltage | 36V dc | |
| Minimum Operating Temperature | -25°C | |
| Materials Detected | Plastic | |
| Maximum Detection | 15mm | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE | |
| Switching Current | 200mA | |
| Series | XS | |
| Maximum Switching Frequency | 1000Hz | |
| Output Type | PNP | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Thread Size M30 x 1.5 | ||
Product Type Inductive Proximity Sensor | ||
Body Style Threaded Barrel | ||
IP Rating IP68 | ||
Length 43mm | ||
Mount Type Non-Flush | ||
Terminal Type Cable | ||
Housing Material Polyphenylene Sulphide | ||
Maximum Supply Voltage 36V | ||
Width 3mm | ||
Maximum DC Voltage 36V dc | ||
Minimum Operating Temperature -25°C | ||
Materials Detected Plastic | ||
Maximum Detection 15mm | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE | ||
Switching Current 200mA | ||
Series XS | ||
Maximum Switching Frequency 1000Hz | ||
Output Type PNP | ||
- COO (Country of Origin):
- FR
The Telemecanique Sensors Inductive proximity sensor M30 is made of PPS with a length of 43 mm. It has a sensing range (Sn) of 15 mm and operates on 12 to 24 VDC. The sensor comes with a 2-meter cable for flexible installation in industrial environments.
CE marking
PPS front material
