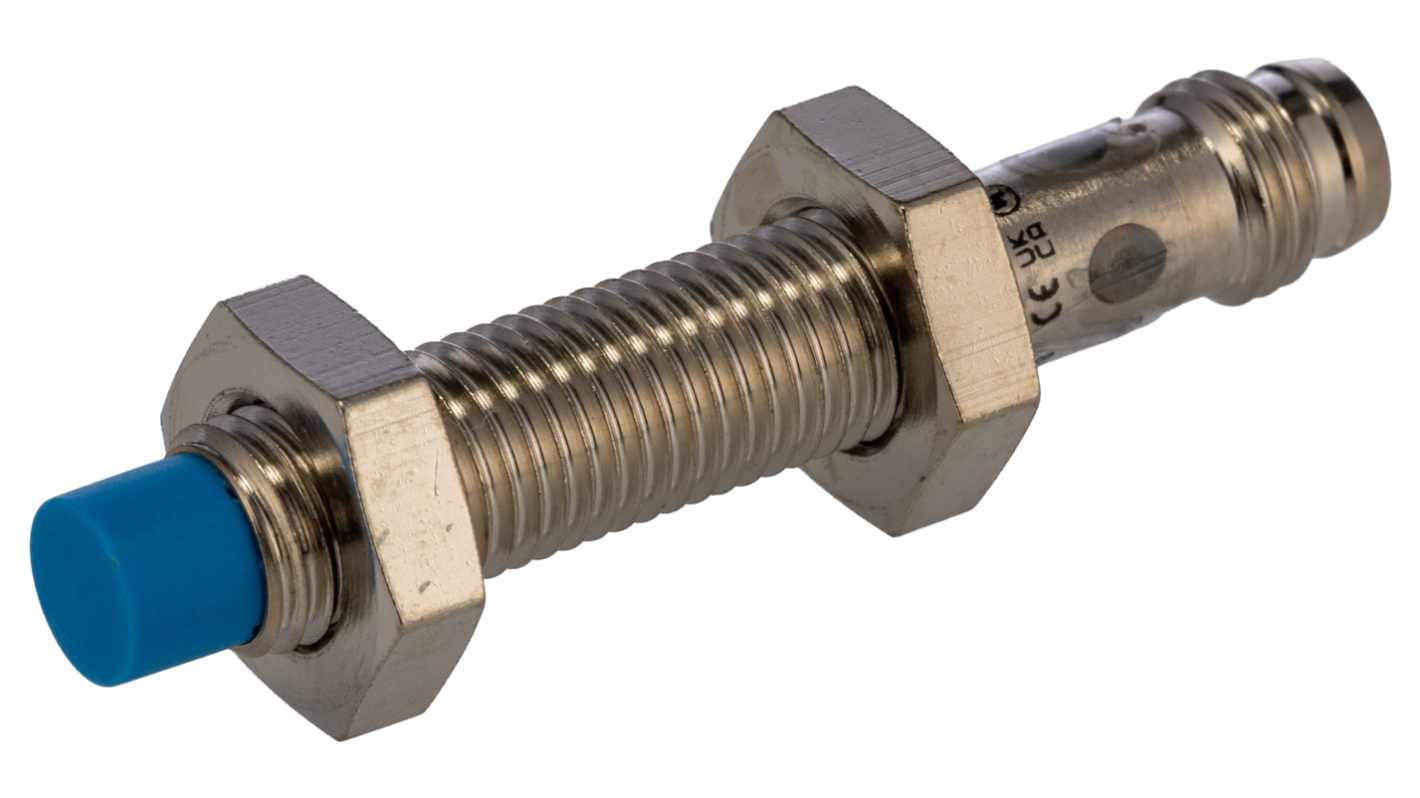

SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc

RS Stock No.:: 266-9800
Mfr. Part No.:: IME08-04NPSZT0KS07
Brand:: SICK

SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc

Subtotal (1 unit)*

£27.91

(exc. VAT)

£33.49

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

75 unit(s) ready to ship
Plus 45 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£27.91

*price indicative

Enhance Your Sensor Setup

Proximity sensors perform best when paired with the right accessories. From mounting brackets to protective covers and connectors, our sensor accessories help you install, secure, and optimise your sensing solution. If you're browsing proximity sensors, don’t forget to explore our accessories range to complete your setup and ensure reliable, long-term performance.

Shop Now

RS Stock No.:: 266-9800
Mfr. Part No.:: IME08-04NPSZT0KS07
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Thread Size	M8
	Sensor Technology	Inductive
	Detection Range	4 mm
	Body Style	Threaded Barrel
	Output Function	NO
	Digital Switching Output Type	PNP
	Connection Type	M8
	Supply Voltage	10 → 30 V dc
	IP Rating	IP67
	Length	41mm
	Mounting Type	Non-Flush
	Width	8mm
	Housing Material	Brass, Nickel-Plated
	Maximum DC Voltage	30V
	Diameter	8 mm
	Minimum Operating Temperature	-25°C
	Reverse Polarity Protection	Yes
	Short Circuit Overload Protection	Yes
	Maximum Switching Frequency	4kHz
	Switching Frequency	4 kHz
	Maximum Operating Temperature	+75°C
	Standards Met	CE
	Switching Current	200 mA
	Shielding	Unshielded
	Series	IME08

	Select all
	Brand SICK
	Thread Size M8
	Sensor Technology Inductive
	Detection Range 4 mm
	Body Style Threaded Barrel
	Output Function NO
	Digital Switching Output Type PNP
	Connection Type M8
	Supply Voltage 10 → 30 V dc
	IP Rating IP67
	Length 41mm
	Mounting Type Non-Flush
	Width 8mm
	Housing Material Brass, Nickel-Plated
	Maximum DC Voltage 30V
	Diameter 8 mm
	Minimum Operating Temperature -25°C
	Reverse Polarity Protection Yes
	Short Circuit Overload Protection Yes
	Maximum Switching Frequency 4kHz
	Switching Frequency 4 kHz
	Maximum Operating Temperature +75°C
	Standards Met CE
	Switching Current 200 mA
	Shielding Unshielded
	Series IME08

Datasheet - IME08-04NPSZT0KS07

COO (Country of Origin):: HU

SICK IME08 Series Proximity Sensor, 4mm Detection Range, 200mA Switching Current - IME08-04NPSZT0KS07

This proximity sensor is designed for precise detection in various industrial applications. It features an M8 threaded barrel and employs inductive technology to achieve a detection range of 4mm. The sensor operates effectively within a supply voltage of 10 to 30V DC and is rated IP67, ensuring protection against dust and water ingress.

Features & Benefits

• Compact M8 design allows for flexible installation options
• Inductive technology enables non-contact sensing capabilities
• PNP output simplifies integration into existing systems
• Nickel-plated brass housing ensures durability and corrosion resistance
• Short circuit and reverse polarity protection enhance reliability
• Handles a maximum switching frequency of 4 kHz for efficiency

Applications

• Used with automation equipment for immediate part detection
• Utilised in assembly lines for precise positioning
• Applied in robotic systems for object presence verification
• Effective in packaging machinery to detect product positioning
• Ideal for harsh conditions thanks to its IP67 rating

What supply voltage range does this sensor operate within?

It operates effectively within a supply voltage range of 10 to 30V DC, providing flexibility for different applications.

How does the design of the housing contribute to its functionality?

The nickel-plated brass housing delivers high durability, ensuring the sensor remains operational in demanding environments while resisting corrosion.

What kind of protection does this sensor offer against electrical issues?

It includes short circuit and reverse polarity protection, which safeguard the device from potential electrical faults, enhancing its longevity.

Can this sensor be used in extreme temperatures?

Yes, it can function effectively in a temperature range from -25 °C to +75 °C, making it suitable for a variety of industrial settings.

What is the importance of having a non-flush mounting type?

The non-flush mount allows for optimal sensing performance as it provides greater separation from the target, improving detection reliability in various applications.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
