Telemecanique Sensors XT232A1FAL2 Barrel Capacitive Proximity Sensor XT 20 mm 2-Wire 400mA 240V ac 240 V ac 24 V dc
- RS Stock No.:
- 220-1045
- Mfr. Part No.:
- XT232A1FAL2
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£165.10
(exc. VAT)
£198.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £165.10 |
*price indicative
- RS Stock No.:
- 220-1045
- Mfr. Part No.:
- XT232A1FAL2
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Capacitive Proximity Sensor | |
| Body Style | Barrel | |
| Length | 80mm | |
| IP Rating | IP67 | |
| Mount Type | Non-Flush | |
| Terminal Type | Cable | |
| Width | 36mm | |
| Housing Material | Plastic | |
| Maximum Supply Voltage | 240V ac | |
| Maximum DC Voltage | 24V dc | |
| Minimum Operating Temperature | -10°C | |
| Materials Detected | Conductive Material, Insulated | |
| Maximum Detection | 20mm | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN/IEC 60947-5-2, cULus | |
| Hazardous Area Certification | No | |
| Output Type | 2-Wire | |
| Series | XT | |
| Maximum AC Voltage | 240V ac | |
| Shielding | Unshielded | |
| Maximum Switching Frequency | 150Hz | |
| Switching Current | 400mA | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Capacitive Proximity Sensor | ||
Body Style Barrel | ||
Length 80mm | ||
IP Rating IP67 | ||
Mount Type Non-Flush | ||
Terminal Type Cable | ||
Width 36mm | ||
Housing Material Plastic | ||
Maximum Supply Voltage 240V ac | ||
Maximum DC Voltage 24V dc | ||
Minimum Operating Temperature -10°C | ||
Materials Detected Conductive Material, Insulated | ||
Maximum Detection 20mm | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN/IEC 60947-5-2, cULus | ||
Hazardous Area Certification No | ||
Output Type 2-Wire | ||
Series XT | ||
Maximum AC Voltage 240V ac | ||
Shielding Unshielded | ||
Maximum Switching Frequency 150Hz | ||
Switching Current 400mA | ||
- COO (Country of Origin):
- CN

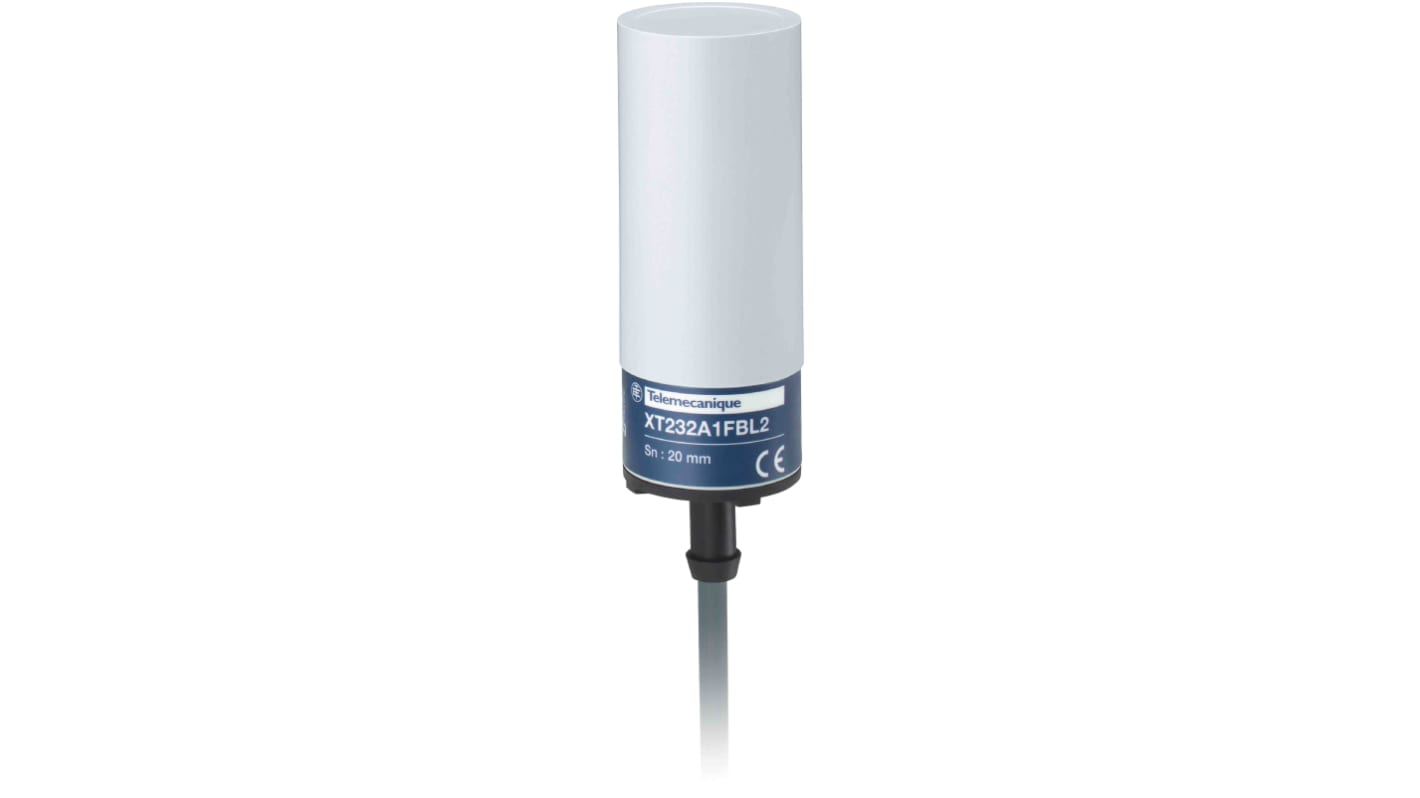

The Schneider Electric capacitive sensor. The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. For example, metals, minerals, wood, plastic, glass, cardboard, fluids, etc. It features a plastic plain case, diameter 32mm and a 2m long pre-cabled connection. Output state indication by a yellow LED.
Wire insulation material - PVC
IP degree of protection - IP67
Mercury free
