SICK Inductive Threaded Barrel Proximity Sensor, M8, 1.5 mm Detection, PNP NC, 10 → 30 V dc

RS Stock No.:: 209-3415
Mfr. Part No.:: IME08-1B5POZW2S
Brand:: SICK

SICK Inductive Threaded Barrel Proximity Sensor, M8, 1.5 mm Detection, PNP NC, 10 → 30 V dc

Subtotal (1 unit)*

£28.19

(exc. VAT)

£33.83

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship
Plus 2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£28.19

*price indicative

Enhance Your Sensor Setup

Proximity sensors perform best when paired with the right accessories. From mounting brackets to protective covers and connectors, our sensor accessories help you install, secure, and optimise your sensing solution. If you're browsing proximity sensors, don’t forget to explore our accessories range to complete your setup and ensure reliable, long-term performance.

Shop Now

RS Stock No.:: 209-3415
Mfr. Part No.:: IME08-1B5POZW2S
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Thread Size	M8
	Sensor Technology	Inductive
	Detection Range	1.5 mm
	Body Style	Threaded Barrel
	Digital Switching Output Type	PNP
	Output Function	NC
	Connection Type	Pre-Cabled
	Cable Length	2m
	Supply Voltage	10 → 30 V dc
	Length	52mm
	IP Rating	IP67
	Mounting Type	Flush
	Housing Material	Brass, Nickel-Plated
	Width	8mm
	Maximum DC Voltage	30V
	Diameter	8 mm
	Minimum Operating Temperature	-25°C
	Switching Frequency	4 kHz
	Series	IME
	Maximum Switching Frequency	4kHz
	Switching Current	200 mA
	Reverse Polarity Protection	Yes
	Short Circuit Overload Protection	Yes
	Standards Met	CE
	Maximum Operating Temperature	+75°C
	Shielding	Shielded

	Select all
	Brand SICK
	Thread Size M8
	Sensor Technology Inductive
	Detection Range 1.5 mm
	Body Style Threaded Barrel
	Digital Switching Output Type PNP
	Output Function NC
	Connection Type Pre-Cabled
	Cable Length 2m
	Supply Voltage 10 → 30 V dc
	Length 52mm
	IP Rating IP67
	Mounting Type Flush
	Housing Material Brass, Nickel-Plated
	Width 8mm
	Maximum DC Voltage 30V
	Diameter 8 mm
	Minimum Operating Temperature -25°C
	Switching Frequency 4 kHz
	Series IME
	Maximum Switching Frequency 4kHz
	Switching Current 200 mA
	Reverse Polarity Protection Yes
	Short Circuit Overload Protection Yes
	Standards Met CE
	Maximum Operating Temperature +75°C
	Shielding Shielded

Datasheet - IME08-1B5POZW2S

COO (Country of Origin):: HU

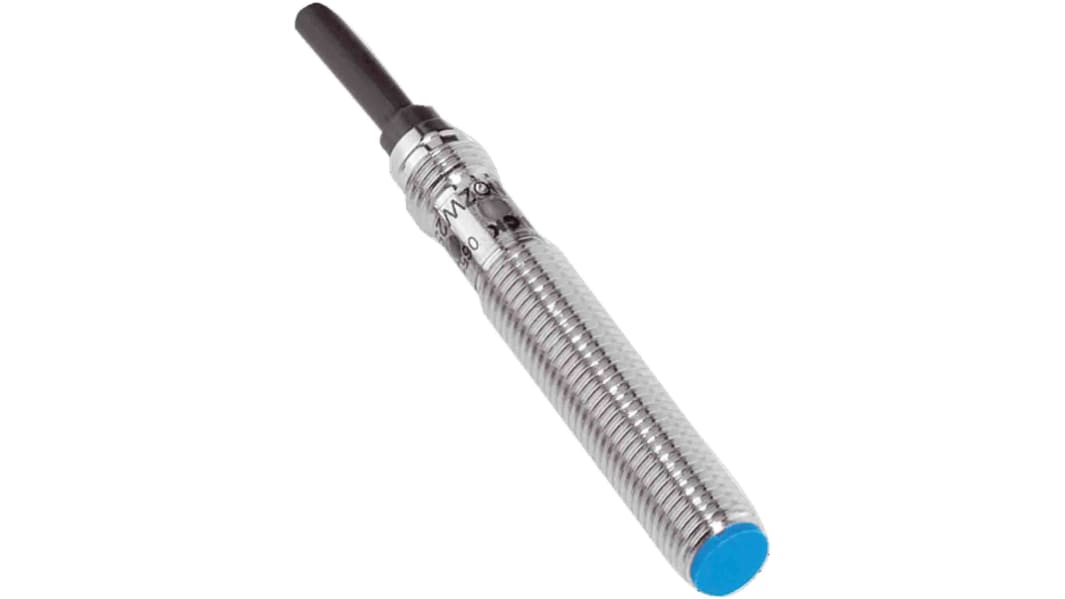

SICK IME Series Proximity Sensor, 1.5mm Detection Range, 2m Cable Length - IME08-1B5POZW2S

This proximity sensor is an inductive device designed for precise detection of metallic objects within a 1.5mm range. Featuring a robust M8 threaded barrel design, it has dimensions of 8mm in diameter and 52mm in length. The device is equipped with a 2m cable, making it ideal for various applications in the automation and electronics sectors. With an IP67 rating, it offers effective resistance against dust and water ingress, ensuring reliable operation in challenging environments.

Features & Benefits

• Compact M8 design facilitates easy integration into tight spaces
• Inductive technology allows accurate detection of metallic objects
• PNP output ensures compatibility with numerous control systems
• Flush mounting option enhances aesthetic minimalism in installations
• Robust brass nickel-plated housing enhances durability and longevity
• Wide supply voltage range (10 to 30V DC) accommodates diverse applications

Applications

• Used with machinery for automated component positioning
• Utilised in conveyor systems for object detection
• Effective in industrial automated processes to enhance reliability
• Applied in packaging lines for accurate sensing of metal parts

What are the operational temperature limits for this sensor?

The sensor can function optimally within a temperature range of -25°C to +75°C, making it suitable for various industrial environments.

How does the design of the casing contribute to its performance?

The brass nickel-plated housing not only provides exceptional durability but also ensures proper shielding against electromagnetic interference, thus maintaining performance efficacy.

What types of faults does this sensor help to prevent?

The built-in short circuit overload protection and reverse polarity protection mitigate risks of equipment damage, ensuring safe operation throughout its lifespan.

How frequently can this sensor switch signals?

It supports a maximum switching frequency of 4 kHz, which allows for fast, recurring sensing needed in high-speed applications.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
