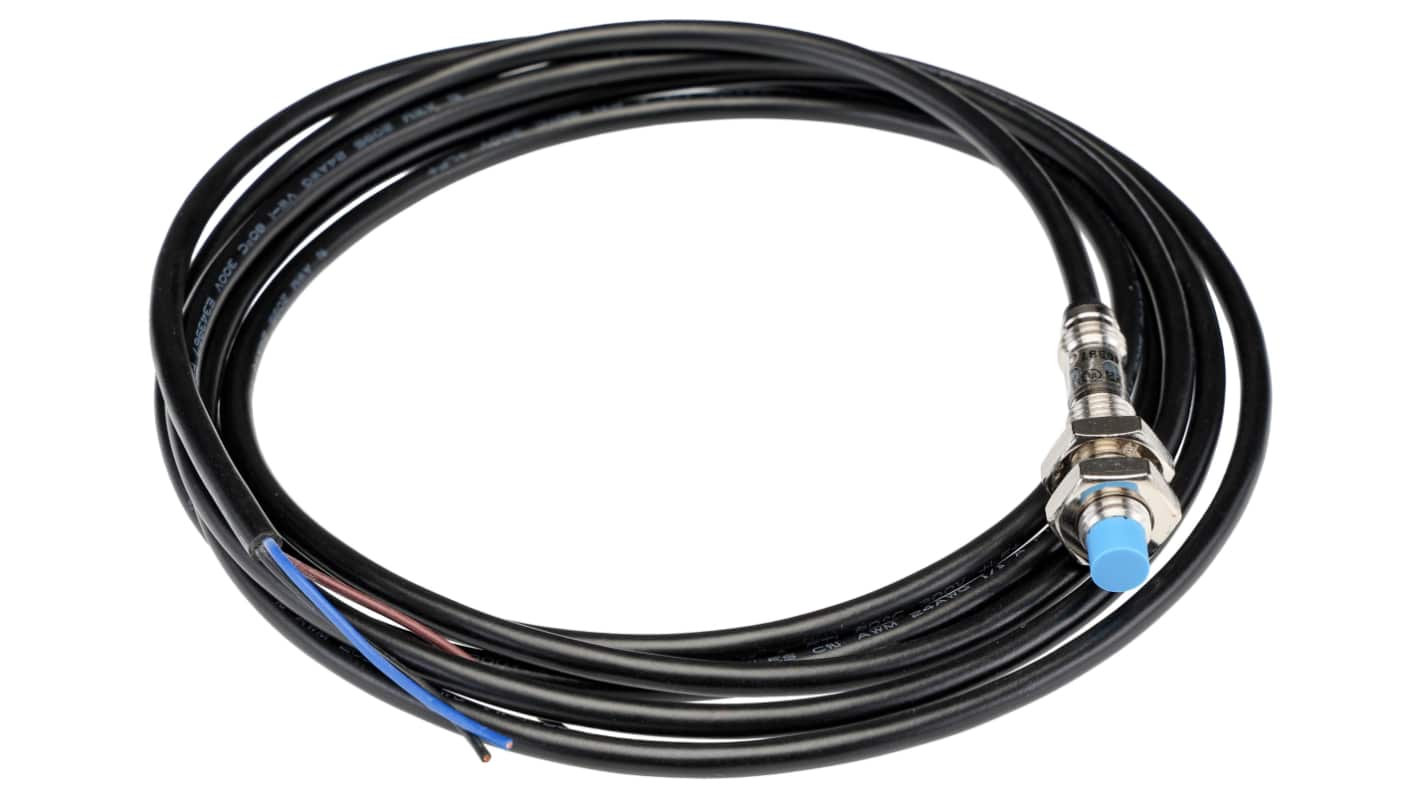

SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc

RS Stock No.:: 209-3398
Mfr. Part No.:: IME08-04NPSZW2K
Brand:: SICK

SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc

Subtotal (1 unit)*

£28.19

(exc. VAT)

£33.83

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

12 unit(s) ready to ship
Plus 10 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£28.19

*price indicative

Enhance Your Sensor Setup

Proximity sensors perform best when paired with the right accessories. From mounting brackets to protective covers and connectors, our sensor accessories help you install, secure, and optimise your sensing solution. If you're browsing proximity sensors, don’t forget to explore our accessories range to complete your setup and ensure reliable, long-term performance.

Shop Now

RS Stock No.:: 209-3398
Mfr. Part No.:: IME08-04NPSZW2K
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Thread Size	M8
	Sensor Technology	Inductive
	Detection Range	4 mm
	Body Style	Threaded Barrel
	Digital Switching Output Type	PNP
	Output Function	NO
	Cable Length	2m
	Connection Type	Pre-Cabled
	Supply Voltage	10 → 30 V dc
	IP Rating	IP67
	Length	43mm
	Mounting Type	Non-Flush
	Housing Material	Brass, Nickel-Plated
	Width	8mm
	Maximum DC Voltage	30V
	Diameter	8 mm
	Minimum Operating Temperature	-25°C
	Shielding	Unshielded
	Switching Frequency	4 kHz
	Reverse Polarity Protection	Yes
	Short Circuit Overload Protection	Yes
	Maximum Switching Frequency	4kHz
	Maximum Operating Temperature	+75°C
	Standards Met	CE
	Series	IME
	Switching Current	200 mA

	Select all
	Brand SICK
	Thread Size M8
	Sensor Technology Inductive
	Detection Range 4 mm
	Body Style Threaded Barrel
	Digital Switching Output Type PNP
	Output Function NO
	Cable Length 2m
	Connection Type Pre-Cabled
	Supply Voltage 10 → 30 V dc
	IP Rating IP67
	Length 43mm
	Mounting Type Non-Flush
	Housing Material Brass, Nickel-Plated
	Width 8mm
	Maximum DC Voltage 30V
	Diameter 8 mm
	Minimum Operating Temperature -25°C
	Shielding Unshielded
	Switching Frequency 4 kHz
	Reverse Polarity Protection Yes
	Short Circuit Overload Protection Yes
	Maximum Switching Frequency 4kHz
	Maximum Operating Temperature +75°C
	Standards Met CE
	Series IME
	Switching Current 200 mA

Datasheet - IME08-04NPSZW2K

COO (Country of Origin):: HU

SICK IME Series Proximity Sensor, 4mm Detection Range, M8 Thread size - IME08-04NPSZW2K

This proximity sensor is an inductive device designed for precise and efficient object detection in various applications. Featuring a robust brass threaded barrel design, it measures 8mm in diameter and has a compact length of 43mm. With a detection range of 4mm, this M8 proximity sensor operates effectively within a supply voltage range of 10 to 30V DC, making it suitable for diverse industrial environments.

Features & Benefits

• Provides a 4mm detection range sensor for reliable performance
• Utilises PNP output to facilitate easy integration
• IP67 rated sensor ensures protection against dust and water ingress
• Non-flush mounting sensor allows for versatile installation options
• Operates at temperatures from -25 °C to +75 °C for diverse applications
• Brass, nickel-plated body enhances durability and corrosion resistance

Applications

• Used for non-contact detection of metallic objects in production lines
• Ideal for automatic machinery to maintain operational efficiency
• Suitable for position sensing in assembly plants
• Effective in robotic for precise object detection
• Utilised in material handling systems to enhance workflow

What is the maximum switching frequency of this device?

The maximum switching frequency is 4 kHz, allowing for quick responses in dynamic environments.

How does this sensor handle adverse conditions in industrial settings?

The IP67 rating signifies it is highly resistant to dust and moisture, enabling reliable function in harsh conditions.

What wiring considerations should I take into account for installation?

The sensor comes with a pre-cabled connection, simplifying the installation process and ensuring proper electrical connections.

What kind of protection mechanisms are integrated within this device?

It features reverse polarity protection and short circuit overload protection, safeguarding it against misuse and enhancing longevity.

What factors determine the appropriate mounting method for this sensor?

The choice of mounting type is based on spatial constraints and specific application requirements, ensuring optimal performance during operation.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
