SICK Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NC, 10 → 30 V dc

RS Stock No.:: 209-3363
Mfr. Part No.:: IME08-02BPOZT0S
Brand:: SICK

SICK Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NC, 10 → 30 V dc

Subtotal (1 unit)*

£28.19

(exc. VAT)

£33.83

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

27 unit(s) ready to ship
Plus 12 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£28.19

*price indicative

Enhance Your Sensor Setup

Proximity sensors perform best when paired with the right accessories. From mounting brackets to protective covers and connectors, our sensor accessories help you install, secure, and optimise your sensing solution. If you're browsing proximity sensors, don’t forget to explore our accessories range to complete your setup and ensure reliable, long-term performance.

Shop Now

RS Stock No.:: 209-3363
Mfr. Part No.:: IME08-02BPOZT0S
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Thread Size	M8
	Sensor Technology	Inductive
	Body Style	Threaded Barrel
	Detection Range	2 mm
	Output Function	NC
	Digital Switching Output Type	PNP
	Connection Type	M8
	Supply Voltage	10 → 30 V dc
	IP Rating	IP67
	Length	50mm
	Mounting Type	Flush
	Housing Material	Brass, Nickel-Plated
	Width	8mm
	Maximum DC Voltage	30V
	Diameter	8 mm
	Minimum Operating Temperature	-25°C
	Switching Frequency	4 kHz
	Series	IME
	Standards Met	CE
	Switching Current	200 mA
	Short Circuit Overload Protection	Yes
	Maximum Operating Temperature	+75°C
	Maximum Switching Frequency	4kHz
	Shielding	Shielded
	Reverse Polarity Protection	Yes

	Select all
	Brand SICK
	Thread Size M8
	Sensor Technology Inductive
	Body Style Threaded Barrel
	Detection Range 2 mm
	Output Function NC
	Digital Switching Output Type PNP
	Connection Type M8
	Supply Voltage 10 → 30 V dc
	IP Rating IP67
	Length 50mm
	Mounting Type Flush
	Housing Material Brass, Nickel-Plated
	Width 8mm
	Maximum DC Voltage 30V
	Diameter 8 mm
	Minimum Operating Temperature -25°C
	Switching Frequency 4 kHz
	Series IME
	Standards Met CE
	Switching Current 200 mA
	Short Circuit Overload Protection Yes
	Maximum Operating Temperature +75°C
	Maximum Switching Frequency 4kHz
	Shielding Shielded
	Reverse Polarity Protection Yes

COO (Country of Origin):: HU

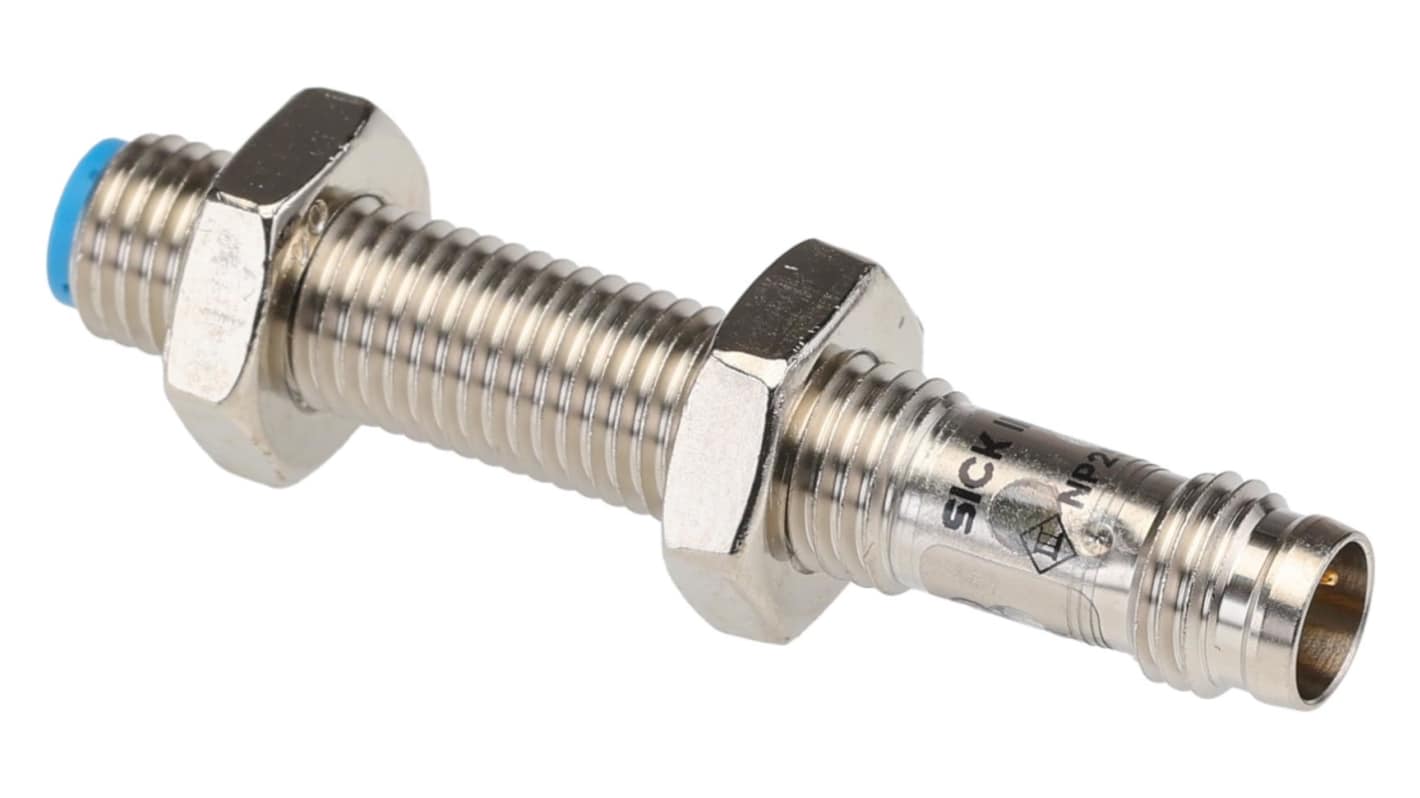

SICK IME Series Proximity Sensor, 2mm Detection Range, M8 Connection Type - IME08-02BPOZT0S

This inductive proximity sensor is designed for reliable automation applications. Featuring an M8 threaded barrel design, it provides a detection range of 2mm. With its compact dimensions of 50mm in length and 8mm in diameter, this brass housing proximity sensor meets industrial standards, ensuring durability and consistent performance in demanding environments.

Features & Benefits

• Operates within a voltage range of 10 to 30V DC
• Offers a PNP output for easy integration into control systems
• Shielded construction to reduce interference in sensitive installations
• Equipped with reverse polarity and short circuit overload protection
• Flush mount design enables seamless installation in tight spaces
• IP67 rated to ensure protection against dust and water ingress

Applications

• Used in precision positioning for automated machinery
• Ideal for detecting metallic objects in manufacturing processes
• Suitable for needing compact sensors in confined areas
• Utilised in assembly lines for proximity detection and control
• Effective in packaging machines to ensure accurate product placement

What is the significance of the IP67 rating for this sensor?

The IP67 rating ensures the sensor is fully protected against dust and can withstand immersion in water up to 1m for 30minutes, making it suitable for harsh environments where moisture or debris may be present.

How does the reverse polarity protection enhance the sensor's reliability?

The reverse polarity protection prevents damage if the power connections are mistakenly reversed, ensuring the sensor remains operational and reduces maintenance costs associated with component failure.

What are the advantages of the PNP output configuration?

The PNP output configuration allows for compatibility with a wider range of control systems and simplifies wiring for automation projects, enhancing installation efficiency.

What temperature ranges can this sensor operate within?

This sensor operates effectively in temperatures as low as -25°C and as high as +75°C, making it versatile for various thermal environments encountered in industrial applications.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
