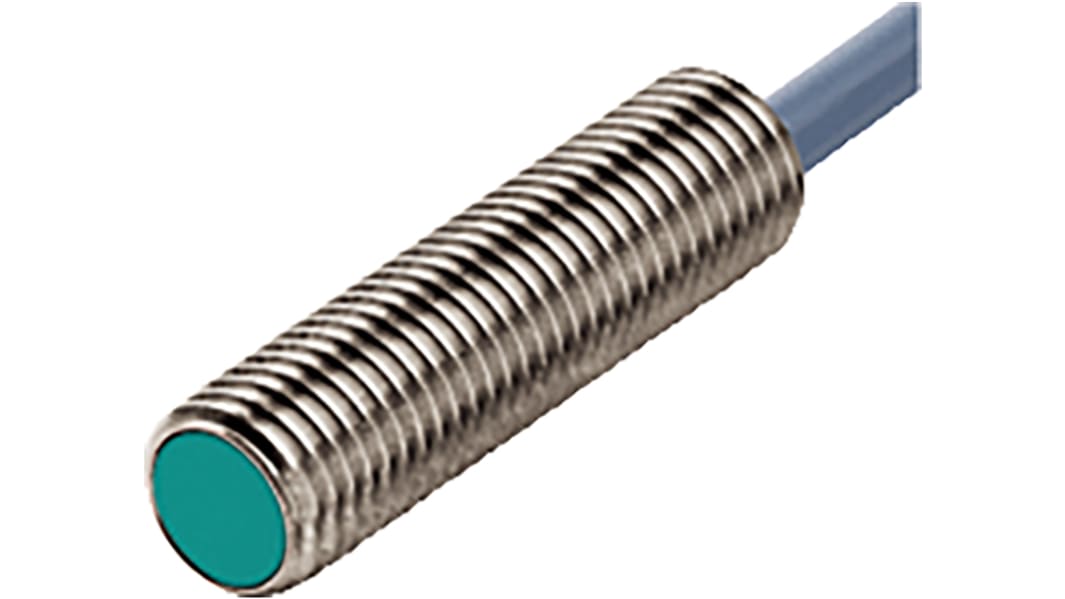

Pepperl + Fuchs NBB2-8GM40-E2 Threaded Barrel Inductive Proximity Sensor, M8 x 1 PNP 3V 2 mm 30 V dc 100mA
- RS Stock No.:
- 184-8832
- Mfr. Part No.:
- NBB2-8GM40-E2
- Brand:
- Pepperl + Fuchs
Subtotal (1 unit)*
£81.06
(exc. VAT)
£97.27
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £81.06 |
*price indicative
- RS Stock No.:
- 184-8832
- Mfr. Part No.:
- NBB2-8GM40-E2
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Product Type | Inductive Proximity Sensor | |
| Thread Size | M8 x 1 | |
| Body Style | Threaded Barrel | |
| IP Rating | IP67 | |
| Length | 40mm | |
| Mount Type | Flush | |
| Terminal Type | Cable PVC | |
| Housing Material | Brass | |
| Maximum Supply Voltage | 3V | |
| Width | 12mm | |
| Materials Detected | Mild Steel | |
| Minimum Operating Temperature | -40°C | |
| Maximum Detection | 2mm | |
| Maximum DC Voltage | 30V dc | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CCC Certified, CE Certified, cULus Listed, EN 60947-5-2, EN 60947-5-2/A1, IEC 60947-5-2, IEC 60947-5-2 AMD 1 | |
| Output Type | PNP | |
| Switching Current | 100mA | |
| Maximum Switching Frequency | 6kHz | |
| Depth | 12mm | |
| Shielding | Shielded | |
| Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Product Type Inductive Proximity Sensor | ||
Thread Size M8 x 1 | ||
Body Style Threaded Barrel | ||
IP Rating IP67 | ||
Length 40mm | ||
Mount Type Flush | ||
Terminal Type Cable PVC | ||
Housing Material Brass | ||
Maximum Supply Voltage 3V | ||
Width 12mm | ||
Materials Detected Mild Steel | ||
Minimum Operating Temperature -40°C | ||
Maximum Detection 2mm | ||
Maximum DC Voltage 30V dc | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CCC Certified, CE Certified, cULus Listed, EN 60947-5-2, EN 60947-5-2/A1, IEC 60947-5-2, IEC 60947-5-2 AMD 1 | ||
Output Type PNP | ||
Switching Current 100mA | ||
Maximum Switching Frequency 6kHz | ||
Depth 12mm | ||
Shielding Shielded | ||
2 mm flush
Increased operating distance
Extended temperature range -40 ... +85 °C
