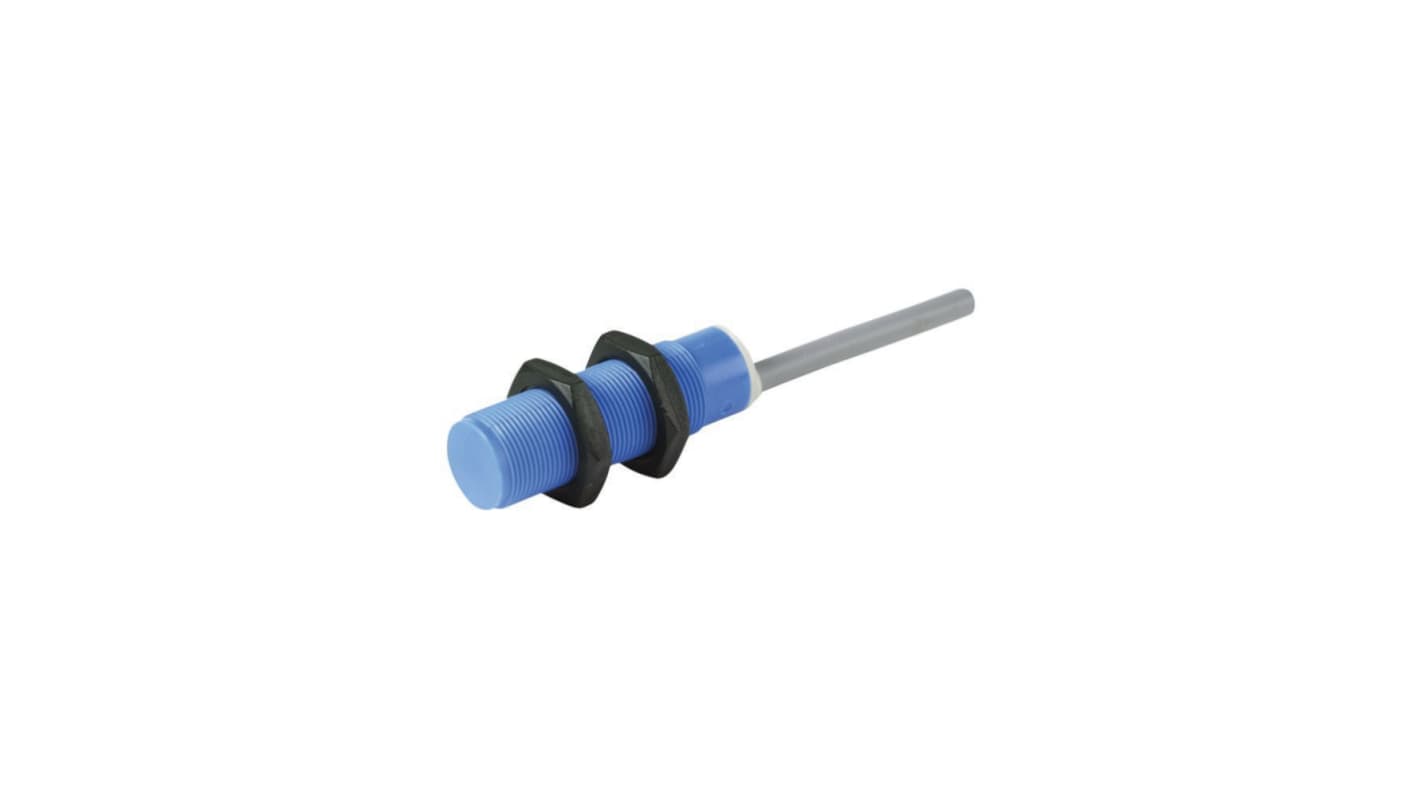

Eaton 134517 E53KAL18A2 Threaded Barrel Capacitive Proximity Sensor E53 8 mm, M18 2-Wire 300mA 20V 250 V ac 20 V dc
- RS Stock No.:
- 247-680
- Mfr. Part No.:
- 134517 E53KAL18A2
- Brand:
- Eaton
Subtotal (1 unit)*
£99.67
(exc. VAT)
£119.60
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £99.67 |
*price indicative
- RS Stock No.:
- 247-680
- Mfr. Part No.:
- 134517 E53KAL18A2
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Thread Size | M18 | |
| Product Type | Capacitive Proximity Sensor | |
| Body Style | Threaded Barrel | |
| IP Rating | IP65 | |
| Length | 80mm | |
| Terminal Type | Pre-Cabled | |
| Mount Type | Flush | |
| Housing Material | Insulated | |
| Maximum Supply Voltage | 20V | |
| Maximum DC Voltage | 20V dc | |
| Maximum Detection | 8mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | IEC/EN 60947-5-2 CE | |
| Switching Current | 300mA | |
| Output Type | 2-Wire | |
| Maximum AC Voltage | 250V ac | |
| Shielding | Shielded | |
| Series | E53 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Thread Size M18 | ||
Product Type Capacitive Proximity Sensor | ||
Body Style Threaded Barrel | ||
IP Rating IP65 | ||
Length 80mm | ||
Terminal Type Pre-Cabled | ||
Mount Type Flush | ||
Housing Material Insulated | ||
Maximum Supply Voltage 20V | ||
Maximum DC Voltage 20V dc | ||
Maximum Detection 8mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals IEC/EN 60947-5-2 CE | ||
Switching Current 300mA | ||
Output Type 2-Wire | ||
Maximum AC Voltage 250V ac | ||
Shielding Shielded | ||
Series E53 | ||
RoHS Status: Exempt
The Eaton capacitive proximity switch from The Eaton Moeller series E53 is designed to deliver reliable performance in various industrial applications. Featuring an 8mm rated switching distance, this device is perfect for sensing needs in environments where precision is paramount. Engineered for durability, it boasts an insulated housing and multiple degrees of protection, ensuring it performs under challenging conditions. The compact dimensions make it easy to integrate into existing systems, while the clear LED status indicator provides real-time feedback on operation. This switching solution is ideal for manufacturers seeking safety, efficiency, and reliability in their operations. With capabilities for high voltage applications and a robust design, this sensor meets diverse industry requirements effortlessly.
Provides a rated switching distance of 8mm for precise detection
Designed for high voltage applications, ensuring broad usability
Features an LED indicator for clear visibility of operational status
Constructed from durable insulated materials for enhanced longevity
Supports flush mounting for seamless integration into machinery
Designed to operate effectively in varying ambient temperatures
Includes a two-wire design for simplified electrical connections
Offers multiple certifications for compliance with industry standards
Compact size allows for versatile installation options
Lightweight structure ensures minimal impact on system loads
