Socket & See VIP150/SP200 Kit Voltage Indicator & Proving Unit Kit 3.5mA 50 → 690V, Kit Contents SP200 Proving
- RS Stock No.:
- 704-7750
- Mfr. Part No.:
- VIP150 / SP200
- Brand:
- Socket & See
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Calibration Options:
- Calibration Type:
- RSCAL
- RS Stock No.
- 704-8721
Each
£187.51
(exc. VAT)
£225.01
(inc. VAT)
- RS Stock No.:
- 704-7750
- Mfr. Part No.:
- VIP150 / SP200
- Brand:
- Socket & See
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Socket & See | |
| Test Current Rating | 3.5mA | |
| Output Voltage | 50 → 690V | |
| Display Type | LED | |
| Battery Type | AA | |
| Power Source | Battery | |
| Dimensions | 130 x 65 x 49mm | |
| Weight | 350g | |
| Height | 49mm | |
| Length | 130mm | |
| Maximum Operating Temperature | +40°C | |
| Minimum Operating Temperature | -10°C | |
| Width | 65mm | |
Select all | ||
|---|---|---|
Brand Socket & See | ||
Test Current Rating 3.5mA | ||
Output Voltage 50 → 690V | ||
Display Type LED | ||
Battery Type AA | ||
Power Source Battery | ||
Dimensions 130 x 65 x 49mm | ||
Weight 350g | ||
Height 49mm | ||
Length 130mm | ||
Maximum Operating Temperature +40°C | ||
Minimum Operating Temperature -10°C | ||
Width 65mm | ||
- COO (Country of Origin):
- CN

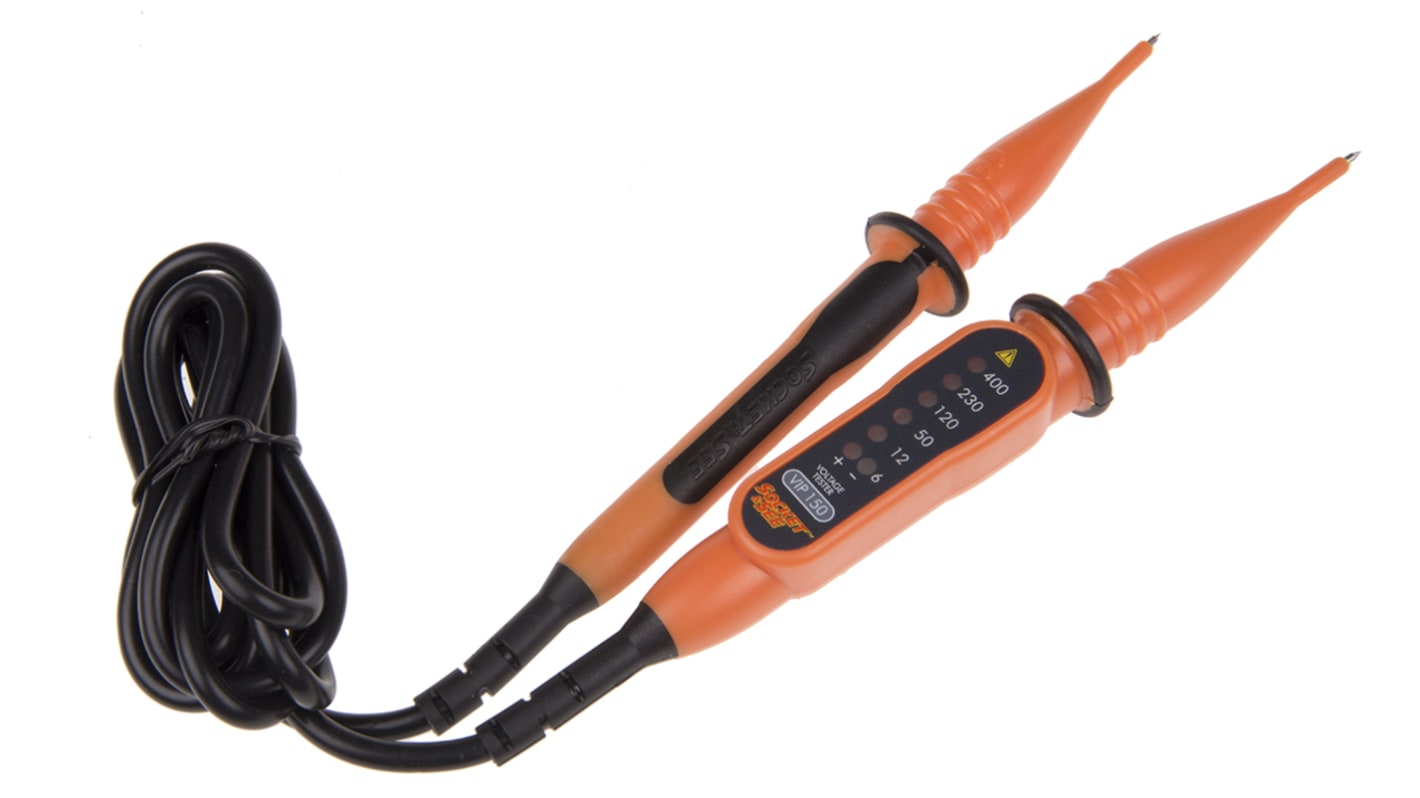

VIP150 Voltage Indicator & Proving Unit Safety Kit
Voltage level indicator & proving unit safety kit comprising
VIP150 LED voltage indicator
Voltage ranges 6-12-50-120-230-400V AC/DC
Conforms to HSE GS38 tip standards
Cable: Double insulated silicone 1.4 metres
EN61010 CAT IV 600V safety standard
Conforms to HSE GS38 tip standards
Cable: Double insulated silicone 1.4 metres
EN61010 CAT IV 600V safety standard
SP200 Proving unit
Essential to check the VIP150 for correct operation prior to working on electrical circuits
LED indication of step voltage being generated 50-100-230-400-690V
Magnetic base to clamp to control panels
Automatic test function to conserve batteries
LED indication of step voltage being generated 50-100-230-400-690V
Magnetic base to clamp to control panels
Automatic test function to conserve batteries
Supplied with
6 AA alkaline batteries & instructions
Voltage Level Indicators
A range of voltage testers each available in versions suitable for electronic or electrical applications.
