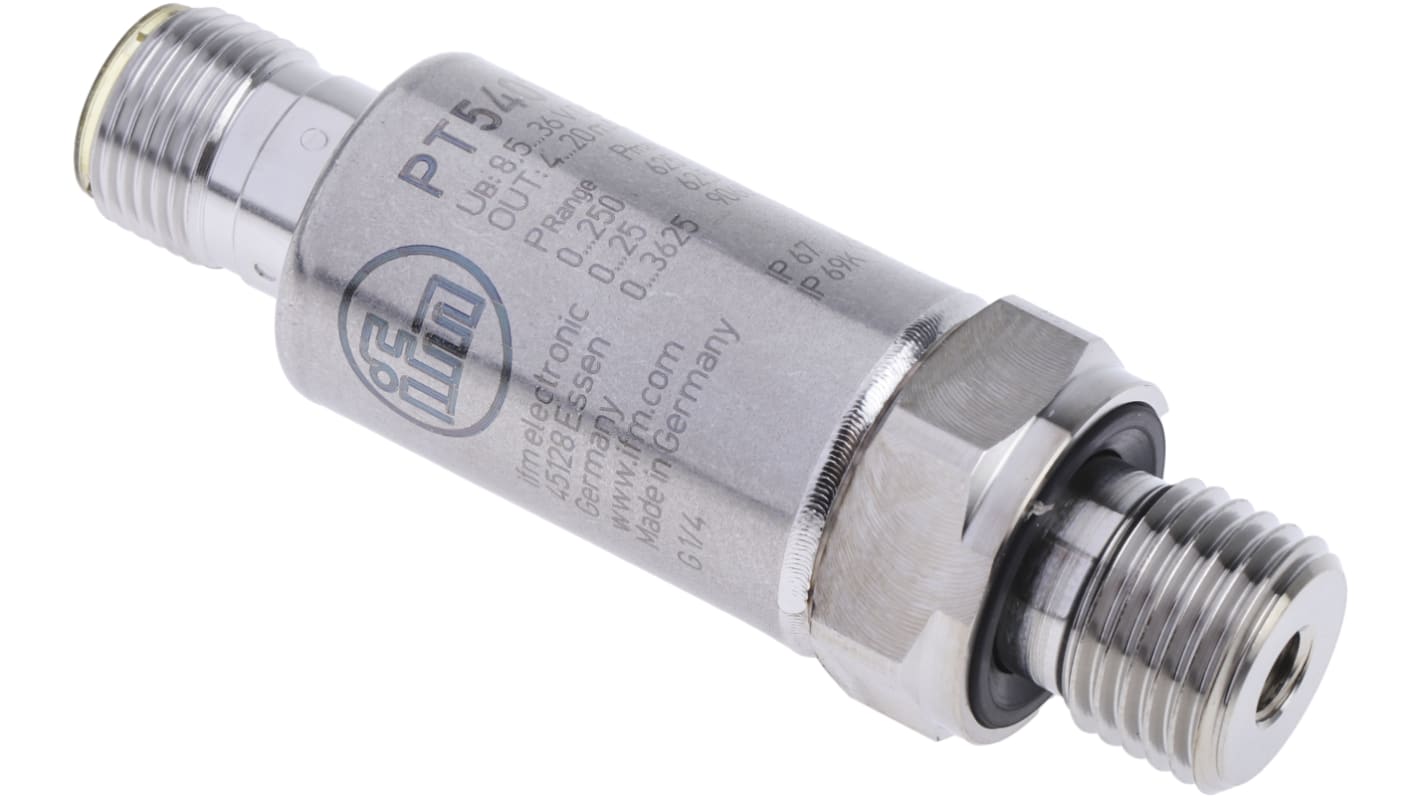

ifm electronic PT Series Pressure Sensor, Analogue Output 0 bar, Relative Reading 250 bar
- RS Stock No.:
- 835-3888
- Mfr. Part No.:
- PT5401
- Brand:
- ifm electronic
Subtotal (1 unit)*
£123.70
(exc. VAT)
£148.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 13 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £123.70 |
*price indicative
- RS Stock No.:
- 835-3888
- Mfr. Part No.:
- PT5401
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Pressure Reading Type | Relative | |
| Maximum Pressure Measurement | 250bar | |
| Product Type | Pressure Sensor | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±0.5 % | |
| Output Type | Analogue | |
| Media Measured | Liquid, Gas | |
| Minimum Supply Voltage | 8.5V | |
| Response Time | 1ms | |
| Series | PT | |
| Maximum Supply Voltage | 36V dc | |
| Standards/Approvals | DIN EN 60068-2-27, DIN EN 61000-6-3, DIN EN 60068-2-6, DIN EN 61000-6-2, EC 97/23/EC | |
| Housing Material | Stainless Steel | |
| IP Rating | IP69K, IP67 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Pressure Reading Type Relative | ||
Maximum Pressure Measurement 250bar | ||
Product Type Pressure Sensor | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±0.5 % | ||
Output Type Analogue | ||
Media Measured Liquid, Gas | ||
Minimum Supply Voltage 8.5V | ||
Response Time 1ms | ||
Series PT | ||
Maximum Supply Voltage 36V dc | ||
Standards/Approvals DIN EN 60068-2-27, DIN EN 61000-6-3, DIN EN 60068-2-6, DIN EN 61000-6-2, EC 97/23/EC | ||
Housing Material Stainless Steel | ||
IP Rating IP69K, IP67 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
- COO (Country of Origin):
- RO
