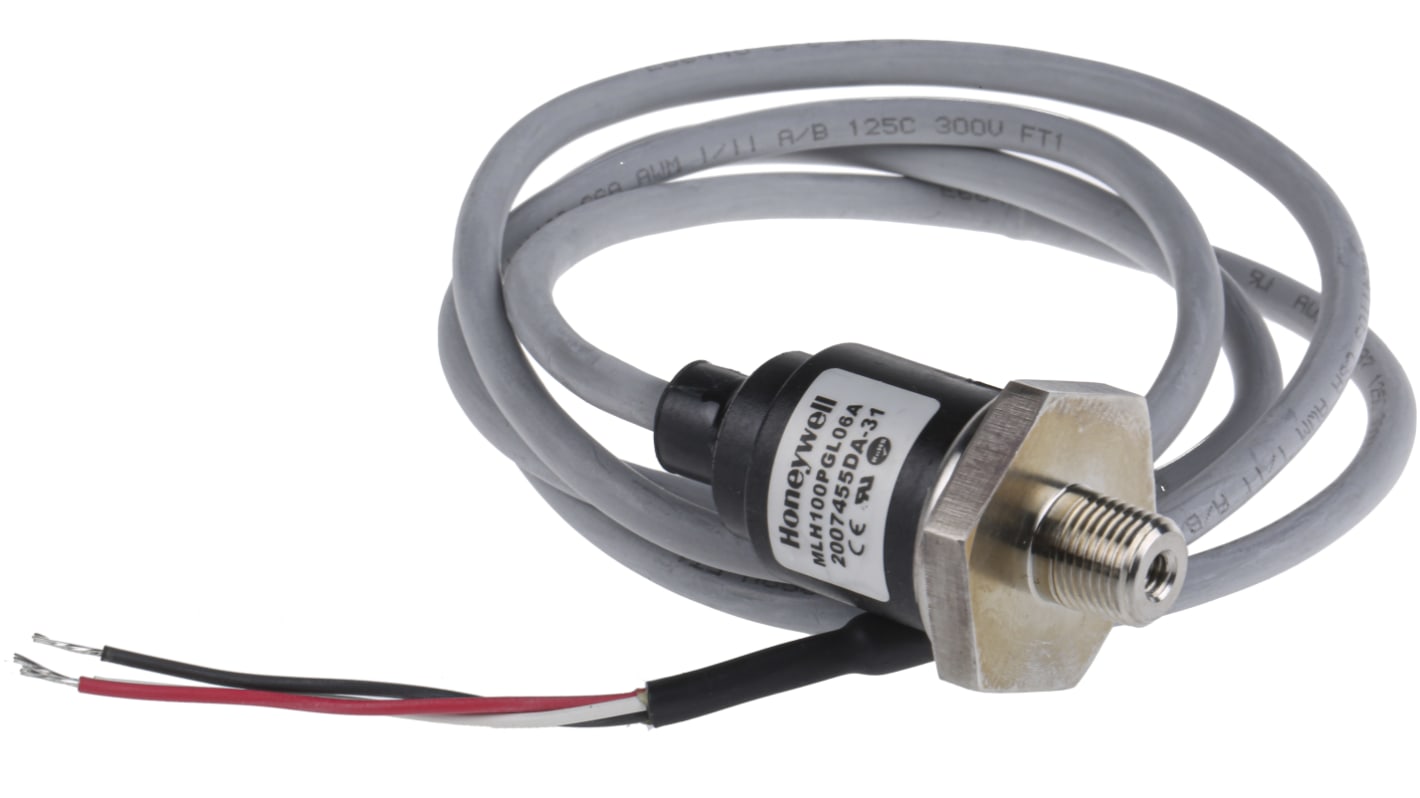

Honeywell Pressure Sensor, 0psi Min, 100psi Max, Amplified Output, Relative Reading
- RS Stock No.:
- 821-4014
- Mfr. Part No.:
- MLH100PGL06A
- Brand:
- Honeywell
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£243.67
(exc. VAT)
£292.40
(inc. VAT)
- RS Stock No.:
- 821-4014
- Mfr. Part No.:
- MLH100PGL06A
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Pressure Reading Type | Relative | |
| Minimum Pressure Reading | 0psi | |
| Maximum Pressure Reading | 100psi | |
| Accuracy | ±0.25 % | |
| Output Type | Amplified | |
| Media Measured | Fluid | |
| Process Connection | NPT 1/8 | |
| Analogue Output | 0.5 → 4.5 V | |
| Electrical Connection | Wire Lead | |
| Response Time | <2 ms | |
| Maximum Current | 8 mA | |
| Supply Voltage | 4.75 → 5.25 V dc | |
| Housing Material | Plastic | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading 0psi | ||
Maximum Pressure Reading 100psi | ||
Accuracy ±0.25 % | ||
Output Type Amplified | ||
Media Measured Fluid | ||
Process Connection NPT 1/8 | ||
Analogue Output 0.5 → 4.5 V | ||
Electrical Connection Wire Lead | ||
Response Time <2 ms | ||
Maximum Current 8 mA | ||
Supply Voltage 4.75 → 5.25 V dc | ||
Housing Material Plastic | ||
IP Rating IP65 | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- MX
MLH Series Pressure Sensor
The MLH series pressure sensor combines Application Specific Integrated Circuit (ASIC) technology with a media isolated, metal diaphragm design. This digitally compensated sensor is the ideal pressure sensing solution for demanding applications.
All metal wetted parts for use in wide variety of fluid applications
No internal elastomeric seals mean no o-ring compatibility issues
Amplified outputs eliminate cost of external amplifiers
Input reverse voltage protection guards against mis-wiring
Less than 2 ms response time provides accurate, high speed measurement
Material: Port - Stainless steel, Housing - Black plastic
No internal elastomeric seals mean no o-ring compatibility issues
Amplified outputs eliminate cost of external amplifiers
Input reverse voltage protection guards against mis-wiring
Less than 2 ms response time provides accurate, high speed measurement
Material: Port - Stainless steel, Housing - Black plastic
Approvals
UL Component Recognition for USA and Canada: File No. E258956
