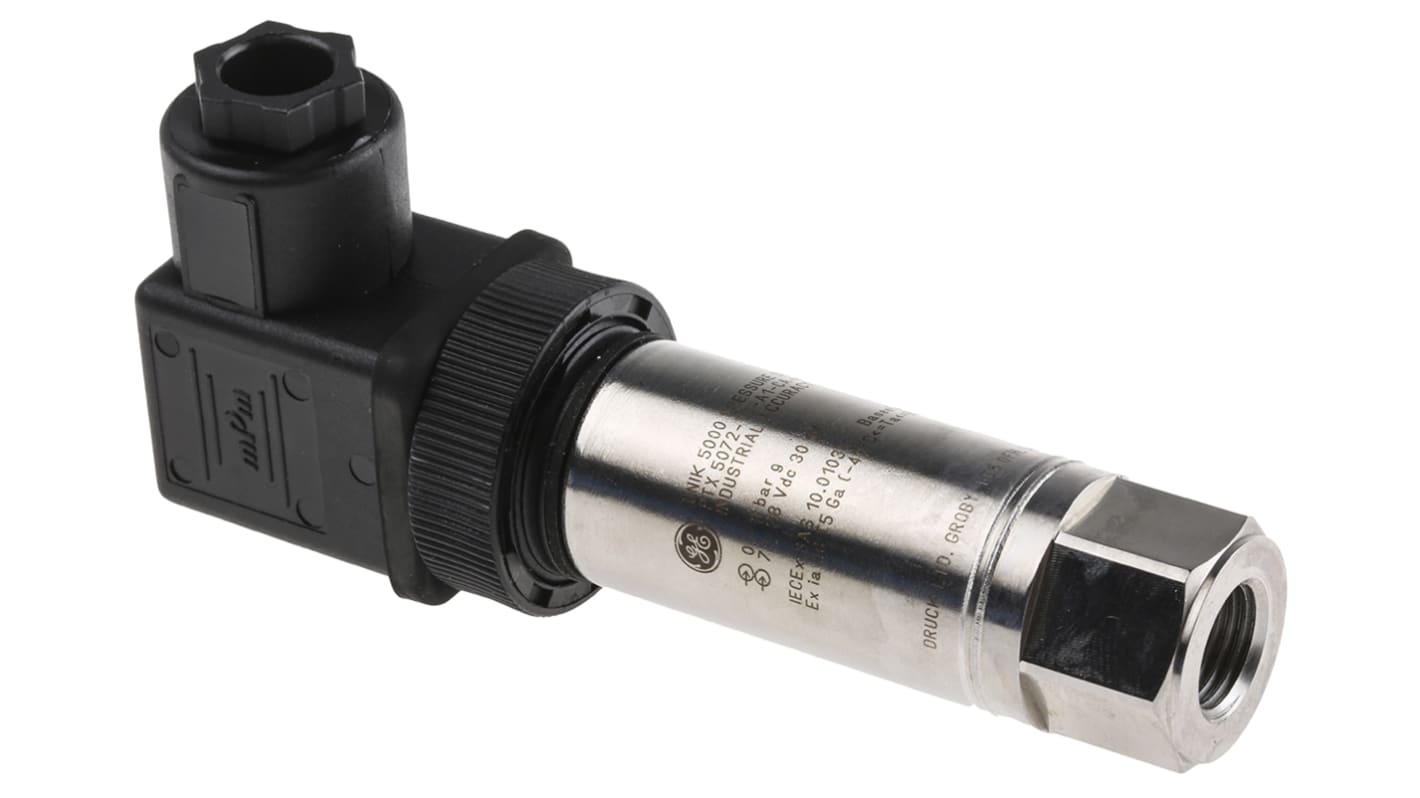

    Druck Pressure Sensor, 1bar Max, Analogue Output, Relative Reading

    RS Stock No.:
    746-3455
    Mfr. Part No.:
    X5072-TB-A1-CA-H1-PA 1.0 bar G
    Brand:
    Druck
    Druck
    View all Pressure Sensors
    10 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £226.00

    (exc. VAT)

    £271.20

    (inc. VAT)

    UnitsPer unit
    1 +£226.00

    Calibration Options:

    Druck Pressure Sensor, 1bar Max, Analogue Output, Gauge Reading
    Calibration Type:
    undefined
    RS Stock No.
    123-6671

    Price Each

    £311.00

    (exc. VAT)

    £373.20

    (inc. VAT)

    RS Stock No.:
    746-3455
    Mfr. Part No.:
    X5072-TB-A1-CA-H1-PA 1.0 bar G
    Brand:
    Druck

    Technical Reference


    Legislation and Compliance


    Product Details

    Druck UNIK 5000 Pressure Sensing Platform


    Introducing Druck's UNIK 5000 pressure sensing platform, a range of sensing components that are ideal for measurement and control solution. The pressure sensing platform allows users to seamlessly build up their own sensor which can cater to their precise requirements. The UNIK 5000 pressure sensing platform offers high performance, configurable solutions for pressure measurement with the series employing modular design and lean manufacturing techniques. Each component from the UNIK 5000 platform creates a custom-built sensor, made up of Druck's standard components.


    Features & Benefits


    • The standard components, when formed and built create a bespoke sensor the user. This means that users have the capability to fast, efficiently, and simply manufacture sensors according to their own requirements
    • Each UNIK 5000 is a bespoke pressure sensing solution
    • Field-proven silicon technology
    • Large ranges of mbar starting from 70 mbar (1 psi) to 700 bar (10,000 psi) - depending on the choice of components from the range
    • Comprised of a hardwearing and aesthetically pleasing stainless steel
    • Frequency response to 5 kHz
    • High overpressure capability
    • Multiple electrical & pressure connector options
    • Depending on the components used to create the pressure sensor the UNIK 5000 has an operating temperature that ranges from -55 to 125°C (-67 to 257°F)
    • mV, mA, Voltage and configurable voltage outputs
    • Accuracy to 0.04% Full Scale (FS) Best Straight Line (BSL)


    What is a pressure sensor and how does it work?


    A pressure sensor is a device that senses applied pressure of gases and liquids within a certain application, the output of the measurement is then converted into an electrical signal which reflects the amount of pressure applied.



    Druck PMP/PTX Transmitters & Transducers


    The PMP/PTX 1440 range of Transducers/Transmitters have been designed for the use with aggressive media found in many industrial applications.


    Specifications

    AttributeValue
    Pressure Reading TypeRelative
    Maximum Pressure Reading1bar
    Accuracy±0.2 %
    Output TypeAnalogue
    Media MeasuredFluid
    Process ConnectionG1/4
    Analogue Output4 → 20 mA
    Electrical ConnectionDIN 43650 Type A
    Response Time10 ms
    Maximum Current20 mA
    Supply Voltage7 → 28 V
    Housing MaterialStainless Steel
    Hazardous Area CertificationATEX
    IP RatingIP65
