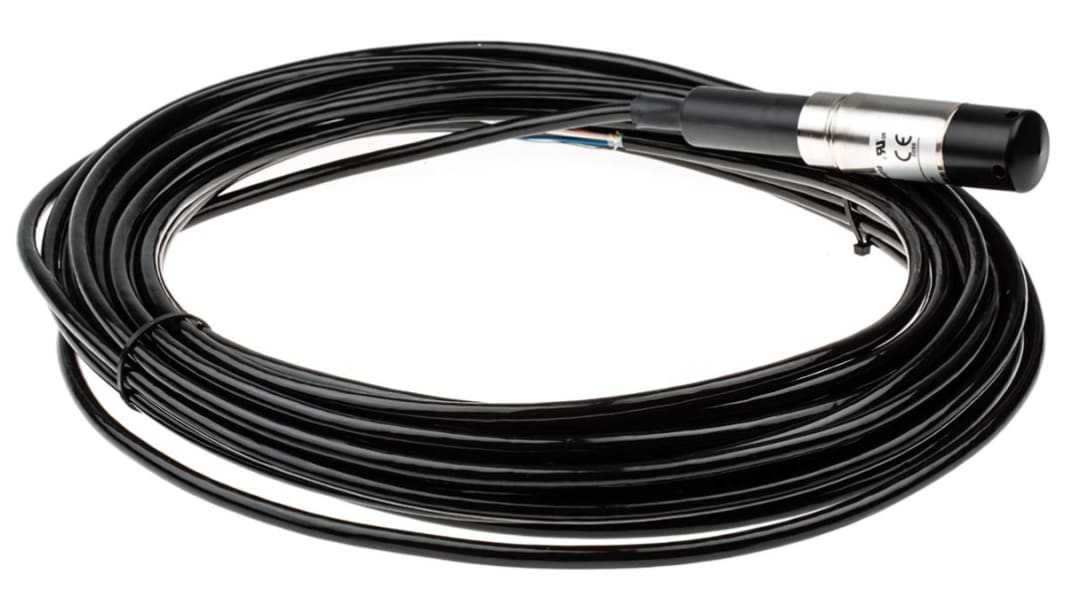

Gems Sensors Pressure Sensor, 0bar Min, 1bar Max, Amplified Output, Relative Reading
- RS Stock No.:
- 395-7117
- Mfr. Part No.:
- 2600BGA1019M3HA018
- Brand:
- Gems Sensors
View all Pressure Sensors
34 In stock - FREE next working day delivery available
Price Each
£746.60
(exc. VAT)
£895.92
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £746.60 |
| 5 + | £723.74 |
- RS Stock No.:
- 395-7117
- Mfr. Part No.:
- 2600BGA1019M3HA018
- Brand:
- Gems Sensors
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Submersible Pressure Based Level Transmitter
Water head pressure equals 100mbar/metre which can be measured using submersible pressure transmitters in atmospheric tanks
Stainless steel wetted parts
Zero/span tolerance; 0.1%
Maximum overpressure: 2 x FS
Electrical connection via moulded cable suitable for immersion
Dimensions: body diameter;27.3mm, body length; 100mm
Stainless steel wetted parts
Zero/span tolerance; 0.1%
Maximum overpressure: 2 x FS
Electrical connection via moulded cable suitable for immersion
Dimensions: body diameter;27.3mm, body length; 100mm
Specifications
| Attribute | Value |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 1bar |
| Accuracy | 0.25 % |
| Output Type | Amplified |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | Wire Lead |
| Response Time | 0.5 ms |
| Maximum Current | 20 mA |
| Supply Voltage | 7 → 35 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP68 |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -20°C |
