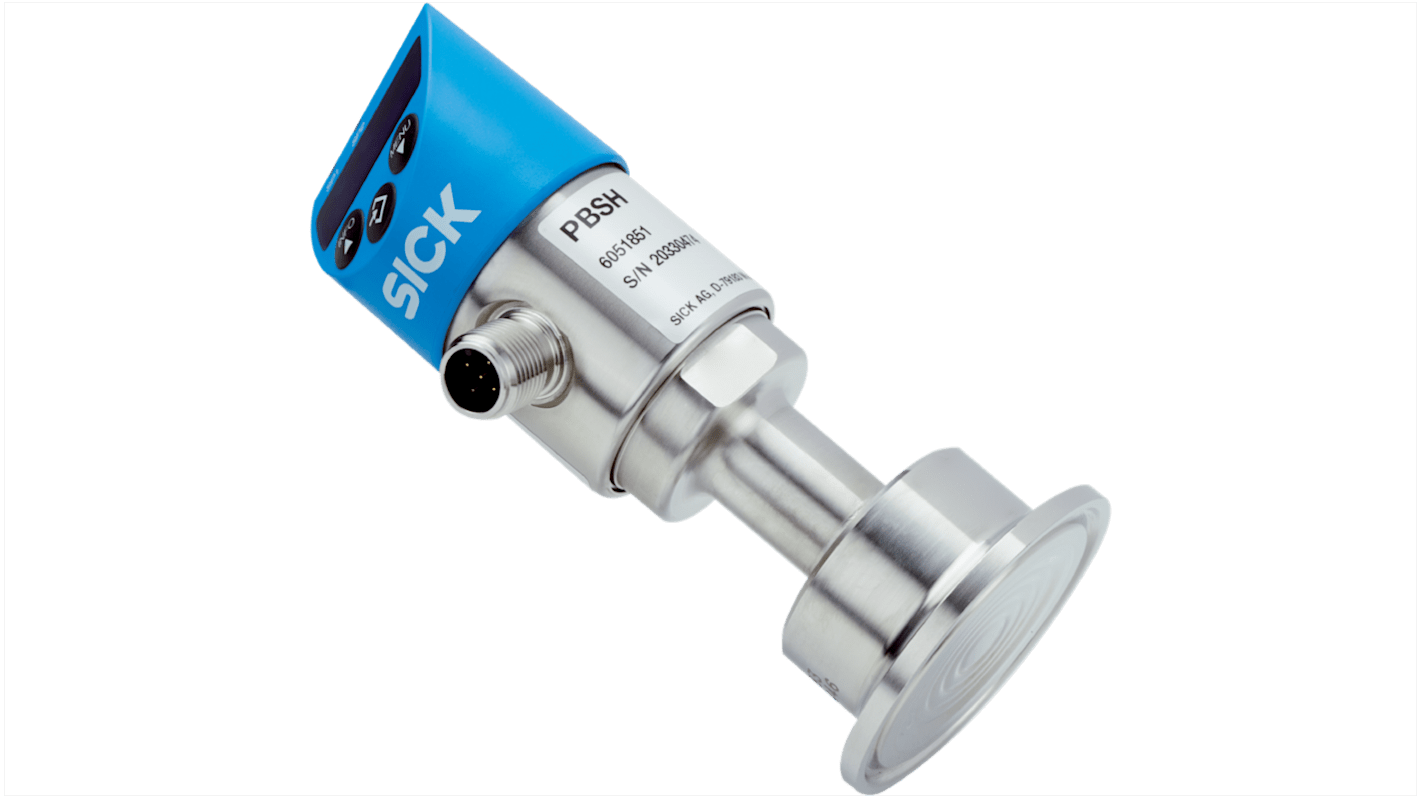

SICK PBSH Series Pressure Sensor, 0bar Min, 10bar Max, 2 x PNP Output, Gauge Reading
- RS Stock No.:
- 285-2202
- Mfr. Part No.:
- PBSH-RB010ST1S0D5A0Z
- Brand:
- SICK
Subtotal (1 unit)*
£514.62
(exc. VAT)
£617.54
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 23 December 2025
Units | Per unit |
|---|---|
| 1 + | £514.62 |
*price indicative
- RS Stock No.:
- 285-2202
- Mfr. Part No.:
- PBSH-RB010ST1S0D5A0Z
- Brand:
- SICK
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Pressure Reading Type | Gauge | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 10bar | |
| Accuracy | ± 1 % | |
| Output Type | 2 x PNP | |
| Media Measured | Gaseous, Liquid | |
| Process Connection | Tri Clamp | |
| Electrical Connection | M12 Round Connector | |
| Analogue Output | 4 → 20 mA | |
| Response Time | 3 ms | |
| Communication Protocol | IO-LINK | |
| Series | PBSH | |
| Supply Voltage | 15 → 35 V dc | |
| Housing Material | Buttons - TPE-E, Display Window - PC, Lower Body - Stainless Steel 304, Plastic Head - PC + ABS | |
| IP Rating | IP65, IP67 | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand SICK | ||
Pressure Reading Type Gauge | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 10bar | ||
Accuracy ± 1 % | ||
Output Type 2 x PNP | ||
Media Measured Gaseous, Liquid | ||
Process Connection Tri Clamp | ||
Electrical Connection M12 Round Connector | ||
Analogue Output 4 → 20 mA | ||
Response Time 3 ms | ||
Communication Protocol IO-LINK | ||
Series PBSH | ||
Supply Voltage 15 → 35 V dc | ||
Housing Material Buttons - TPE-E, Display Window - PC, Lower Body - Stainless Steel 304, Plastic Head - PC + ABS | ||
IP Rating IP65, IP67 | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Overview
At a glance
Wetted parts are made from stainless steel 1.4435
Individually programmable switching outputs and analogue output
Pressure values are indicated on the display
Unit of pressure value in the display can be switched
Output states are indicated separately via large LEDs
IO-Link
Your Benefit
Suitability for CIP and SIP ensures high system availability
Safe and easy setup with three large pushbuttons and legible, rotatable display
Rotatable housing for optimum cable routing
Wide range of available configurations enable customer-specific solutions
High reliability: Corrosion-resistant design of wetted parts and housing with IP 65 and IP 67 enclosure ratings
Ultimate system availability: IO-Link enables fast, reliable parameter setting when changing over products
Applications
Pressure measurement at the heat exchanger of a CIP system
Level measurement in storage tanks
Supply of compressed air in the blowing process
