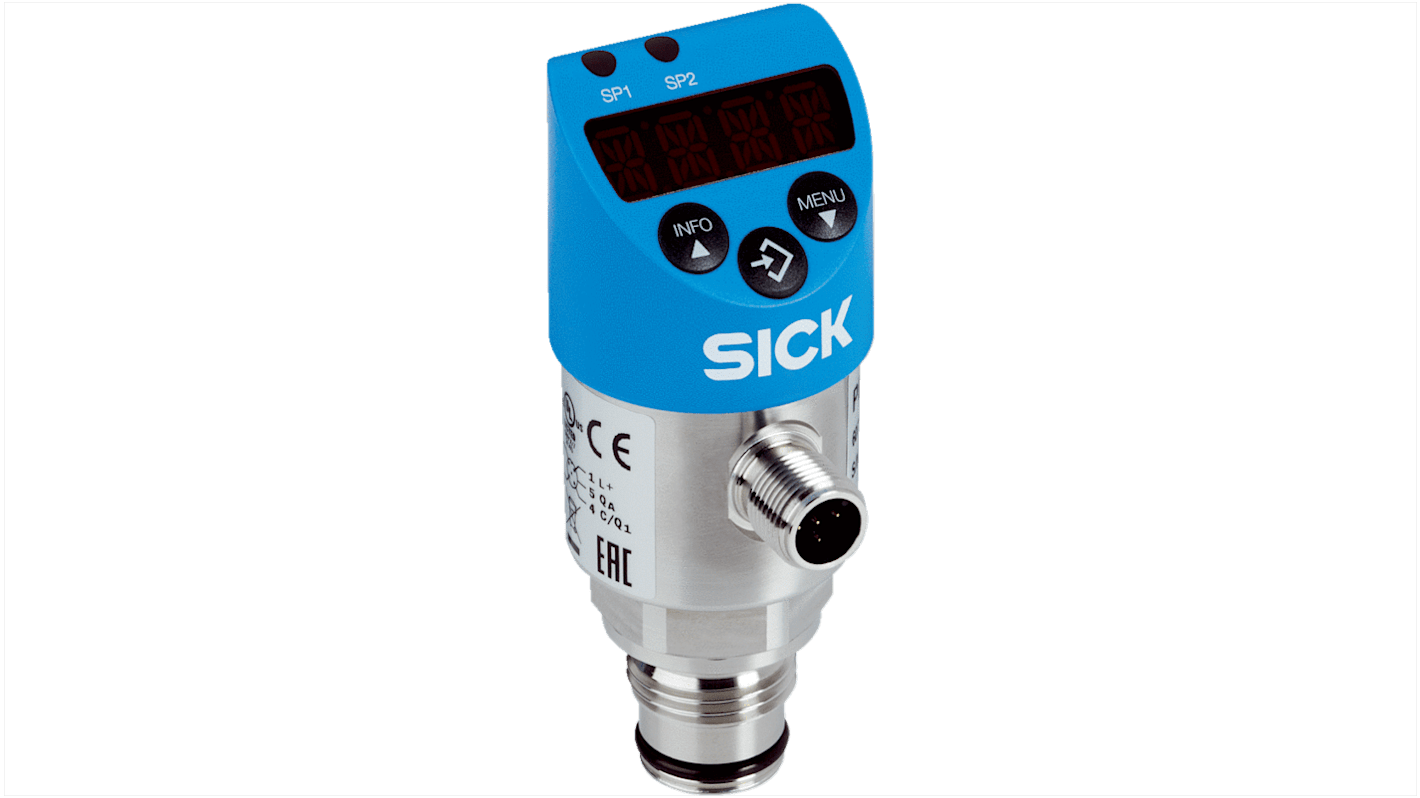

SICK PBS2 Series Pressure Switch, 0bar Min, 10bar Max, PNP/NPN Output, Gauge Reading

View all Pressure Sensors

Subtotal (1 unit)*

£373.67

(exc. VAT)

£448.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
  • Plus 999,999,998 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£373.67

*price indicative

RS Stock No.:
285-8911
Mfr. Part No.:
PBS2-RB010SF2FSDNMA0Z
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Pressure Reading Type

Gauge

Minimum Pressure Reading

0bar

Maximum Pressure Reading

10bar

Accuracy

= ± 0.5 %

Output Type

PNP/NPN

Media Measured

Gaseous, Liquid

Process Connection

G 1/2 B

Electrical Connection

M12 Connector

Response Time

5 ms

Series

PBS2

Supply Voltage

15 → 35 V dc

Housing Material

Buttons - TPE-E, Display Window - PC, Lower Body - Stainless Steel 304, Plastic Head - PC + ABS

Minimum Operating Temperature

-20°C

IP Rating

IP67

Maximum Operating Temperature

+80°C

COO (Country of Origin):
DE

Overview


The PBS plus is an electronic pressure switch, pressure transmitter and display in one and is available with up to two switching outputs, analogue output and IO-Link. It is set using three large pushbuttons and the display or via IO-Link. The housing can

The PBS plus is highly resistant to corrosion due to the fully-welded stainless steel membrane. Process data is transmitted to the control via IO-Link as measured values in bar. The diagnostic options make it possible for temperature values to be read out

At a glance


Switchable switching outputs (PNP/NPN) and analogue output (current/voltage)
Scalable analogue output (5:1 turn down)
High measurement accuracy: ± 0.5%
IO-Link for transmitting process data to the control as measured values in bar
Housing can be twisted i

Your Benefit


Low storage costs, short delivery times, low number of variants
Reduced installation time since housing and display can be rotated at two points
Rugged design: stainless steel measuring cell
No special conversion of IO-Link process data is required - it i

Applications


Measurement of system pressure in hydraulic systems
Control of the clamping pressure in CNC machines
Monitoring of the cylinder pressure in hydraulic presses
Control of the pressure in cooling and lubricant systems
Hydrostatic level measurement
Measuremen

Note


Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
