RS PRO Pressure Sensor, 0bar Min, 100bar Max, Voltage Output, Relative Reading

View all Pressure Sensors

Subtotal (1 unit)*

£78.66

(exc. VAT)

£94.39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£78.66

*price indicative

RS Stock No.:
272-6948
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Pressure Reading Type

Relative

Minimum Pressure Reading

0bar

Maximum Pressure Reading

100bar

Accuracy

±0.15%

Output Type

Voltage

Media Measured

Air, Water, Mixed Oil, Fluids

Electrical Connection

Wire Lead

Response Time

<1ms

Supply Voltage

2.0mA dc

Housing Material

Stainless Steel

Maximum Operating Temperature

+125℃

Minimum Operating Temperature

-40℃

Mounting Type

Panel Mount

COO (Country of Origin):
CN

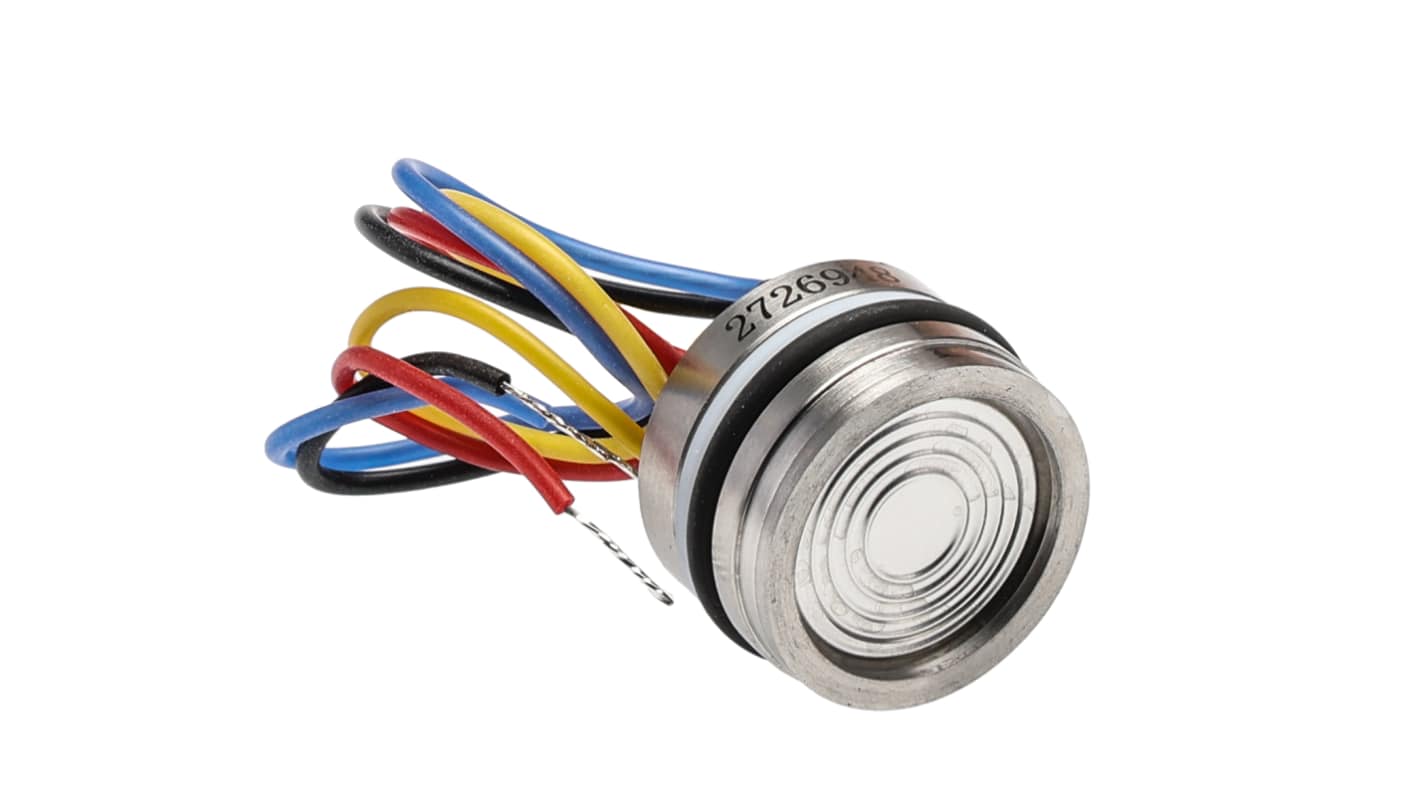

RS PRO 19mm Piezoresistant Pressure Sensor, 0 – 100 bar


A highly stable piezoresistant isolated pressure sensor or pressure transmitter. Utilizing silicon for the measurement or pressure within air, water, mixed oil or other fluids. The piezoresistant sensor is suitable for a wide range of applications including pressure control and calibration, industrial measurement, process control and cooling systems including air conditioning.

Compact at only 19mm the sealed gauge pressure sensor is well suited to installation in tight areas where space is limited. The Stainless Steel housing and diaphragm offers excellent corrosion and chemical resistance and a FKM O-ring provides a tight reliable, oil resistant seal.

Features and Benefits


19mm Sealed Gauge pressure sensor

Pressure range of 0 - 100bar

Isolated construction

Compensated

Stainless Steel 316L housing and diaphragm

FKM compounds O ring

100 mm silicone flexible wires

Power supply ≤2.0mA DC

Input impedance 2.5 - 8kΩ

Output impedance 3.5k - 6kΩ

Insulation resistor 100MΩ@100V DC

Weight of 20g

Suitable Medium


Air

Water

Mixed oil

Fluids compatible with wetted parts
