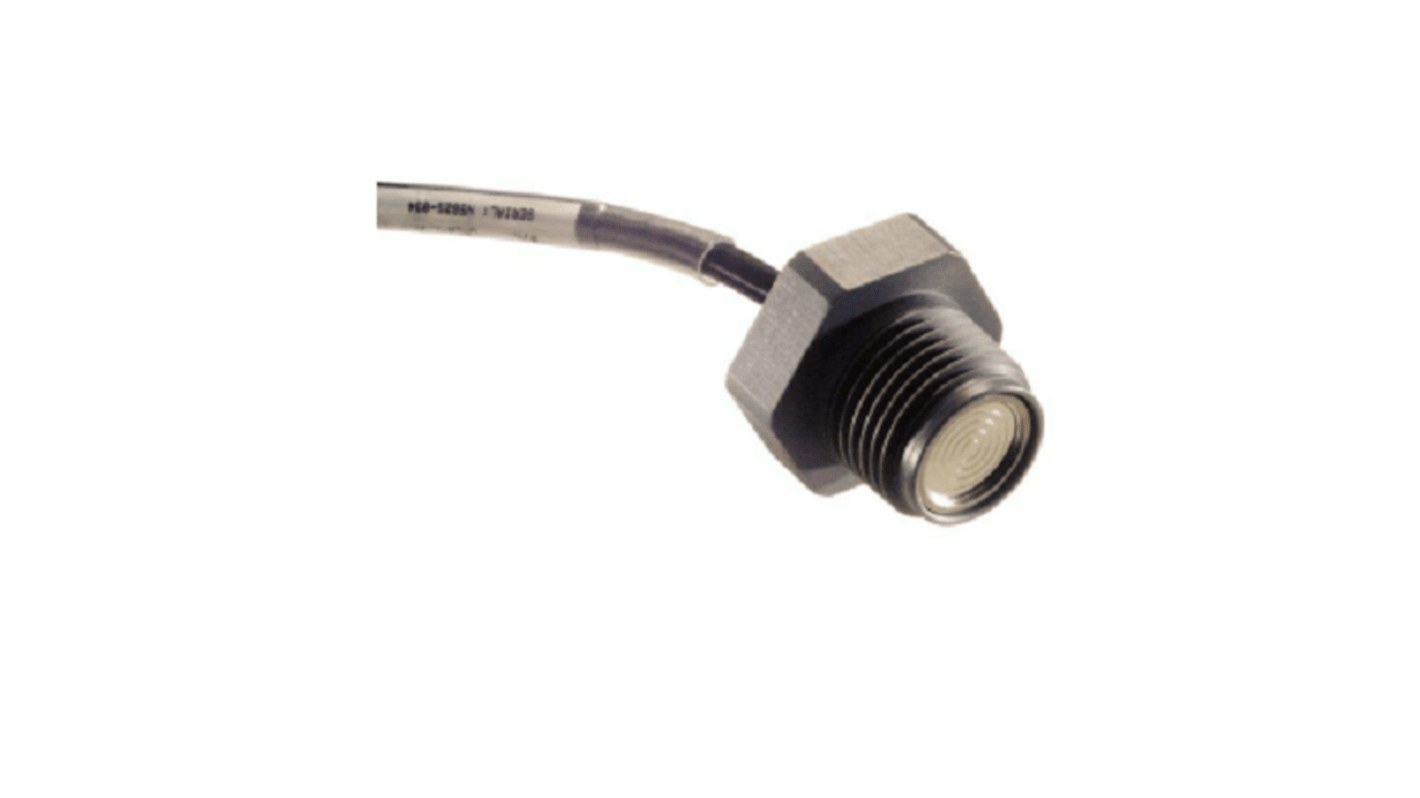

TE Connectivity LM31-00000F Series Gauge Pressure Sensor 5 psi 5 psi, Gauge Reading
- RS Stock No.:
- 235-5208
- Mfr. Part No.:
- LM31-00000F-005PG
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 235-5208
- Mfr. Part No.:
- LM31-00000F-005PG
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Gauge Pressure Sensor | |
| Pressure Reading Type | Gauge | |
| Maximum Pressure Measurement | 5psi | |
| Minimum Pressure Measurement | 5psi | |
| Accuracy | ±1 % | |
| Media Measured | Gas, Liquid | |
| Terminal Type | Cable | |
| Minimum Supply Voltage | 5V | |
| Maximum Supply Voltage | 5V | |
| Series | LM31-00000F | |
| Standards/Approvals | No | |
| Housing Material | 316L Stainless Steel, Polyvinyl Chloride | |
| Minimum Operating Temperature | -20°C | |
| Mount Type | Screw | |
| Maximum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Gauge Pressure Sensor | ||
Pressure Reading Type Gauge | ||
Maximum Pressure Measurement 5psi | ||
Minimum Pressure Measurement 5psi | ||
Accuracy ±1 % | ||
Media Measured Gas, Liquid | ||
Terminal Type Cable | ||
Minimum Supply Voltage 5V | ||
Maximum Supply Voltage 5V | ||
Series LM31-00000F | ||
Standards/Approvals No | ||
Housing Material 316L Stainless Steel, Polyvinyl Chloride | ||
Minimum Operating Temperature -20°C | ||
Mount Type Screw | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- CN
The TE Connectivity LM series liquid level sensor incorporates stainless steel and plastic isolation suitable for level sensing in water and other liquids. The LM uses a patented low-cost stainless-steel sensor in a PVC plastic fitting to measure liquid level based on the specific gravity of the liquid and the height of the tank or container. The modular design is adaptable to an infinite number of plastic port variations for OEM applications. With high performance in a small form factor, the LM Series enables the miniaturization of high accuracy pressure systems. The standard output is 0.5 to 4.5V ratiometric with a 5V supply.
Threaded process fitting
-20 °C to +70 °C operating temperature
±1% Accuracy
±3.0% Total error band
Solid state reliability
Variety of cable lengths
