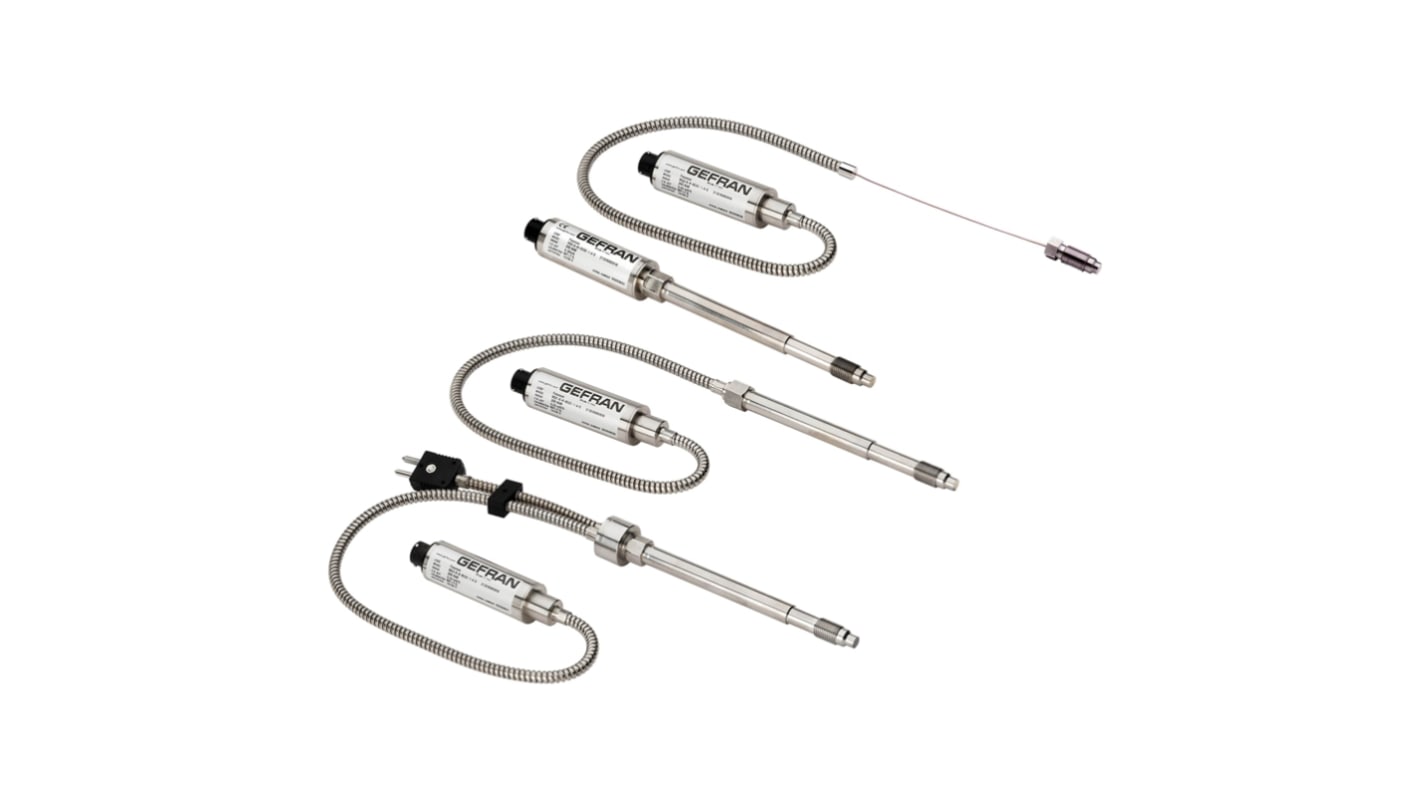

Gefran MN Series Pressure Sensor, Voltage Output 0 bar, Gauge Reading 16 bar
- RS Stock No.:
- 226-8985
- Mfr. Part No.:
- F065703/ MN3-6-H-B05C-1-0-L 2130X000X00
- Brand:
- Gefran
Subtotal (1 unit)*
£1,136.74
(exc. VAT)
£1,364.09
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,136.74 |
*price indicative
- RS Stock No.:
- 226-8985
- Mfr. Part No.:
- F065703/ MN3-6-H-B05C-1-0-L 2130X000X00
- Brand:
- Gefran
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Gefran | |
| Maximum Pressure Measurement | 16bar | |
| Product Type | Pressure Sensor | |
| Pressure Reading Type | Gauge | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | 0.5 %FSO | |
| Output Type | Voltage | |
| Media Measured | Fluid | |
| Minimum Supply Voltage | 5V | |
| Response Time | 1ms | |
| Series | MN | |
| Maximum Supply Voltage | 10V | |
| Standards/Approvals | CE | |
| Minimum Operating Temperature | -30°C | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | 400°C | |
| Select all | ||
|---|---|---|
Brand Gefran | ||
Maximum Pressure Measurement 16bar | ||
Product Type Pressure Sensor | ||
Pressure Reading Type Gauge | ||
Minimum Pressure Measurement 0bar | ||
Accuracy 0.5 %FSO | ||
Output Type Voltage | ||
Media Measured Fluid | ||
Minimum Supply Voltage 5V | ||
Response Time 1ms | ||
Series MN | ||
Maximum Supply Voltage 10V | ||
Standards/Approvals CE | ||
Minimum Operating Temperature -30°C | ||
IP Rating IP65 | ||
Maximum Operating Temperature 400°C | ||
The MN series of Gefran, are pressure transducers for using in High temperature environment. The main characteristic of this series is the capability to read temperature of the media up to 400°C. The constructive principle is based on the hydraulic trasmission of the pressure. The phisical measure is transformed in a electrical measure by means the strain-gauge technology.
Accuracy up to 0.25%
Working temperature Up to 752 (F), 400 (°C)
Mercury-Filled
Max Pressure (Gauge) 500bar
CE Marked
