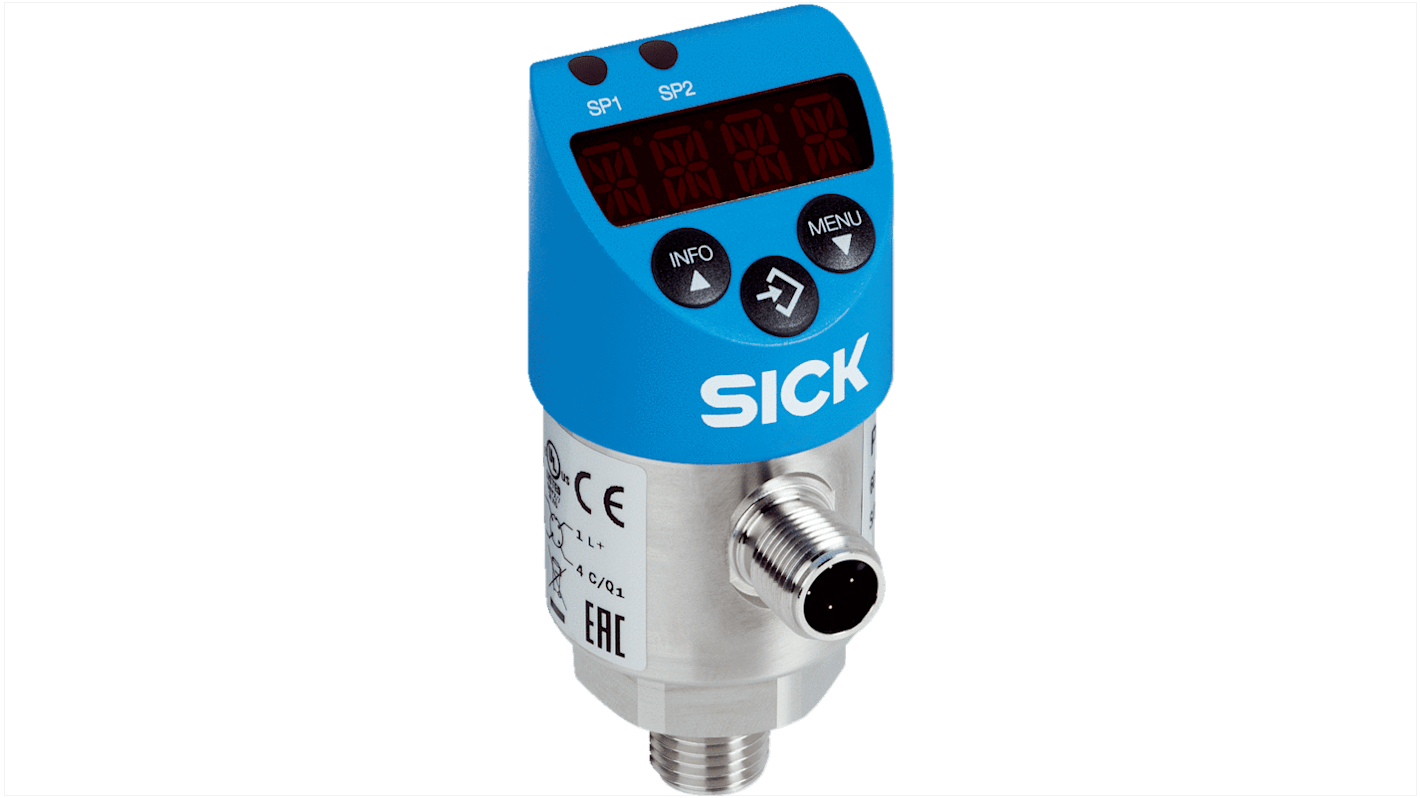

SICK PBS Plus Series Pressure Sensor, 0bar Min, 10bar Max, 2x PNP/NPN-NO/NC + Current/Voltage Output, Relative Reading
- RS Stock No.:
- 213-3323
- Mfr. Part No.:
- PBS2-RB010SG1SSDQ5A0Z
- Brand:
- SICK
Subtotal (1 unit)*
£336.78
(exc. VAT)
£404.14
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 17 November 2025
Units | Per unit |
---|---|
1 + | £336.78 |
*price indicative
- RS Stock No.:
- 213-3323
- Mfr. Part No.:
- PBS2-RB010SG1SSDQ5A0Z
- Brand:
- SICK
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Pressure Reading Type | Relative | |
Minimum Pressure Reading | 0bar | |
Maximum Pressure Reading | 10bar | |
Accuracy | <±0.5 % | |
Output Type | 2x PNP/NPN-NO/NC + Current/Voltage | |
Media Measured | Air, Gas, Hydraulic Fluid, Liquid, Oil, Water | |
Process Connection | G1/4 | |
Electrical Connection | M12 Connector | |
Analogue Output | 4 → 20 mA, 0 → 10 V | |
Response Time | 5 ms | |
Communication Protocol | IO-LINK | |
Maximum Current | 600 mA | |
Series | PBS Plus | |
Supply Voltage | 15 - 35 V | |
Interface | IO-Link | |
Housing Material | Stainless Steel/Plastic | |
IP Rating | IP67 | |
Minimum Operating Temperature | -20°C | |
Mounting Type | Threaded | |
Maximum Operating Temperature | +85°C | |
Select all | ||
---|---|---|
Brand SICK | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 10bar | ||
Accuracy <±0.5 % | ||
Output Type 2x PNP/NPN-NO/NC + Current/Voltage | ||
Media Measured Air, Gas, Hydraulic Fluid, Liquid, Oil, Water | ||
Process Connection G1/4 | ||
Electrical Connection M12 Connector | ||
Analogue Output 4 → 20 mA, 0 → 10 V | ||
Response Time 5 ms | ||
Communication Protocol IO-LINK | ||
Maximum Current 600 mA | ||
Series PBS Plus | ||
Supply Voltage 15 - 35 V | ||
Interface IO-Link | ||
Housing Material Stainless Steel/Plastic | ||
IP Rating IP67 | ||
Minimum Operating Temperature -20°C | ||
Mounting Type Threaded | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- DE
Overview
At a glance
Scalable analog output (5:1 turn down)
High measurement accuracy: ± 0.5%
IO-Link for transmitting process data to the control as measured values in bar
Housing can be twisted in two places (process connection/display) and display can be rotated by 180°
Common process connections, also with flush-mounted membrane
Your Benefit
Reduced installation time since housing and display can be rotated at two points
Rugged design: stainless steel measuring cell
No special conversion of IO-Link process data is required - it is shown automatically as measured values in bar
Extensive diagnosis options via IO-Link (e.g. pressure peaks, ambient temperature) deliver data for predictive maintenance
Economic solution for hydrostatic level measurement (thanks to high accuracy and small measuring ranges)
Applications
Control of the clamping pressure in CNC machines
Monitoring of the cylinder pressure in hydraulic presses
Control of the pressure in cooling and lubricant systems
Hydrostatic level measurement
Measurement of system pressure in PET bottle production
Note
