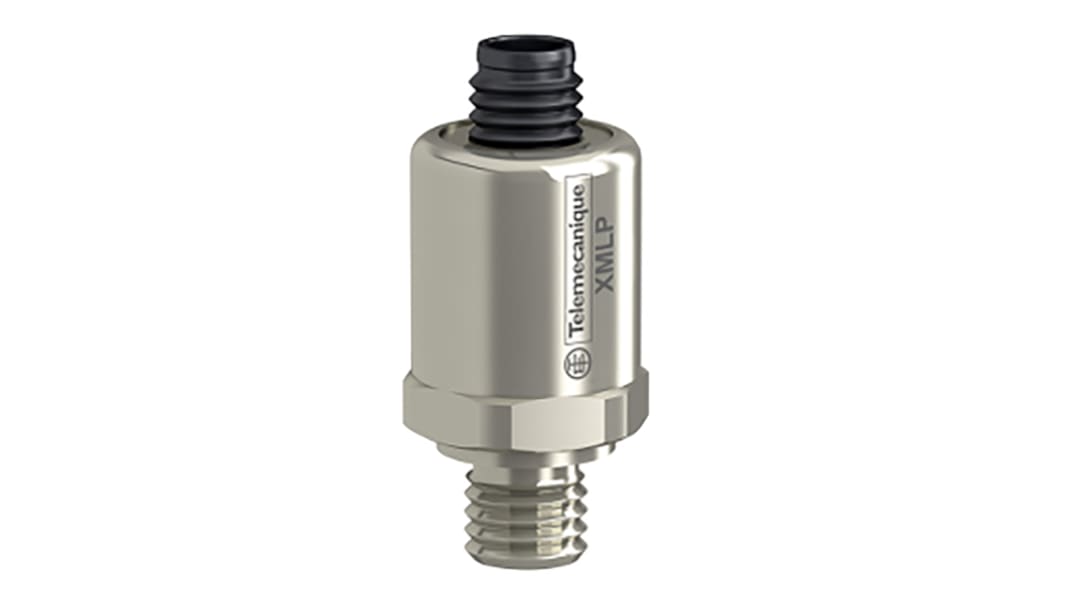

Telemecanique Sensors Pressure Switch, 0bar Min, 4bar Max, Analogue Output
- RS Stock No.:
- 177-8862
- Mfr. Part No.:
- XMLP004GD21F
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£162.31
(exc. VAT)
£194.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 999,999,997 unit(s) shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.31 |
*price indicative
- RS Stock No.:
- 177-8862
- Mfr. Part No.:
- XMLP004GD21F
- Brand:
- Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 4bar | |
| Accuracy | ±0.5 % | |
| Output Type | Analogue | |
| Media Measured | Air, Fresh Water, Gas, Hydraulic Oil | |
| Electrical Connection | 4 Pin Male Connector M12 | |
| Analogue Output | 4 → 20 mA | |
| Response Time | <=2 ms | |
| Maximum Current | 23 mA | |
| Supply Voltage | 12 → 24 V dc | |
| Housing Material | Ceramic, Fluorocarbon FPM, Stainless Steel AISI 316L | |
| IP Rating | IP65, IP67, IP69K | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Mounting Type | Thread Mount | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 4bar | ||
Accuracy ±0.5 % | ||
Output Type Analogue | ||
Media Measured Air, Fresh Water, Gas, Hydraulic Oil | ||
Electrical Connection 4 Pin Male Connector M12 | ||
Analogue Output 4 → 20 mA | ||
Response Time <=2 ms | ||
Maximum Current 23 mA | ||
Supply Voltage 12 → 24 V dc | ||
Housing Material Ceramic, Fluorocarbon FPM, Stainless Steel AISI 316L | ||
IP Rating IP65, IP67, IP69K | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
Mounting Type Thread Mount | ||
