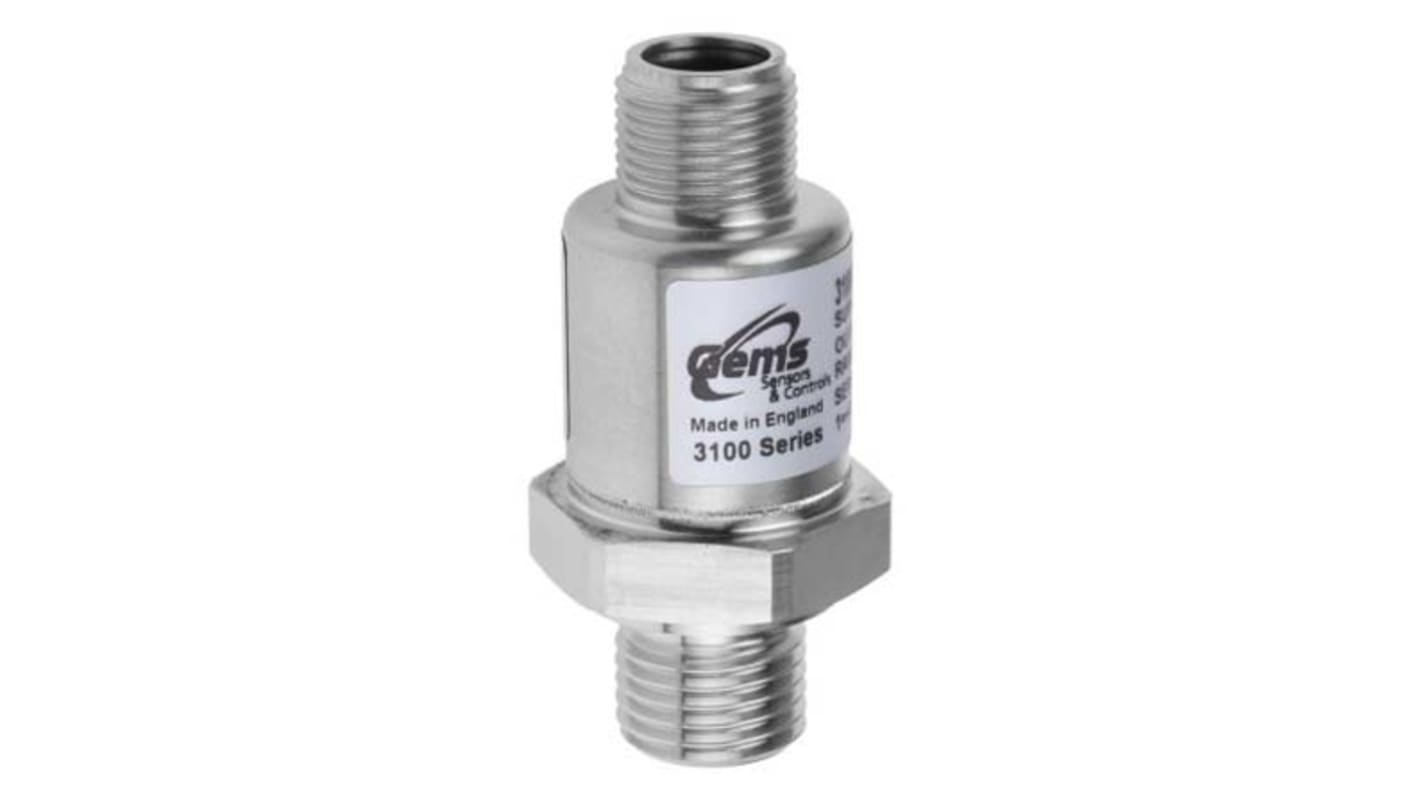

Gems Sensors 3100 Series Pressure Sensor, 0bar Min, 16bar Max, Analogue Output, Relative Reading

RS Stock No.:: 136-5053
Mfr. Part No.:: 3100S0016G01E000
Brand:: Gems Sensors

Gems Sensors 3100 Series Pressure Sensor, 0bar Min, 16bar Max, Analogue Output, Relative Reading

32 In stock - FREE next working day delivery available

1 available from Europe for delivery within 2 working day(s).

Price Each

£136.03

(exc. VAT)

£163.24

(inc. VAT)

Units	Per unit
1 +	£136.03

RS Stock No.:: 136-5053
Mfr. Part No.:: 3100S0016G01E000
Brand:: Gems Sensors

Datasheet
Operating Manual

Attribute	Value
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	16bar
Accuracy	0.25 %
Output Type	Analogue
Media Measured	Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil
Process Connection	G1/4
Electrical Connection	4-Pin M12 x 1 Connector
Analogue Output	0 → 10 V
Response Time	1 ms
Series	3100
Maximum Current	2 (Sink & Source) mA
Supply Voltage	8 → 30 V dc
Housing Material	17-4 PH Stainless Steel (Wetted Part)
Mounting Type	Threaded
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-40°C
IP Rating	IP65, IP67

Gems Sensors 3100 Series Pressure Sensor, 0bar Min, 16bar Max, Analogue Output, Relative Reading

Pressure Transmitters - 3100 Series M12 Connections

Features and Benefits
