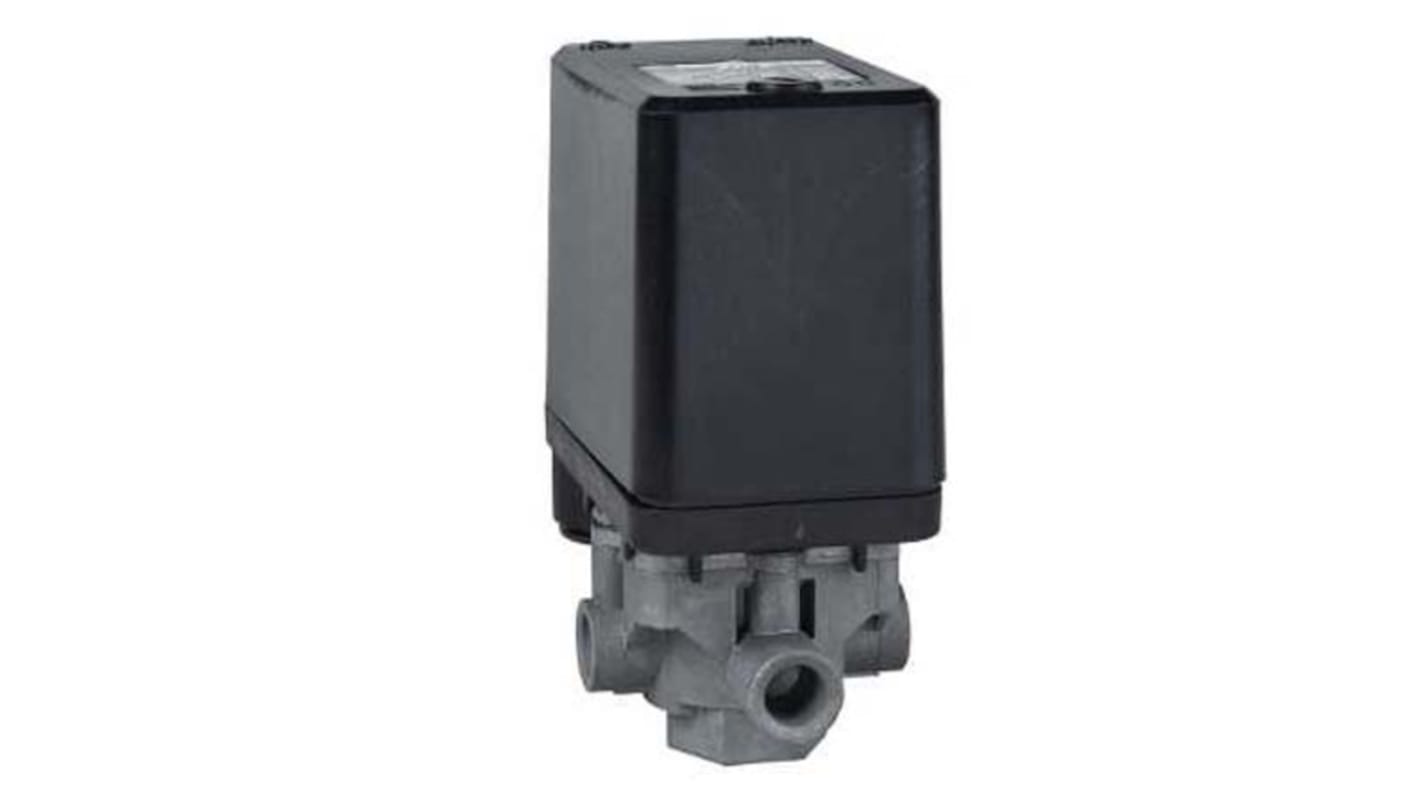

Telemecanique Sensors Pressure Switch, 3.5bar Min, 250bar Max, 1CO Output
- RS Stock No.:
- 135-3790
- Mfr. Part No.:
- XMXA25L2135
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£94.94
(exc. VAT)
£113.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £94.94 |
*price indicative
- RS Stock No.:
- 135-3790
- Mfr. Part No.:
- XMXA25L2135
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Minimum Pressure Reading | 3.5bar | |
| Maximum Pressure Reading | 250bar | |
| Accuracy | 3.5 % | |
| Output Type | 1CO | |
| Media Measured | Air, Fresh Water, Sea Water | |
| Electrical Connection | Screw Clamp | |
| Maximum Current | 100 mA @ 250 V dc, 3 A @ 120 V ac | |
| Supply Voltage | 240 V ac, 250 V dc | |
| Housing Material | Glass Fibre Reinforced Polycarbonate | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| IP Rating | IP54 | |
| Mounting Type | Panel Mount | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading 3.5bar | ||
Maximum Pressure Reading 250bar | ||
Accuracy 3.5 % | ||
Output Type 1CO | ||
Media Measured Air, Fresh Water, Sea Water | ||
Electrical Connection Screw Clamp | ||
Maximum Current 100 mA @ 250 V dc, 3 A @ 120 V ac | ||
Supply Voltage 240 V ac, 250 V dc | ||
Housing Material Glass Fibre Reinforced Polycarbonate | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
IP Rating IP54 | ||
Mounting Type Panel Mount | ||
- COO (Country of Origin):
- MA
OsiSense XMX Pressure Switches
Schneider Electric XMX series pressure switches for control circuits, with an adjustable differential. They are used to control the pressure of water and air, up to 25 bar.
Adjustable differential
1 CO snap acting contact
Temperature range: –25 to +70 °C
Enclosure rating: IP54
1 CO snap acting contact
Temperature range: –25 to +70 °C
Enclosure rating: IP54
Note
Pressure switches type XMX have an internal setting screw that is only accessible after removing the cover.
