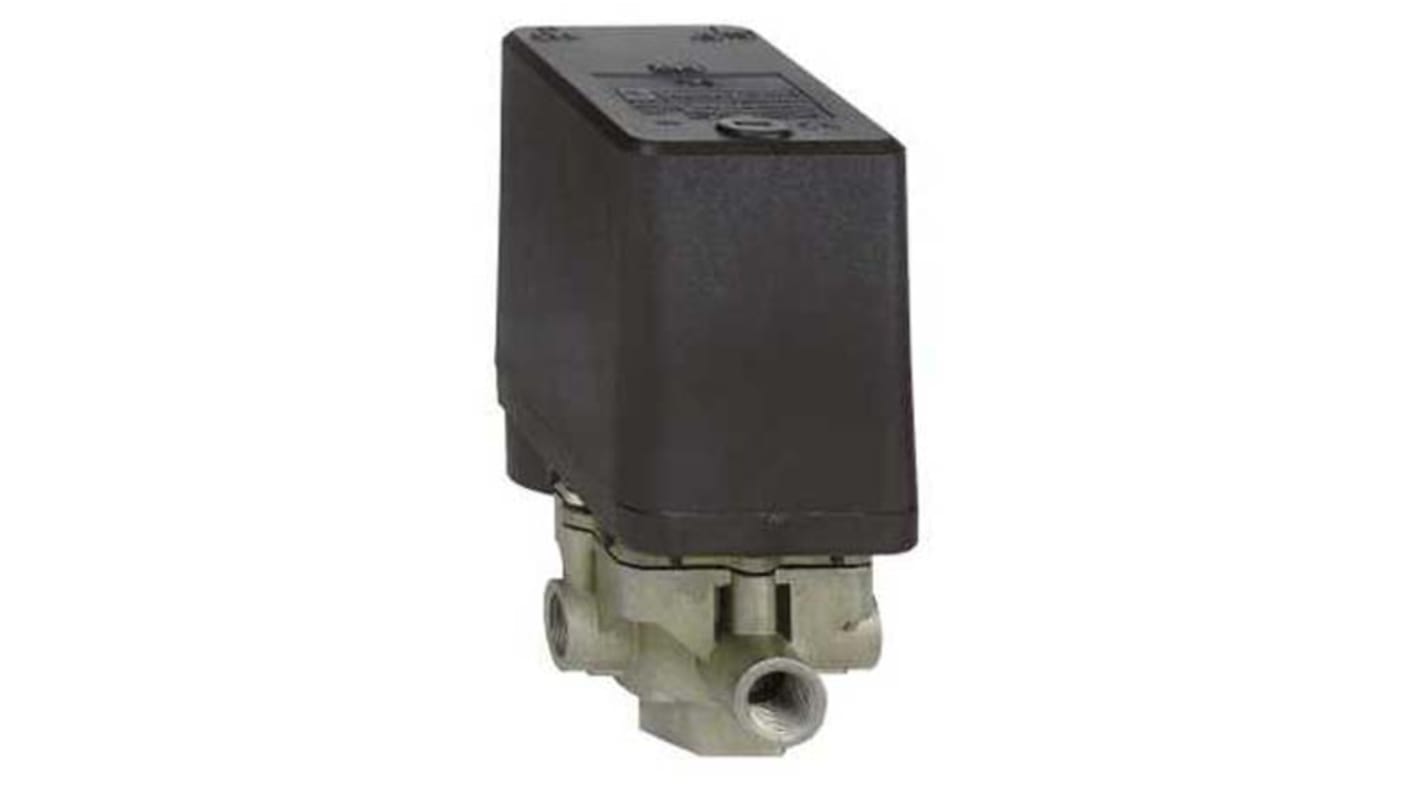

Telemecanique Sensors Pressure Switch, 3.5bar Min, 25bar Max, DPST-NC Output
- RS Stock No.:
- 135-3782
- Mfr. Part No.:
- XMPA25B2131
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£89.69
(exc. VAT)
£107.63
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.69 |
*price indicative
- RS Stock No.:
- 135-3782
- Mfr. Part No.:
- XMPA25B2131
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Minimum Pressure Reading | 3.5bar | |
| Maximum Pressure Reading | 25bar | |
| Accuracy | 3.5 % | |
| Output Type | DPST-NC | |
| Media Measured | Air, Fresh Water, Sea Water | |
| Electrical Connection | Screw Clamp | |
| Supply Voltage | 230 V ac, 400 V ac | |
| Housing Material | Glass Fibre Reinforced Polycarbonate | |
| Mounting Type | Panel Mount | |
| Minimum Operating Temperature | -25°C | |
| IP Rating | IP54, IP65 | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading 3.5bar | ||
Maximum Pressure Reading 25bar | ||
Accuracy 3.5 % | ||
Output Type DPST-NC | ||
Media Measured Air, Fresh Water, Sea Water | ||
Electrical Connection Screw Clamp | ||
Supply Voltage 230 V ac, 400 V ac | ||
Housing Material Glass Fibre Reinforced Polycarbonate | ||
Mounting Type Panel Mount | ||
Minimum Operating Temperature -25°C | ||
IP Rating IP54, IP65 | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- MA
OsiSense XMP Adjustable Differential Pressure Sensors
Osisense XMP pressure sensors are for control circuits and are used to control the pressure of water (sea and fresh) and air. XMP series pressure sensors have an adjustable differential and are for regulation between two thresholds.
Diaphragm pressure actuator
G 1/4 (female) fluid connection type
2 cable entries tapped for Pg 13.5 cable gland
2 NC snap action
G 1/4 (female) fluid connection type
2 cable entries tapped for Pg 13.5 cable gland
2 NC snap action
