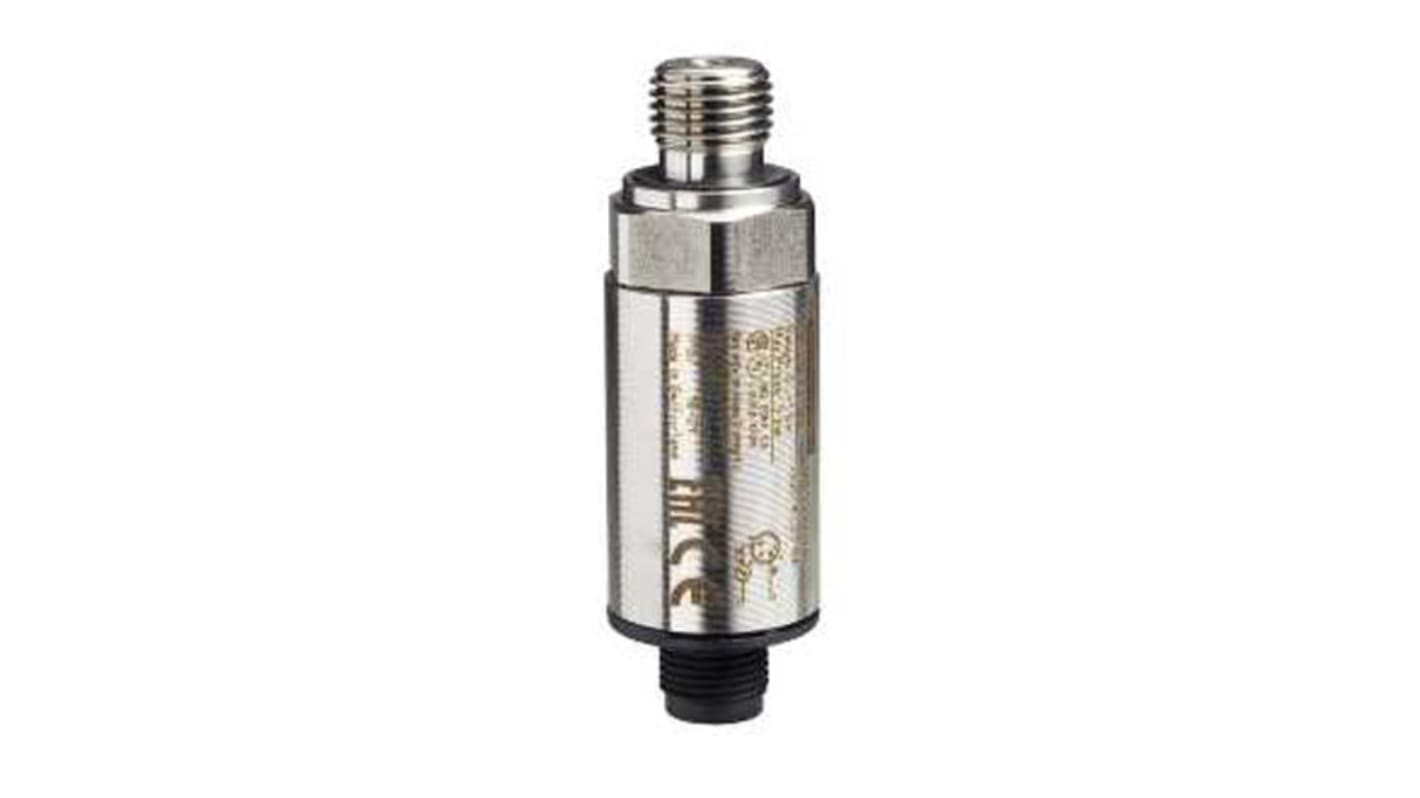

Telemecanique Sensors Pressure Switch, -1bar Min, 0bar Max, Analogue Output
- RS Stock No.:
- 135-3760
- Mfr. Part No.:
- XMLGM01D21
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£324.82
(exc. VAT)
£389.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £324.82 |
*price indicative
- RS Stock No.:
- 135-3760
- Mfr. Part No.:
- XMLGM01D21
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Minimum Pressure Reading | -1bar | |
| Maximum Pressure Reading | 0bar | |
| Accuracy | ±0.1 % | |
| Output Type | Analogue | |
| Media Measured | Air, Corrosive Fluid, Fresh Water, Hydraulic Oil, Sea Water | |
| Electrical Connection | M12 3-Pin Connector | |
| Analogue Output | 4 → 20 mA | |
| Response Time | 2 ms | |
| Maximum Current | 20 mA | |
| Supply Voltage | 12 V dc, 24 V dc | |
| Housing Material | Aluminium Oxide Ceramic, Stainless Steel | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | +85°C | |
| Mounting Type | Thread Mount | |
| IP Rating | IP66, IP67 | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading -1bar | ||
Maximum Pressure Reading 0bar | ||
Accuracy ±0.1 % | ||
Output Type Analogue | ||
Media Measured Air, Corrosive Fluid, Fresh Water, Hydraulic Oil, Sea Water | ||
Electrical Connection M12 3-Pin Connector | ||
Analogue Output 4 → 20 mA | ||
Response Time 2 ms | ||
Maximum Current 20 mA | ||
Supply Voltage 12 V dc, 24 V dc | ||
Housing Material Aluminium Oxide Ceramic, Stainless Steel | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +85°C | ||
Mounting Type Thread Mount | ||
IP Rating IP66, IP67 | ||
- COO (Country of Origin):
- CH
OsiSense XMLG Electronic Pressure Sensors
Schneider Electric XMLG pressure transmitters and pressure switches feature a ceramic pressure measuring cell. The deformation caused by the pressure is transmitted to the resistors of a Wheatstone bridge silk-screened on the ceramic. The change in resistance is then processed by the integrated electronics, providing either a digital or analog output signal.
Adjustable differential
1 CO snap acting contact
Temperature range: –15 to +85 °C
Enclosure rating: IP66
1 CO snap acting contact
Temperature range: –15 to +85 °C
Enclosure rating: IP66
