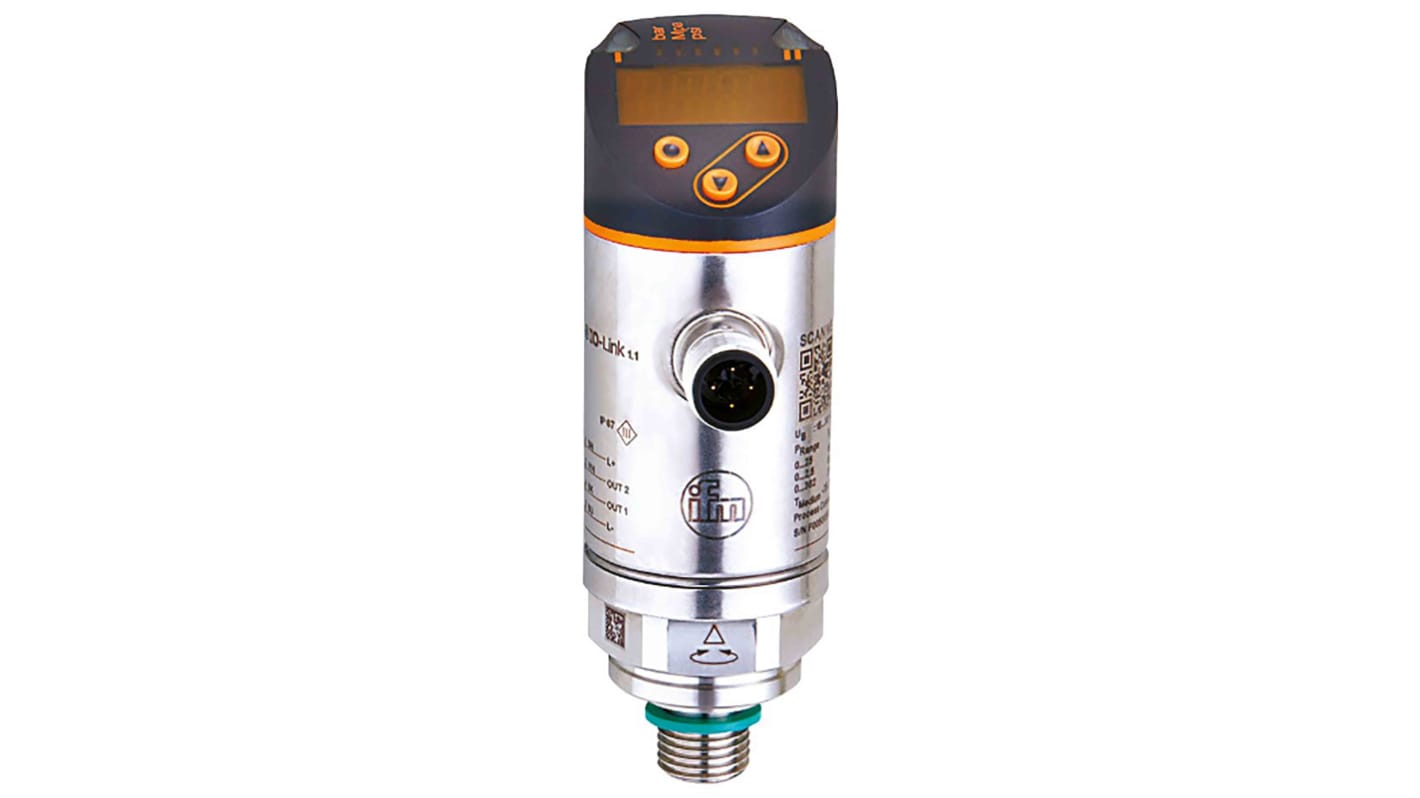

ifm electronic Pressure Sensor, -125mbar Min, 2.5bar Max, Analogue + PNP-NO/NC Programmable Output, Relative Reading
- RS Stock No.:
- 125-1320
- Mfr. Part No.:
- PN2596
- Brand:
- ifm electronic
Subtotal (1 unit)*
£426.43
(exc. VAT)
£511.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £426.43 |
*price indicative
- RS Stock No.:
- 125-1320
- Mfr. Part No.:
- PN2596
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Pressure Reading Type | Relative | |
| Minimum Pressure Reading | -125mbar | |
| Maximum Pressure Reading | 2.5bar | |
| Accuracy | <±0.4 % | |
| Output Type | Analogue + PNP-NO/NC Programmable | |
| Media Measured | Fluid | |
| Process Connection | G1/4 | |
| Electrical Connection | M12 Connector | |
| Analogue Output | 0 → 10 V, 4 → 20 mA | |
| Communication Protocol | IO-LINK | |
| Response Time | <1.5 (Minimum Switching Output) ms, <3 (Maximum Analogue Output) ms | |
| Maximum Current | 250 mA | |
| Supply Voltage | 18 → 30 V dc | |
| Interface | IO-Link | |
| Housing Material | PBT GF20, PBT+PC GF30, PC, Stainless Steel | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +80°C | |
| IP Rating | IP65, IP67 | |
Select all | ||
|---|---|---|
Brand ifm electronic | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading -125mbar | ||
Maximum Pressure Reading 2.5bar | ||
Accuracy <±0.4 % | ||
Output Type Analogue + PNP-NO/NC Programmable | ||
Media Measured Fluid | ||
Process Connection G1/4 | ||
Electrical Connection M12 Connector | ||
Analogue Output 0 → 10 V, 4 → 20 mA | ||
Communication Protocol IO-LINK | ||
Response Time <1.5 (Minimum Switching Output) ms, <3 (Maximum Analogue Output) ms | ||
Maximum Current 250 mA | ||
Supply Voltage 18 → 30 V dc | ||
Interface IO-Link | ||
Housing Material PBT GF20, PBT+PC GF30, PC, Stainless Steel | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
IP Rating IP65, IP67 | ||
- COO (Country of Origin):
- DE
ifm electronic PN2xxx Series Pressure Sensors
ifm electronic PN 2xxx series pressure sensors offers a flexible design that allows the sensor to rotate in any direction once fitted. With selectable dual switched NC/NO outputs or a single switched output and a scalable analogue output. The PN pressure sensors continuously evaluate and show system pressure on a large bright 4-digit alphanumeric display. The display can be switched from the indication of “red” to an alternating indication of “red - green”, highlighting switching states.
Features And Benefits
IO-Link communication
Independent set and reset points
Visualisation of the switching states by clearly visible LEDs
Signal damping, output delay on and delay off times
High overload protection
Highly stable ceramic measuring element is tolerant of overpressures
Low zero offset or drift from ageing, overpressure or temperature
IP 67
Independent set and reset points
Visualisation of the switching states by clearly visible LEDs
Signal damping, output delay on and delay off times
High overload protection
Highly stable ceramic measuring element is tolerant of overpressures
Low zero offset or drift from ageing, overpressure or temperature
IP 67
Pressure Sensors With Electronic Display
