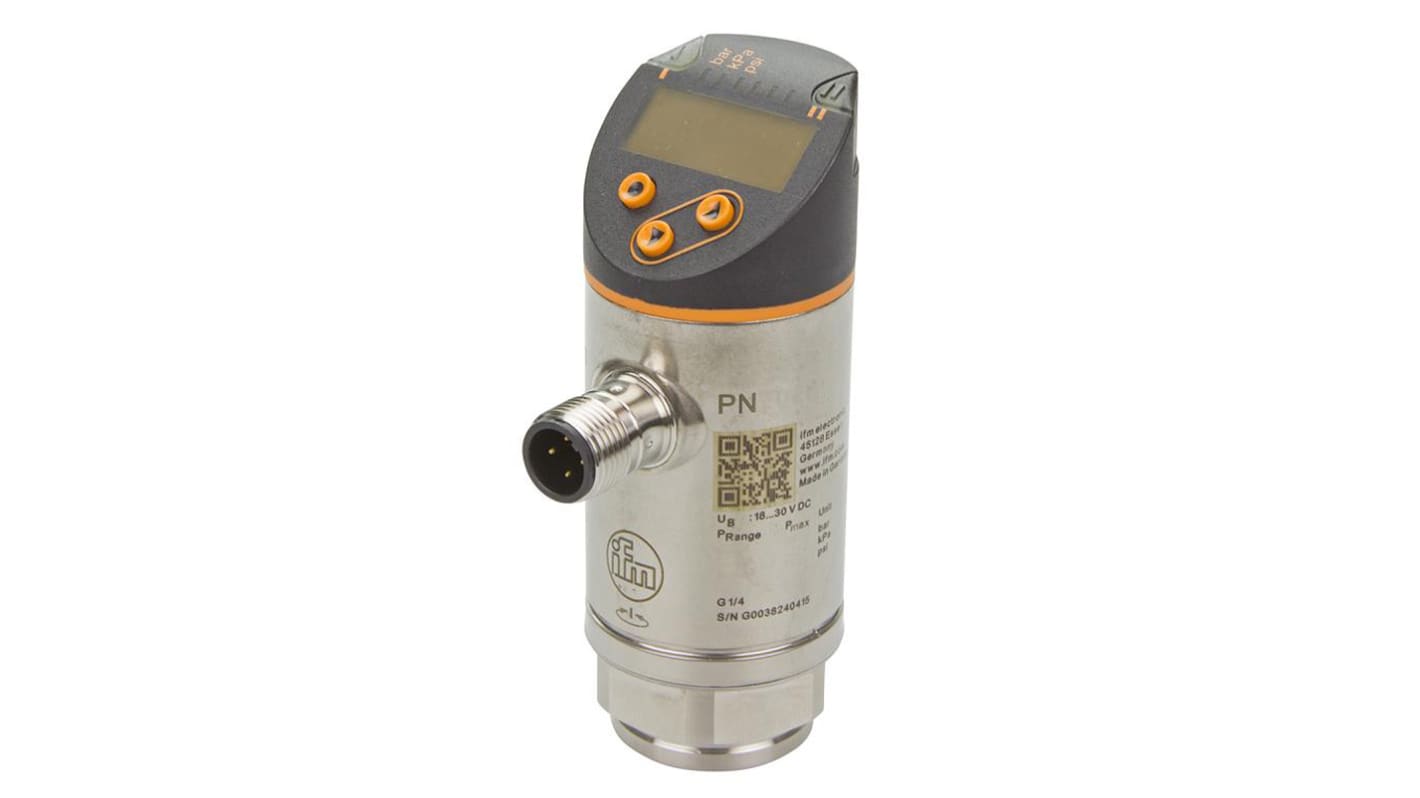

ifm electronic Pressure Sensor, 0bar Min, 2.5bar Max, 2x PNP/NPN-NO/NC Output, Relative Reading
- RS Stock No.:
- 125-1294
- Mfr. Part No.:
- PN7596
- Brand:
- ifm electronic
Subtotal (1 unit)*
£355.38
(exc. VAT)
£426.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £355.38 |
*price indicative
- RS Stock No.:
- 125-1294
- Mfr. Part No.:
- PN7596
- Brand:
- ifm electronic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Pressure Reading Type | Relative | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 2.5bar | |
| Accuracy | ±0.5 % | |
| Output Type | 2x PNP/NPN-NO/NC | |
| Media Measured | Fluid | |
| Process Connection | G1/4 | |
| Electrical Connection | M12 Connector | |
| Response Time | <3 (Minimum Switching Output) ms | |
| Communication Protocol | IO-LINK | |
| Maximum Current | 150 mA @ +60 °C, 200 mA @ +60 °C, 250 mA @ +40 °C | |
| Supply Voltage | 18 → 30 V dc | |
| Interface | IO-Link | |
| Housing Material | PBT GF20, PBT+PC GF30, PC, Stainless Steel | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand ifm electronic | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 2.5bar | ||
Accuracy ±0.5 % | ||
Output Type 2x PNP/NPN-NO/NC | ||
Media Measured Fluid | ||
Process Connection G1/4 | ||
Electrical Connection M12 Connector | ||
Response Time <3 (Minimum Switching Output) ms | ||
Communication Protocol IO-LINK | ||
Maximum Current 150 mA @ +60 °C, 200 mA @ +60 °C, 250 mA @ +40 °C | ||
Supply Voltage 18 → 30 V dc | ||
Interface IO-Link | ||
Housing Material PBT GF20, PBT+PC GF30, PC, Stainless Steel | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
