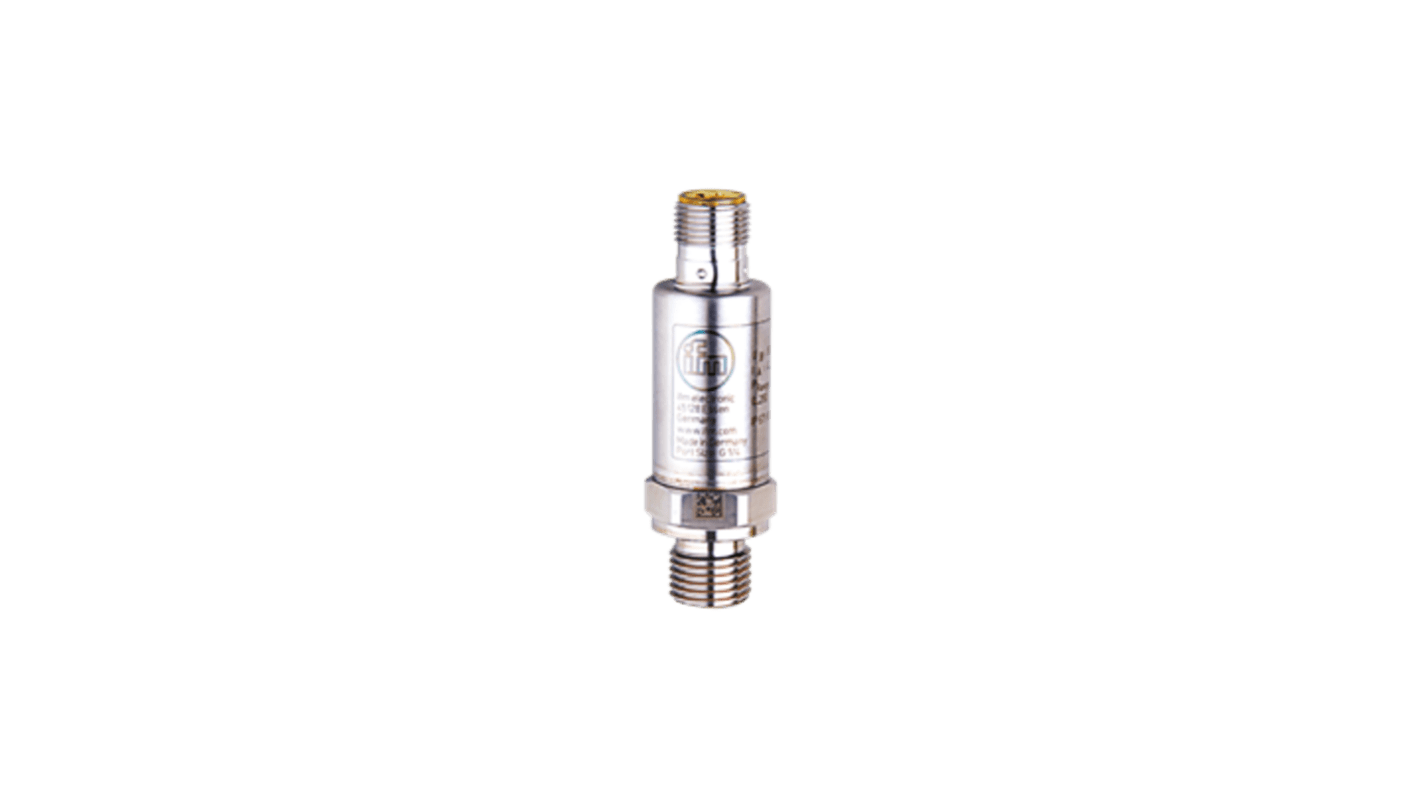

ifm electronic PU85 Series Pressure Transmitter, 0.5/4.5 V Output 0 bar 60 bar, Relative Pressure Reading
- RS Stock No.:
- 596-219
- Mfr. Part No.:
- PU8523
- Brand:
- ifm electronic
Subtotal (1 unit)*
£134.62
(exc. VAT)
£161.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £134.62 |
*price indicative
- RS Stock No.:
- 596-219
- Mfr. Part No.:
- PU8523
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Maximum Pressure Measurement | 60bar | |
| Product Type | Pressure Transmitter | |
| Pressure Reading Type | Relative Pressure | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±0.8 % | |
| Output Type | 0.5/4.5 V | |
| Media Measured | Liquid, Gas | |
| Interface Type | 1 Wire | |
| Terminal Type | M12 Connector | |
| Response Time | 2ms | |
| Minimum Supply Voltage | 8V | |
| Maximum Supply Voltage | 32V | |
| Series | PU85 | |
| Standards/Approvals | CE, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61326-1, Pressure equipment directive, rev. 6, UKCA, UN ECE R10 | |
| Housing Material | 316L Stainless Steel, Polyphenylene Sulfide | |
| IP Rating | IP67, IP69K | |
| Mount Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Maximum Pressure Measurement 60bar | ||
Product Type Pressure Transmitter | ||
Pressure Reading Type Relative Pressure | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±0.8 % | ||
Output Type 0.5/4.5 V | ||
Media Measured Liquid, Gas | ||
Interface Type 1 Wire | ||
Terminal Type M12 Connector | ||
Response Time 2ms | ||
Minimum Supply Voltage 8V | ||
Maximum Supply Voltage 32V | ||
Series PU85 | ||
Standards/Approvals CE, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61326-1, Pressure equipment directive, rev. 6, UKCA, UN ECE R10 | ||
Housing Material 316L Stainless Steel, Polyphenylene Sulfide | ||
IP Rating IP67, IP69K | ||
Mount Type Screw | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- RO
The ifm electronic pressure transmitter delivers precise measurements for both liquids and gases within mobile applications. Designed for reliable performance, it operates across a measuring range of 0 to 60 bar, ensuring accurate readings even in challenging environments. The device boasts a robust build with stainless steel housing, making it suitable for demanding conditions while maintaining IP 67 and IP 69K protection ratings. With a low current consumption of under 12 mA and a wide operating voltage range of 8 to 32 V DC, it can seamlessly integrate into various systems. This transmitter promises not only versatility and durability but also exceptional accuracy and stability, marking it as an indispensable tool for precision applications.
Operates effectively in a temperature range of -40 to 125 °C
Provides an analogue voltage output with a range of 0.5 to 4.5 V
Offers short-circuit proof and overload protection for enhanced safety
Achieves long-term stability with deviations as low as ± 0.1% over six months
