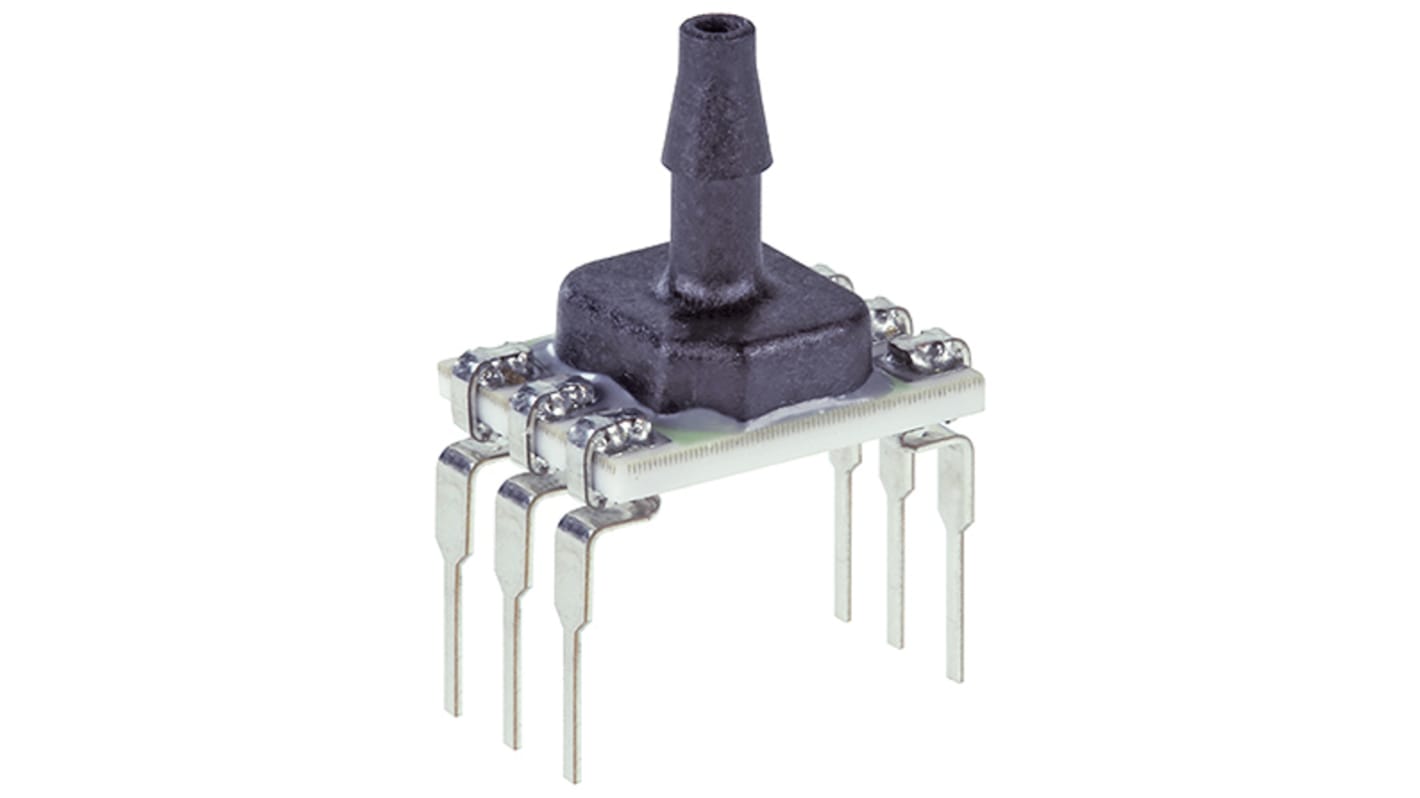

ABPDANT005PGAA5 Honeywell, Piezoresistive Pressure Sensor 5psi 6-Pin DIP
- RS Stock No.:
- 922-0941
- Mfr. Part No.:
- ABPDANT005PGAA5
- Brand:
- Honeywell
Discontinued
- RS Stock No.:
- 922-0941
- Mfr. Part No.:
- ABPDANT005PGAA5
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Maximum Overload Pressure | 30psi | |
| Mounting Type | Through Hole | |
| Package Type | DIP | |
| Pin Count | 6 | |
| Dimensions | 11 x 8 x 10.63mm | |
| Maximum Operating Pressure | 5psi | |
| Maximum Operating Supply Voltage | 5.25 V dc | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Pressure | 0psi | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Maximum Overload Pressure 30psi | ||
Mounting Type Through Hole | ||
Package Type DIP | ||
Pin Count 6 | ||
Dimensions 11 x 8 x 10.63mm | ||
Maximum Operating Pressure 5psi | ||
Maximum Operating Supply Voltage 5.25 V dc | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Pressure 0psi | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- CN
ABP Series Piezoresistive Pressure Sensors, Honeywell
The range of ABP piezoresistive silicon pressure sensors from Honeywell, are available in several variations of digital/analogue, SMT/DIP/LLSMT packages and pressure measurement ranges. Specifically for the measurement of gauge and differential pressure, the ABP sensors are suitable for medical applications such as CPAP, blood pressure & patient monitoring and ventilators. You can also use the sensors within industrial applications such as air brakes, HVAC, pneumatic control & regulation and gas & valve monitoring.
Features & Benefits of the ABP Pressure Sensors
•Pressure unit measurements varying between 60 mbar and 10 bar, 6 kPa and 1 MPa and 1 psi and 150 psi
•3.3 V dc or 5 V dc single power supply
•±0.25%FSS stability
•±1.5%FSS Total Error Band (TEB)
•±FSS BFSL Accuracy
•Meets IPC/JEDEC J-STD-020.1 Moisture Sensitivity level 1 requirements
•Sleep, temperature output and liquid media mode
•REACH and RoHS compliant
Features & Benefits of the ABP Pressure Sensors
•Pressure unit measurements varying between 60 mbar and 10 bar, 6 kPa and 1 MPa and 1 psi and 150 psi
•3.3 V dc or 5 V dc single power supply
•±0.25%FSS stability
•±1.5%FSS Total Error Band (TEB)
•±FSS BFSL Accuracy
•Meets IPC/JEDEC J-STD-020.1 Moisture Sensitivity level 1 requirements
•Sleep, temperature output and liquid media mode
•REACH and RoHS compliant
