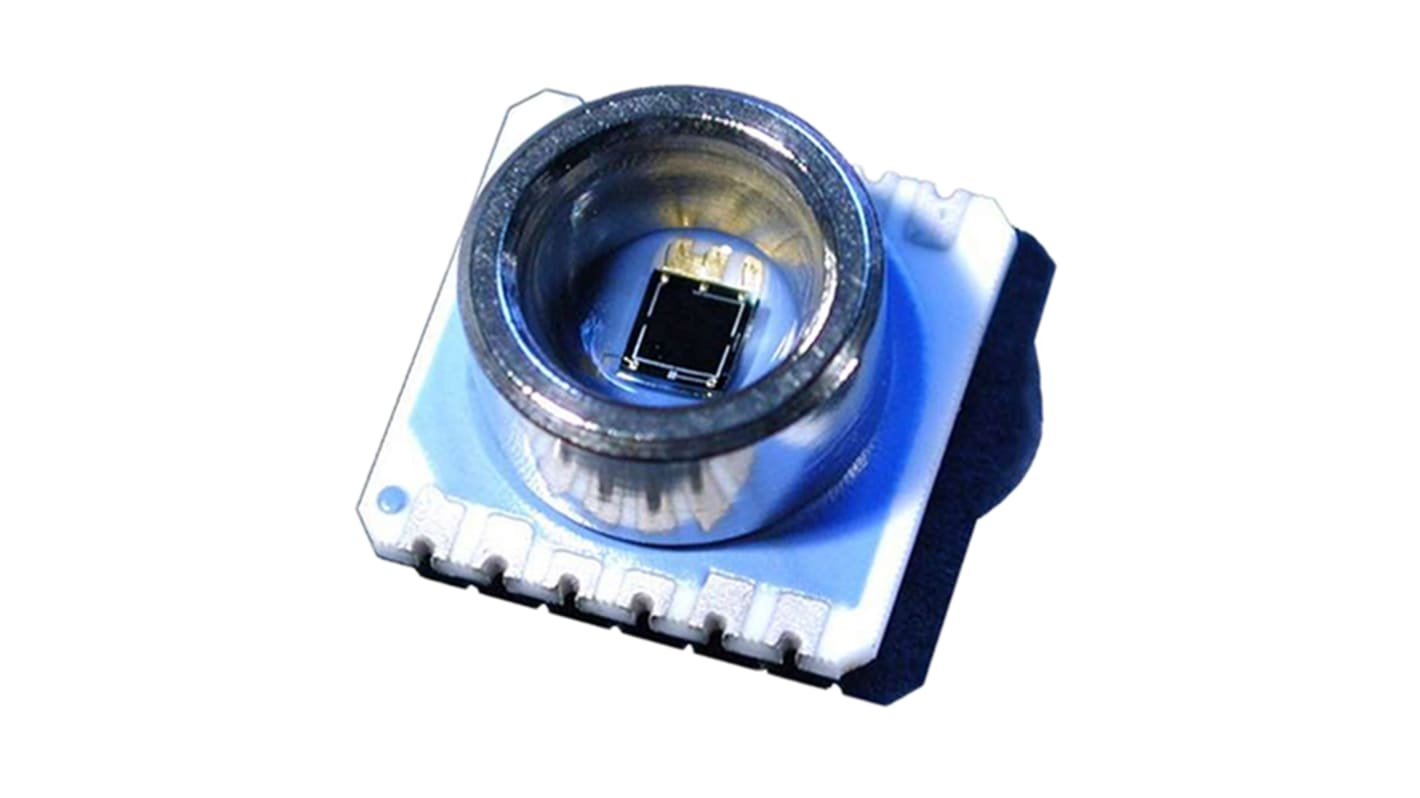

TE Connectivity Barometric Pressure Sensor, 1100mbar Operating Max, Surface Mount, 8-Pin, 5bar Overload Max
- RS Stock No.:
- 893-7133P
- Mfr. Part No.:
- 325534008-00
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 893-7133P
- Mfr. Part No.:
- 325534008-00
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Overload Pressure | 5bar | |
| Sensor Type | Absolute Pressure Sensors | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Dimensions | 9 x 9 x 2.88mm | |
| Maximum Operating Pressure | 1100mbar | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Output Voltage | 3.6 V | |
| Minimum Operating Pressure | 10mbar | |
| Minimum Output Voltage | 0 V | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Overload Pressure 5bar | ||
Sensor Type Absolute Pressure Sensors | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Dimensions 9 x 9 x 2.88mm | ||
Maximum Operating Pressure 1100mbar | ||
Maximum Operating Supply Voltage 3.6 V | ||
Maximum Operating Temperature +125 °C | ||
Maximum Output Voltage 3.6 V | ||
Minimum Operating Pressure 10mbar | ||
Minimum Output Voltage 0 V | ||
Minimum Operating Temperature -40 °C | ||
TE Connectivity MS5534C Series Piezoresistive Pressure Sensors
TE Connectivity’s MEAS MS5534C Series is a hybrid device combining a piezoresistive pressure sensor with an ADC Interface IC. Fully software compatible, and with an improved ESD sensitivity level compared to previous versions, these piezoresistive pressure sensors have automatic power down(on/off) switching.
Suitable applications include weather control systems, adventure or multi-mode watches, mobile altimeter/barometer systems and GPS receivers.
Suitable applications include weather control systems, adventure or multi-mode watches, mobile altimeter/barometer systems and GPS receivers.
6 coefficients stored on chip for software compensation
10-1100 mbar absolute pressure range
Integrated miniature pressure sensor
Low voltage
Low power consumption
No external components are necessary
10-1100 mbar absolute pressure range
Integrated miniature pressure sensor
Low voltage
Low power consumption
No external components are necessary
