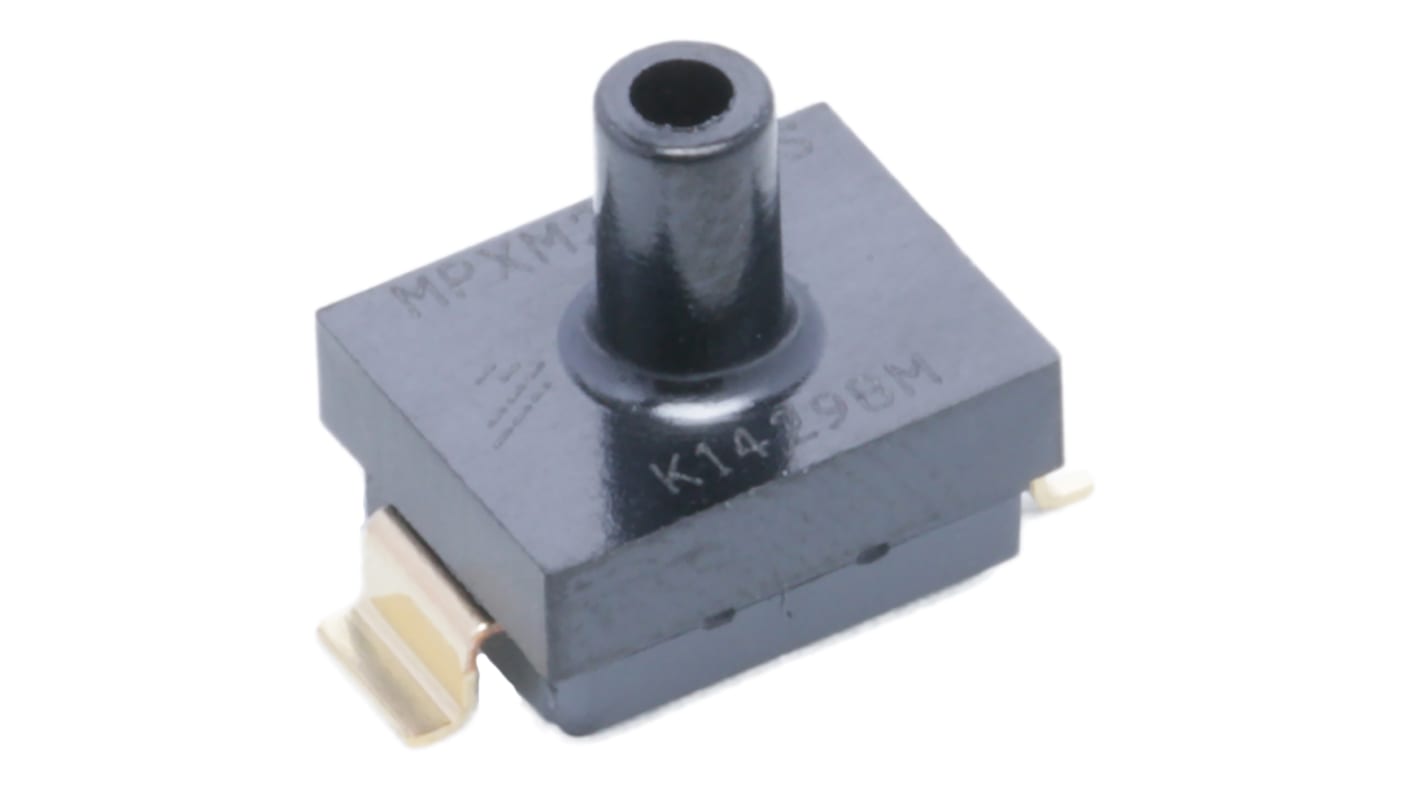

NXP Absolute Pressure Sensor, 100kPa Operating Max, Surface Mount, 5-Pin, 400kPa Overload Max
- RS Stock No.:
- 719-1153
- Mfr. Part No.:
- MPXM2102AS
- Brand:
- NXP
Discontinued
- RS Stock No.:
- 719-1153
- Mfr. Part No.:
- MPXM2102AS
- Brand:
- NXP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NXP | |
| Maximum Overload Pressure | 400kPa | |
| Typical Sensitivity | 0.4mV/kPa | |
| Mounting Type | Surface Mount | |
| Pin Count | 5 | |
| Maximum Operating Pressure | 100kPa | |
| Maximum Operating Supply Voltage | 16 V | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Output Voltage | 10 V | |
| Minimum Operating Pressure | 0kPa | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Output Voltage | 0 mV | |
| Select all | ||
|---|---|---|
Brand NXP | ||
Maximum Overload Pressure 400kPa | ||
Typical Sensitivity 0.4mV/kPa | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Maximum Operating Pressure 100kPa | ||
Maximum Operating Supply Voltage 16 V | ||
Maximum Operating Temperature +125 °C | ||
Maximum Output Voltage 10 V | ||
Minimum Operating Pressure 0kPa | ||
Minimum Operating Temperature -40 °C | ||
Minimum Output Voltage 0 mV | ||
Differential/Gauge Pressure Sensors up to 115 kPa, NXP
High range pressure differential/gauge sensors measure the difference in pressure between sources when pressure is applied to both sides of the sensor (differential) and atmospheric pressure (gauged).
Note
NXP is a trademark of NXP B.V.
Pressure Sensors, NXP
