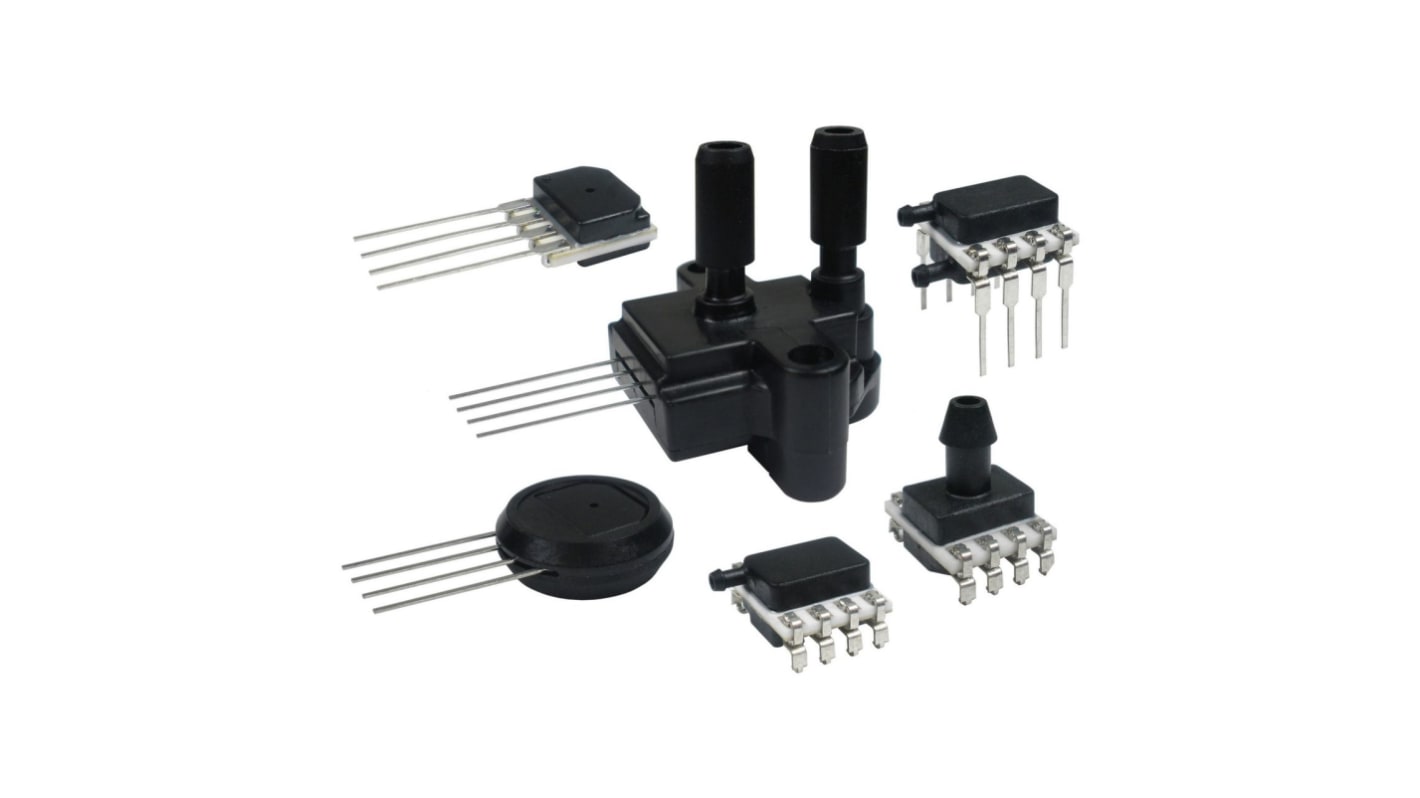

Honeywell Technologies SSCDANN030PGAA5 Piezoresistive Pressure SensorThrough Hole 8 DIP

RS Stock No.:: 226-9717
Mfr. Part No.:: SSCDANN030PGAA5
Brand:: Honeywell

Honeywell Technologies SSCDANN030PGAA5 Piezoresistive Pressure SensorThrough Hole 8 DIP

Subtotal (1 box of 50 units)*

£2,134.45

(exc. VAT)

£2,561.35

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 23 December 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Box*
50 +	£42.689	£2,134.45

*price indicative

RS Stock No.:: 226-9717
Mfr. Part No.:: SSCDANN030PGAA5
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Product Type	Piezoresistive Pressure Sensor
	Sensor Type	Piezoresistive Pressure Sensor
	Maximum Overload Pressure	413kPa
	Mount Type	Through Hole
	Package Type	DIP
	Pin Count	8
	Minimum Supply Voltage	3.3V
	Maximum Operating Pressure	206 kPa
	Port Type	Single Axial Barbed
	Maximum Supply Voltage	5V
	Accuracy	±0.25 %
	Maximum Operating Temperature	85°C
	Length	10mm
	Standards/Approvals	No
	Series	SSC
	Height	13.75mm
	Minimum Operating Pressure	0psi
	Minimum Operating Temperature	-40°C
	Automotive Standard	No

	Select all
	Brand Honeywell
	Product Type Piezoresistive Pressure Sensor
	Sensor Type Piezoresistive Pressure Sensor
	Maximum Overload Pressure 413kPa
	Mount Type Through Hole
	Package Type DIP
	Pin Count 8
	Minimum Supply Voltage 3.3V
	Maximum Operating Pressure 206 kPa
	Port Type Single Axial Barbed
	Maximum Supply Voltage 5V
	Accuracy ±0.25 %
	Maximum Operating Temperature 85°C
	Length 10mm
	Standards/Approvals No
	Series SSC
	Height 13.75mm
	Minimum Operating Pressure 0psi
	Minimum Operating Temperature -40°C
	Automotive Standard No

Datasheet - SSCDANN030PGAA5

Honeywell SSC Series Piezoresistive Pressure Sensor, 0 to 206kPa Maximum Operating Pressure, 3.3V Minimum Supply Voltage - SSCDANN030PGAA5

This piezoresistive pressure sensor converts pressure into a proportional electrical signal for general sensing applications. It operates within a low-voltage range and is intended for through-hole PCB mounting with an axial pressure port, providing a Compact measurement solution for systems requiring a small, eight-pin module. The device is engineered for use across a wide ambient temperature span and accepts pressures from atmospheric up to its rated maximum.

Features and Benefits:

• ±0.25% accuracy reduces measurement uncertainty for calibration tasks
• 3.3V minimum supply allows low-voltage system integration
• Single axial barbed port enables straightforward fluid connection
• Through‑hole DIP mount simplifies mechanical and electrical installation
• -40°C to 85°C range maintains function across temperature extremes

Applications

• Suitable for Compact instrumentation requiring precise pressure feedback
• Ideal for pneumatic manifold monitoring in benchtop systems
• Used with low-voltage data acquisition hardware in labs
• Can be used for leak detection where small form factor matters
• Appropriate for control loops in non-automotive industrial equipment

What mounting approach does it require?

It fits a through‑hole PCB design and uses a DIP package with eight pins for soldered attachment.

What pressure limits should be observed during use?

Normal operation is up to 206kPa with a maximum static overload rating of 413kPa.

Which electrical supply range is compatible with the device?

It accepts supply voltages down to 3.3V and up to 5V for typical operation.

How does the sensor perform in varying ambient temperatures?

It is specified to operate across a temperature window from -40°C to 85°C.
