Honeywell Piezoresistive Pressure SensorSurface 6 SMT

View all Pressure Sensor ICs

Subtotal (1 box of 50 units)*

£1,256.90

(exc. VAT)

£1,508.30

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
50 +£25.138£1,256.90

*price indicative

RS Stock No.:
226-9613
Distrelec Article No.:
304-58-829
Mfr. Part No.:
ABPMANN060KGSA3
Brand:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Product Type

Piezoresistive Pressure Sensor

Sensor Type

Gauge Pressure Sensor

Maximum Overload Pressure

200kPa

Mount Type

Surface

Package Type

SMT

Pin Count

6

Minimum Supply Voltage

-0.3V

Maximum Operating Pressure

60 kPa

Accuracy

±0.25 %

Port Type

Single Axial Barbed

Maximum Supply Voltage

5V

Maximum Operating Temperature

85°C

Width

6.3 mm

Series

ABP

Standards/Approvals

RoHS

Length

7.3mm

Height

10.63mm

Minimum Operating Pressure

0psi

Minimum Operating Temperature

-40°C

Automotive Standard

No

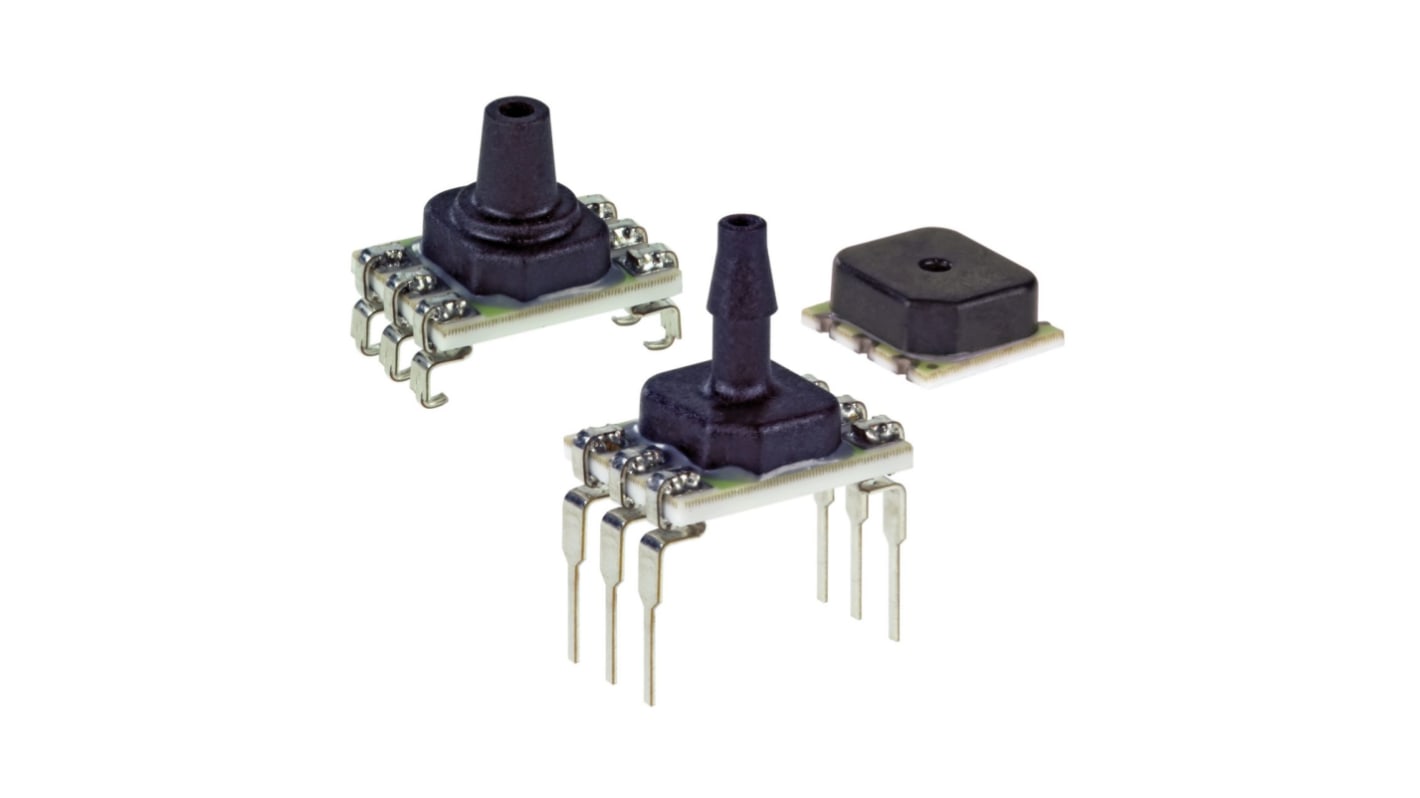

The Honeywell ABP Series are piezoresistive silicon pressure sensors offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors which include non linearity, repeatability and hysteresis using an on board Application Specific Integrated Circuit that is ASIC.

Measures gauge and differential pressures

High burst pressures

REACH and RoHS compliant

Meets moisture Sensitivity Level 1 requirements
