Honeywell Differential Pressure SensorSurface 6 SMT
- RS Stock No.:
- 214-1423
- Mfr. Part No.:
- ABPMRRN005PD2A3
- Brand:
- Honeywell
Bulk discount available
Subtotal (1 unit)*
£28.15
(exc. VAT)
£33.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 76 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £28.15 |
| 10 - 24 | £25.95 |
| 25 + | £24.10 |
*price indicative
- RS Stock No.:
- 214-1423
- Mfr. Part No.:
- ABPMRRN005PD2A3
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Sensor Type | Gauge Pressure Sensor | |
| Maximum Overload Pressure | 250psi | |
| Product Type | Differential Pressure Sensor | |
| Mount Type | Surface | |
| Package Type | SMT | |
| Pin Count | 6 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Operating Pressure | 5 psi | |
| Port Type | Dual Radial Barbed | |
| Maximum Supply Voltage | 6V | |
| Accuracy | ±0.25 % | |
| Maximum Operating Temperature | 85°C | |
| Series | ABP | |
| Standards/Approvals | RoHS | |
| Width | 6.3 mm | |
| Length | 7.3mm | |
| Height | 10.63mm | |
| Minimum Operating Pressure | 5psi | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Sensor Type Gauge Pressure Sensor | ||
Maximum Overload Pressure 250psi | ||
Product Type Differential Pressure Sensor | ||
Mount Type Surface | ||
Package Type SMT | ||
Pin Count 6 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Operating Pressure 5 psi | ||
Port Type Dual Radial Barbed | ||
Maximum Supply Voltage 6V | ||
Accuracy ±0.25 % | ||
Maximum Operating Temperature 85°C | ||
Series ABP | ||
Standards/Approvals RoHS | ||
Width 6.3 mm | ||
Length 7.3mm | ||
Height 10.63mm | ||
Minimum Operating Pressure 5psi | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||

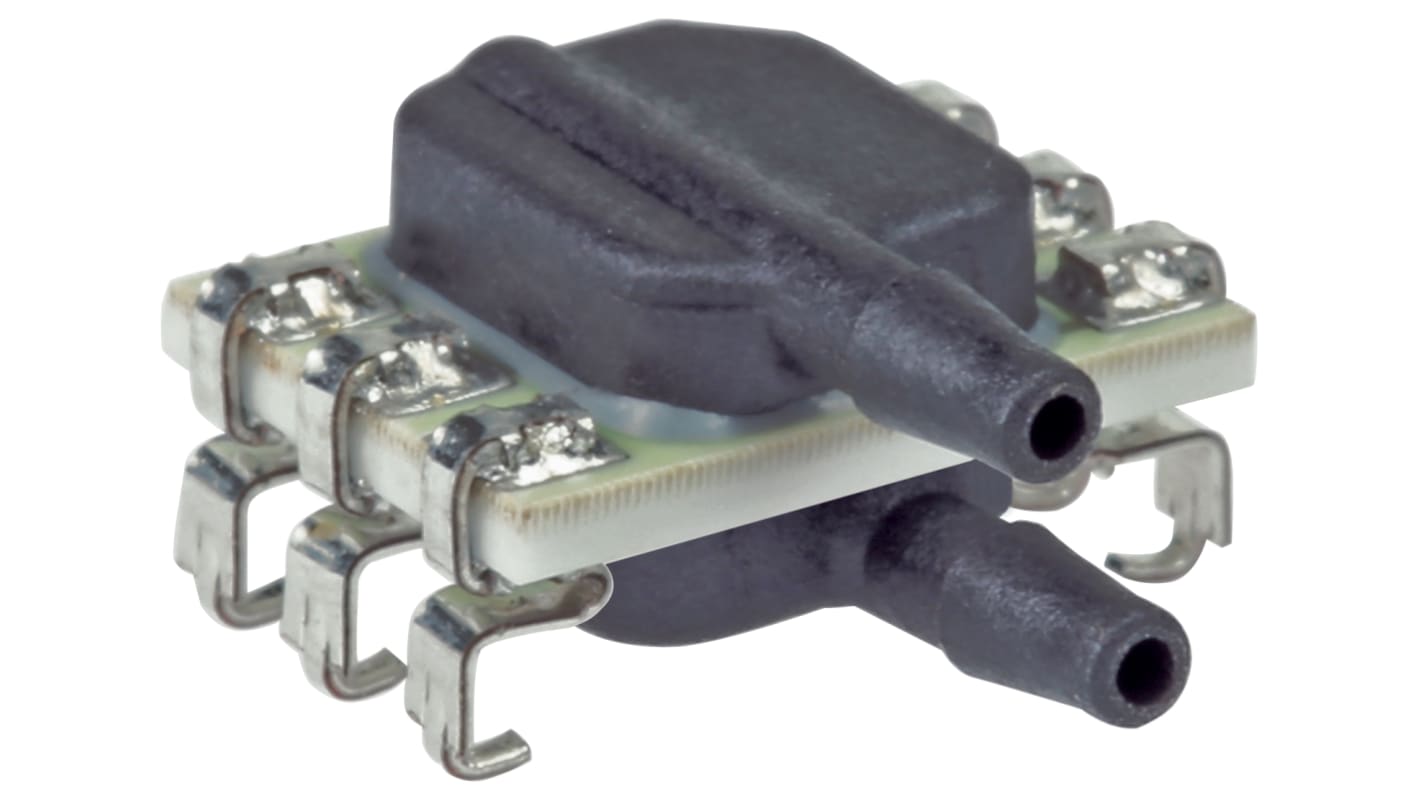

The Honeywell ABP Series Amplified Basic Pressure Sensor, with SMT package, RR pressure port and 5 psi differential pressure range, is a piezoresistive silicon pressure sensors offering I2C compatible output type.
REACH and RoHS compliant.
Sensor materials have been tested and certified for these food safety standards:
- NSF-169
- BPA Free
- LFGB
