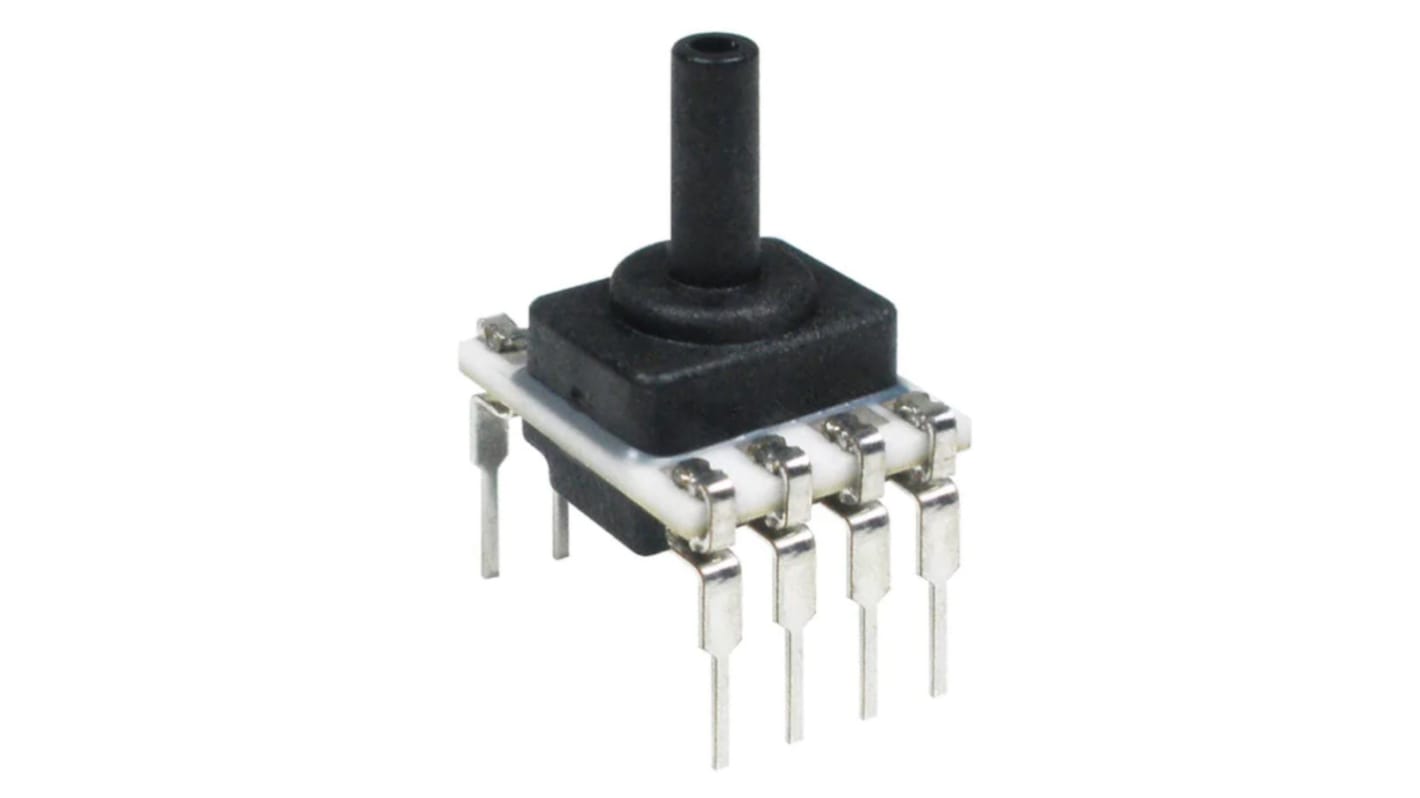

Honeywell HSCDLNN060MGAA5 Gauge Pressure SensorSurface 8 DIP

View all Pressure Sensor ICs
Bulk discount available

Subtotal (1 unit)*

£38.98

(exc. VAT)

£46.78

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 - 4£38.98
5 - 9£37.93
10 - 24£36.91
25 - 39£35.98
40 +£35.08

*price indicative

Packaging Options:
RS Stock No.:
211-9919
Mfr. Part No.:
HSCDLNN060MGAA5
Brand:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Sensor Type

Gauge Pressure Sensor

Product Type

Gauge Pressure Sensor

Maximum Overload Pressure

85kPa

Mount Type

Surface

Package Type

DIP

Pin Count

8

Minimum Supply Voltage

3.3V

Maximum Operating Pressure

6000 kPa

Accuracy

±0.25 %

Maximum Supply Voltage

5V

Port Type

Single Axial Barbless

Maximum Operating Temperature

85°C

Height

13.75mm

Length

10mm

Series

HSC

Width

13.3 mm

Standards/Approvals

No

Minimum Operating Pressure

0mbar

Automotive Standard

No

Minimum Operating Temperature

-20°C

The Honeywell TruStability High Accuracy Silicon Ceramic (HSC) Series is a piezo resistive silicon pressure sensor offering a ratio metric analogue or digital output for reading pressure over the specified full scale pressure span and temperature range. The HSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analogue and 2 kHz for digital.

Stability and reliability

Industry-leading accuracy of ±0.25 %FSS BFSL

Port and housing options simplify integration

Wide pressure range, from ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2 O to ±150 psi

Small package size

Extremely low power consumption
