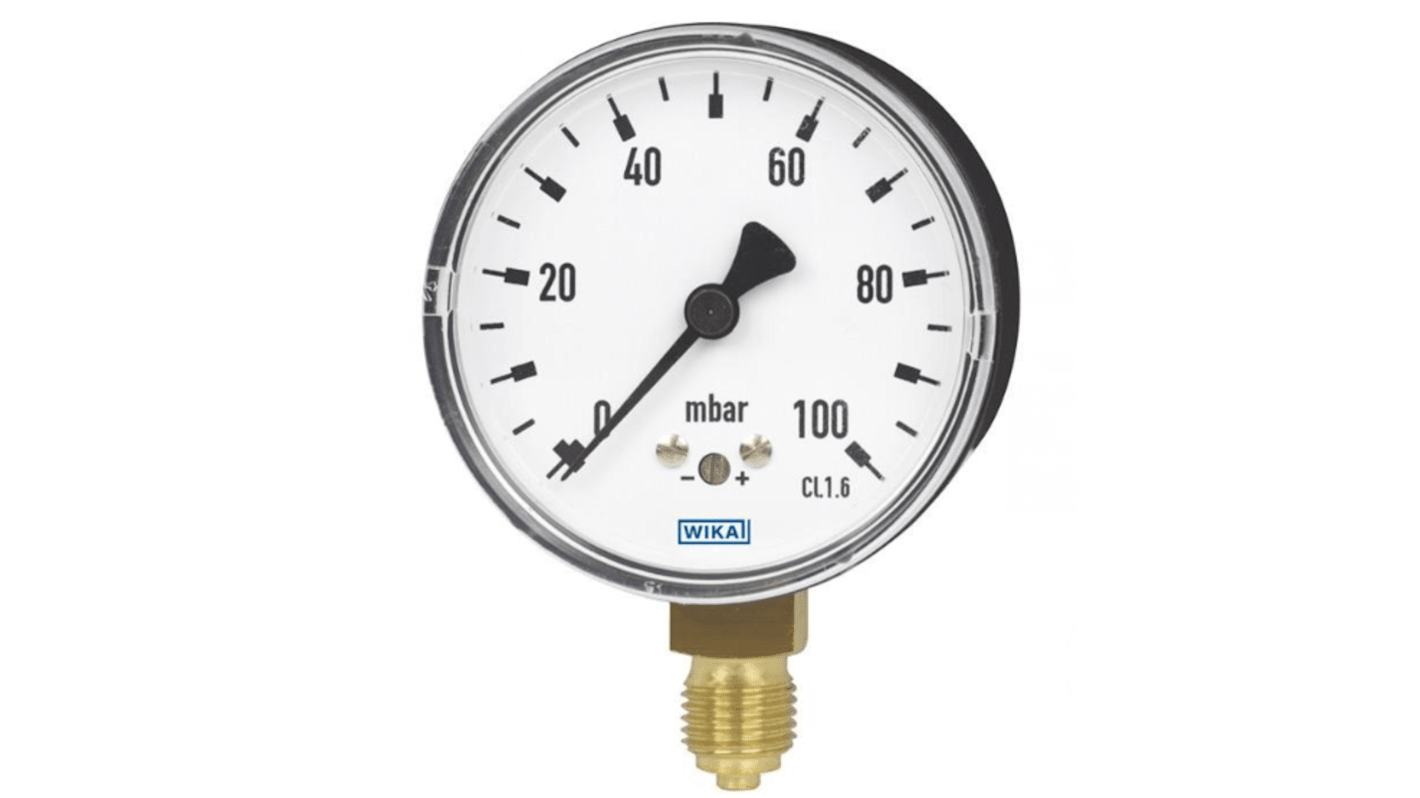

WIKA G 1/8 Process Pressure Gauge, 50 mm, 0 mbar
- RS Stock No.:
- 268-5349
- Mfr. Part No.:
- 43969882
- Brand:
- WIKA
Subtotal (1 unit)*
£92.39
(exc. VAT)
£110.87
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £92.39 |
*price indicative
- RS Stock No.:
- 268-5349
- Mfr. Part No.:
- 43969882
- Brand:
- WIKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Maximum Pressure Measurement | 0mbar | |
| Product Type | Pressure Gauge | |
| Minimum Pressure Measurement | -600mbar | |
| Pressure Connection | G 1/8 B | |
| Connection Size | G 1/8 | |
| Connection Type | Process | |
| Series | 6X1.10 | |
| Case Material | Steel | |
| Dial Colour | Background: Black | |
| Connection Location | Back Entry | |
| Dial Size | 50mm | |
| Standards/Approvals | EU | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Maximum Pressure Measurement 0mbar | ||
Product Type Pressure Gauge | ||
Minimum Pressure Measurement -600mbar | ||
Pressure Connection G 1/8 B | ||
Connection Size G 1/8 | ||
Connection Type Process | ||
Series 6X1.10 | ||
Case Material Steel | ||
Dial Colour Background: Black | ||
Connection Location Back Entry | ||
Dial Size 50mm | ||
Standards/Approvals EU | ||
The WIKA Capsule pressure gauge is based upon the proven capsule measuring system particularly suitable for low pressures. On pressurisation, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated. Due to its high variance, the instrument is suitable for use in a wide range of applications within industry.
Zero point setting in front
Reliable measurement
