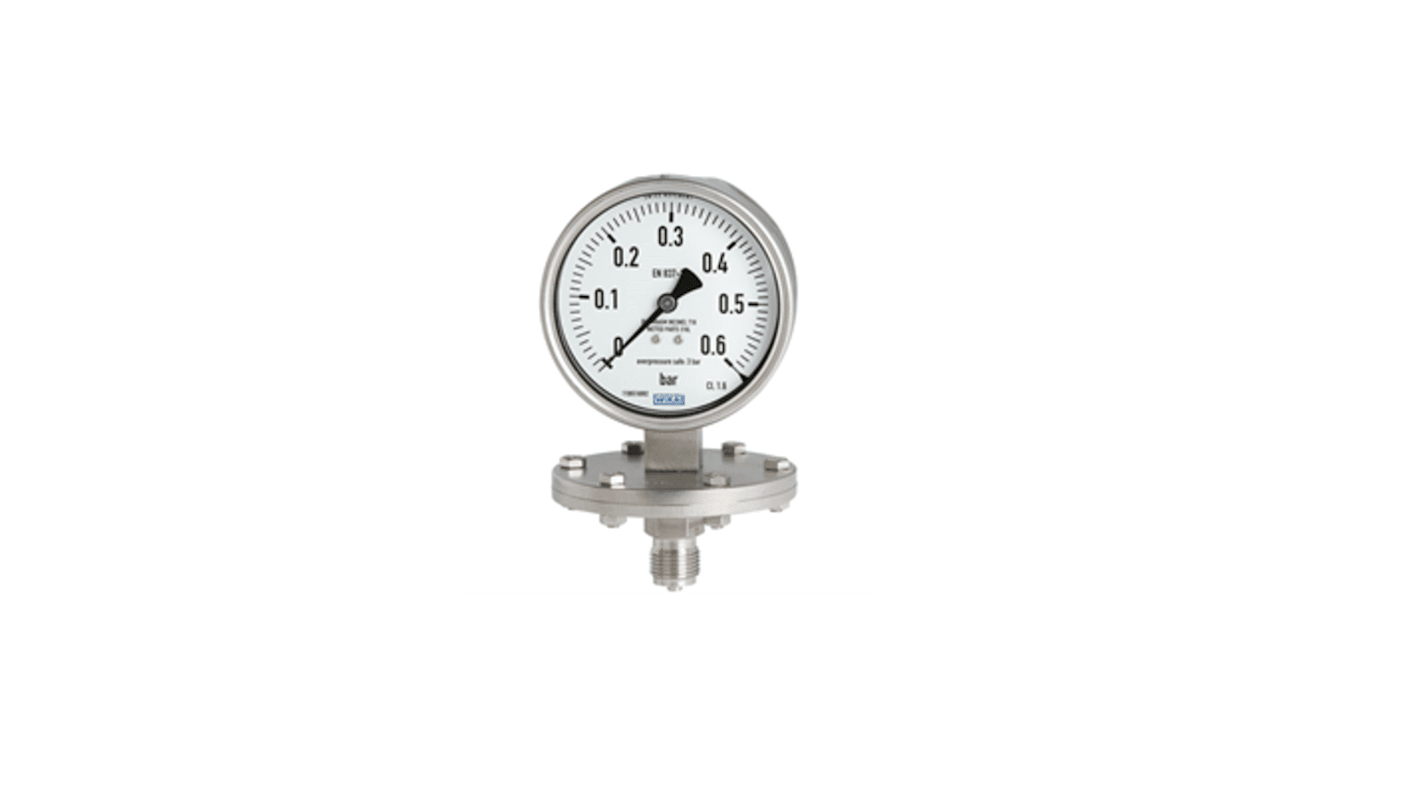

WIKA G 1/2 Analogue Pressure Gauge 0bar Bottom Entry 160mm Outside Diameter
- RS Stock No.:
- 222-9149
- Mfr. Part No.:
- 9030417
- Brand:
- WIKA
Subtotal (1 unit)*
£697.18
(exc. VAT)
£836.62
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £697.18 |
*price indicative
- RS Stock No.:
- 222-9149
- Mfr. Part No.:
- 9030417
- Brand:
- WIKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Maximum Pressure Measurement | 0bar | |
| Mounting Type | Bottom Entry | |
| Minimum Pressure Measurement | -1bar | |
| Display Type | Analogue | |
| Connection Size | G 1/2 | |
| Gauge Outside Diameter | 160mm | |
| Series | 4XX.XX | |
Select all | ||
|---|---|---|
Brand WIKA | ||
Maximum Pressure Measurement 0bar | ||
Mounting Type Bottom Entry | ||
Minimum Pressure Measurement -1bar | ||
Display Type Analogue | ||
Connection Size G 1/2 | ||
Gauge Outside Diameter 160mm | ||
Series 4XX.XX | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
The WIKA Diaphragm Pressure Gauges are preferably used for low pressure ranges. Through the large working surface of the circular, corrugated diaphragm element, small pressure ranges can be measured reliably. The model 432.50 diaphragm pressure gauge is manufactured in accordance with EN 837-3. The high-quality design is particularly suitable for applications in the chemical and petrochemical industry, oil and gas industry and power engineering.
Case and wetted parts from stainless steel
Wide choice of special materials
High overload safety up to the 10-fold full scale value
Wide choice of special materials
High overload safety up to the 10-fold full scale value
