RS PRO BSP 1/2in Analogue Pressure Gauge 3bar Bottom Entry 100mm Outside Diameter
- RS Stock No.:
- 180-007
- Brand:
- RS PRO
Subtotal (1 unit)*
£120.53
(exc. VAT)
£144.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £120.53 |
*price indicative
- RS Stock No.:
- 180-007
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Pressure Measurement | 3bar | |
| Minimum Pressure Measurement | -1bar | |
| Mounting Type | Bottom Entry | |
| Display Type | Analogue | |
| Connection Size | BSP 1/2in | |
| Gauge Outside Diameter | 100mm | |
| Case Material | Stainless Steel | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Pressure Measurement 3bar | ||
Minimum Pressure Measurement -1bar | ||
Mounting Type Bottom Entry | ||
Display Type Analogue | ||
Connection Size BSP 1/2in | ||
Gauge Outside Diameter 100mm | ||
Case Material Stainless Steel | ||
- COO (Country of Origin):
- IT

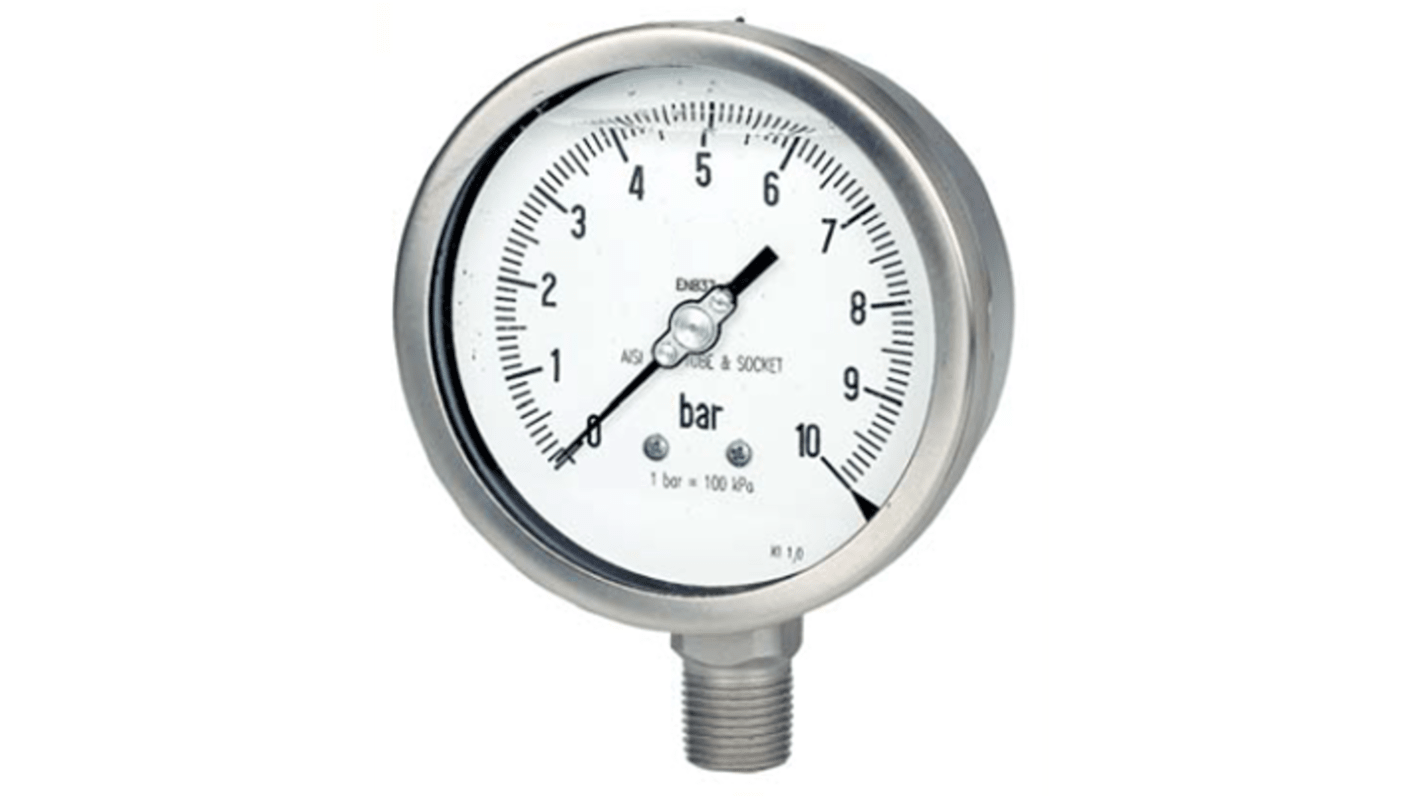

RS PRO Bourdon Tube Pressure Gauge – 100 mm, BSP 1/ 2
When it comes to high-quality pressure measurement, RS PRO has you covered. Introducing our range of Bourdon Tube Pressure Gauges, expertly crafted to handle medium to high pressures across a variety of applications.
Each gauge is a testament to superior engineering and design. The crystal-clear plastic window ensures effortless readability, while the polished stainless-steel case and gloss-finish ring bezel exude durability and sophistication.
These gauges are filled with liquid glycerine for enhanced performance in vibration-prone environments, feature a convenient bottom-entry orientation, and come with BSP 1/2 connections. With multiple pressure ranges available, RS PRO provides a reliable solution tailored to your needs.
Each gauge is a testament to superior engineering and design. The crystal-clear plastic window ensures effortless readability, while the polished stainless-steel case and gloss-finish ring bezel exude durability and sophistication.
These gauges are filled with liquid glycerine for enhanced performance in vibration-prone environments, feature a convenient bottom-entry orientation, and come with BSP 1/2 connections. With multiple pressure ranges available, RS PRO provides a reliable solution tailored to your needs.
Features and Benefits
- 1/2 BSP-Male
- Bottom entry
- Compatible with gaseous or liquid media that are not corrosive to copper alloy
- Dial size: 100 mm
- Glycerine filled
- Analogue
- Polycarbonate window
- Stainless steel case
- Copper alloy socket and bourdon tube
- IP Rating: IP67
- Built in compliance with the construction and safety S2 specifications of standard EN 837-1
Why Would You Choose RS PRO For Pressure Gauges?
Experience precision, reliability, and style with RS PRO Pressure Gauges. Explore our extensive range and easily find your perfect solution using our enhanced filter system—designed to simplify your search and deliver exactly what you need.
Applications
- Air conditioning systems
- Heating systems
- Compressors
- Medical engineering
- Operating machinery
- Hydraulics systems
