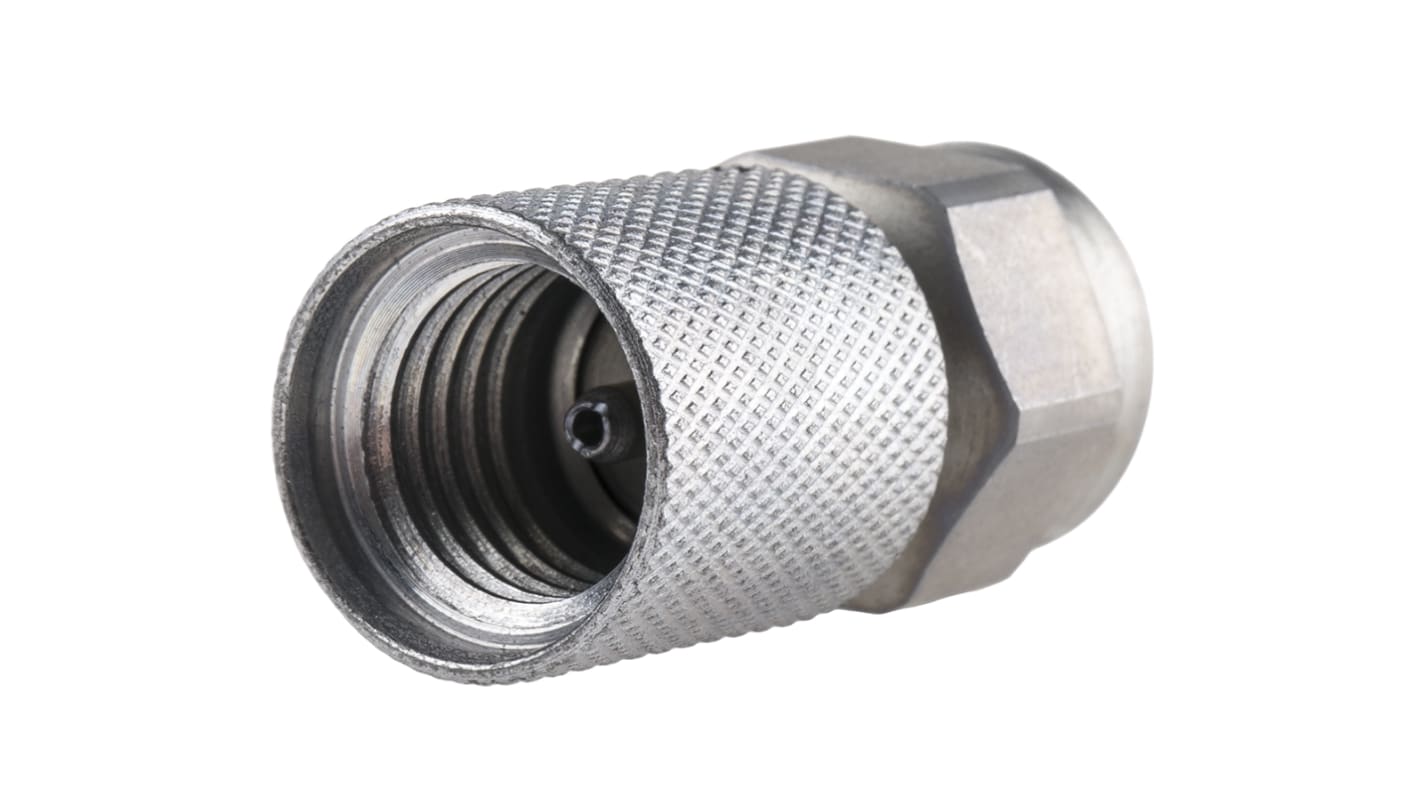

Stauff Adapter, G 1/4 Female, M16 Female, 630bar max
- RS Stock No.:
- 432-5555
- Mfr. Part No.:
- SMD 20 R 1/4 V
- Brand:
- Stauff
Subtotal (1 unit)*
£15.43
(exc. VAT)
£18.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5 unit(s) shipping from 06 October 2025
- Plus 17 unit(s) shipping from 20 October 2025
- Plus 13 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £15.43 |
*price indicative
- RS Stock No.:
- 432-5555
- Mfr. Part No.:
- SMD 20 R 1/4 V
- Brand:
- Stauff
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Stauff | |
Accessory Type | Adapter | |
Connector A | G 1/4 Female | |
Connector A - Gender | Female | |
Connector A - Thread Size | 1/4in | |
Connector A - Thread Standard | G | |
Connector B | M16 Female | |
Connector B - Gender | Female | |
Connector B - Thread Size | M16 | |
Connector B - Thread Standard | Metric | |
Body Material | Steel | |
Maximum Operating Pressure | 630bar | |
Select all | ||
---|---|---|
Brand Stauff | ||
Accessory Type Adapter | ||
Connector A G 1/4 Female | ||
Connector A - Gender Female | ||
Connector A - Thread Size 1/4in | ||
Connector A - Thread Standard G | ||
Connector B M16 Female | ||
Connector B - Gender Female | ||
Connector B - Thread Size M16 | ||
Connector B - Thread Standard Metric | ||
Body Material Steel | ||
Maximum Operating Pressure 630bar | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Direct Gauge Adaptor
Female BSP threaded side allows quick connection of pressure gauge
Swivel side fits directly to test coupling
Swivel side fits directly to test coupling
Warning
It is essential that tube with an adequate wall thickness for the appropriate working pressures be used with these products and systems.

Test Points - Stauff
These test products have a leak-proof ball-type sealing connection. The test couplings come with self-locking metal guard caps as standard. They can be coupled directly into the pressurised system, creating simple connection to measuring, control and switching devices. They provide fast coupling for monitoring and control of pressure, venting and sampling in low/high pressure and vacuum systems. Applications include monitoring and control of static and peak pressures, connection to pressure gauges, pressure control of fluids, venting/bleeding of air from hydraulic systems and contamination sampling for further analysis. Maximum joining pressure is 400bar. Metal parts are steel with zinc and gold surface finish (or stainless steel, where stated). Balls are stainless steel. Seals are Viton on all steel or stainless steel parts.
