Eaton Block Plastic NO/NC Precision Position Switch, 6A, IP67, IP66 33.5 mm 31mm 61 mm
- RS Stock No.:
- 229-9490
- Mfr. Part No.:
- 266112 LS-11/P
- Brand:
- Eaton
Subtotal (1 pack of 2 units)*
£68.46
(exc. VAT)
£82.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 18 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 + | £34.23 | £68.46 |
*price indicative
- RS Stock No.:
- 229-9490
- Mfr. Part No.:
- 266112 LS-11/P
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Precision Position Switch | |
| Body Style | Block | |
| Output Type | NO/NC | |
| Terminal Type | Cage Clamp | |
| Switching Current | 6A | |
| Housing Material | Plastic | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| IP Rating | IP67, IP66 | |
| Standards/Approvals | IEC/EN 60947 | |
| Depth | 61mm | |
| Series | LS | |
| Width | 31mm | |
| Length | 33.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Precision Position Switch | ||
Body Style Block | ||
Output Type NO/NC | ||
Terminal Type Cage Clamp | ||
Switching Current 6A | ||
Housing Material Plastic | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
IP Rating IP67, IP66 | ||
Standards/Approvals IEC/EN 60947 | ||
Depth 61mm | ||
Series LS | ||
Width 31mm | ||
Length 33.5mm | ||
- COO (Country of Origin):
- DE

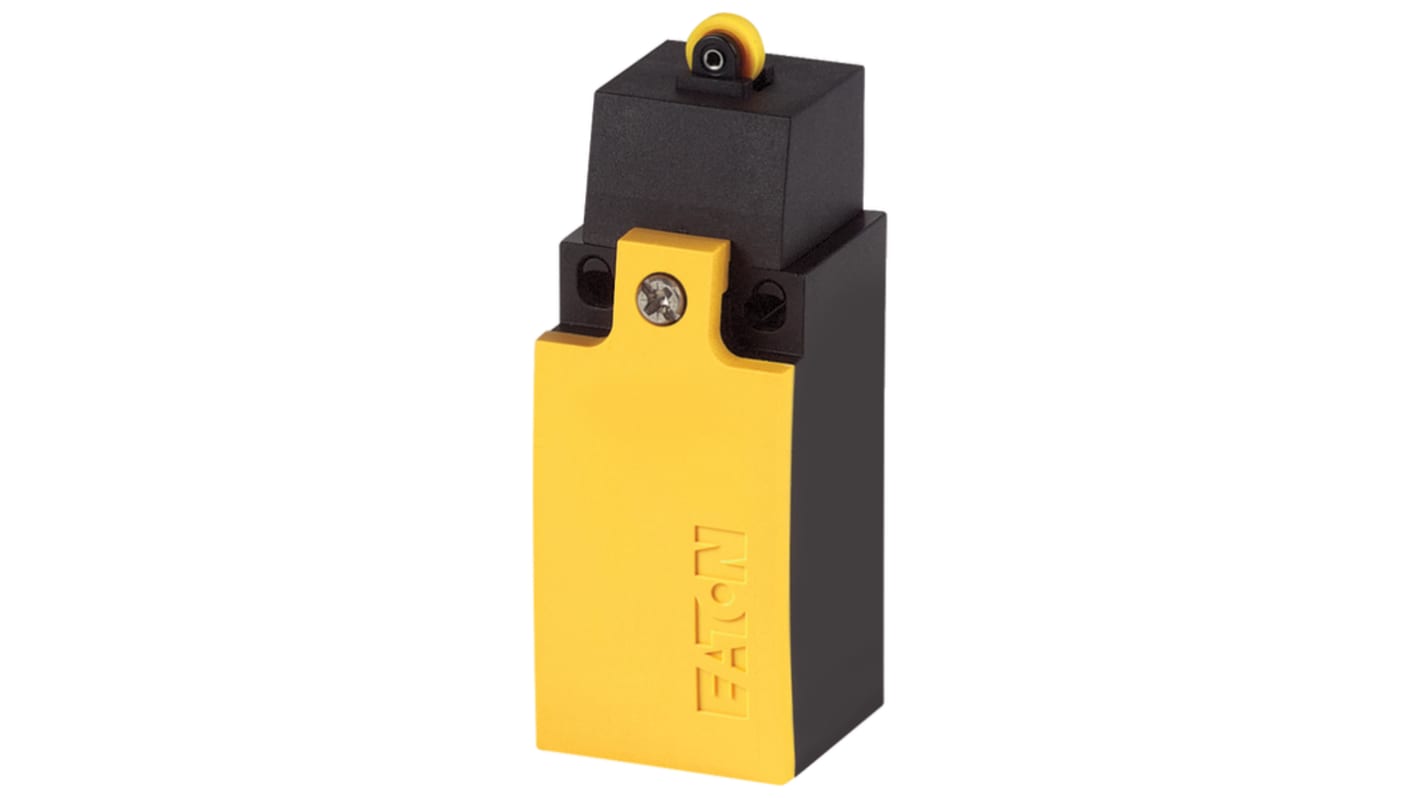

The Eaton position switch is available with roller plunger. It is available in yellow colour.
Operating temperature range is from -25°C to 70 °C
IP66, IP67 protection class
Note
Eaton formerly known as Moeller
