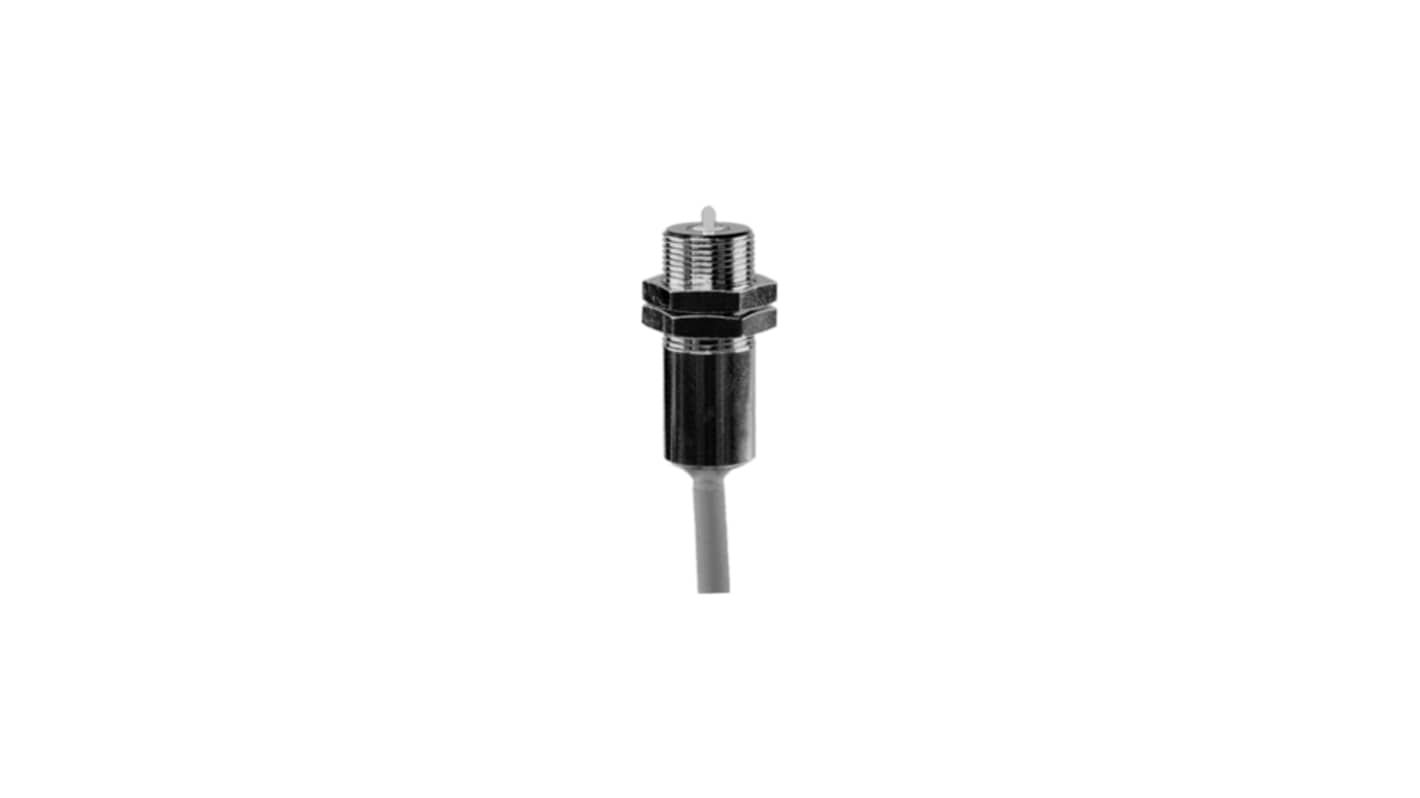

Baumer Cylindrical Nickel Plated Brass NC Precision Position Switch, 2mA, Cable, IP50 2 mm 8mm
- RS Stock No.:
- 466-082
- Mfr. Part No.:
- MY COM B75/80
- Brand:
- Baumer
Subtotal (1 unit)*
£180.39
(exc. VAT)
£216.47
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £180.39 |
*price indicative
- RS Stock No.:
- 466-082
- Mfr. Part No.:
- MY COM B75/80
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Product Type | Precision Position Switch | |
| Body Style | Cylindrical | |
| Output Type | NC | |
| Terminal Type | Cable | |
| Mount Type | Cable | |
| Switching Current | 2mA | |
| Minimum Operating Temperature | -20°C | |
| Housing Material | Nickel Plated Brass | |
| IP Rating | IP50 | |
| Maximum Operating Temperature | 75°C | |
| Series | MY-COM B75/80 | |
| Width | 8mm | |
| Standards/Approvals | UL, CE | |
| Length | 2mm | |
| Select all | ||
|---|---|---|
Brand Baumer | ||
Product Type Precision Position Switch | ||
Body Style Cylindrical | ||
Output Type NC | ||
Terminal Type Cable | ||
Mount Type Cable | ||
Switching Current 2mA | ||
Minimum Operating Temperature -20°C | ||
Housing Material Nickel Plated Brass | ||
IP Rating IP50 | ||
Maximum Operating Temperature 75°C | ||
Series MY-COM B75/80 | ||
Width 8mm | ||
Standards/Approvals UL, CE | ||
Length 2mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The Baumer My-Com precision switch supports DC voltage up to 15 VDC with a maximum switching current of 2 mA. For AC voltage, it operates up to 24 VAC, handling a maximum switching current of 50 mA. It features a mechanical break function (NC) for reliable operation.
Activating pin zirconium oxide ZrO2
Housing material brass nickel plated
