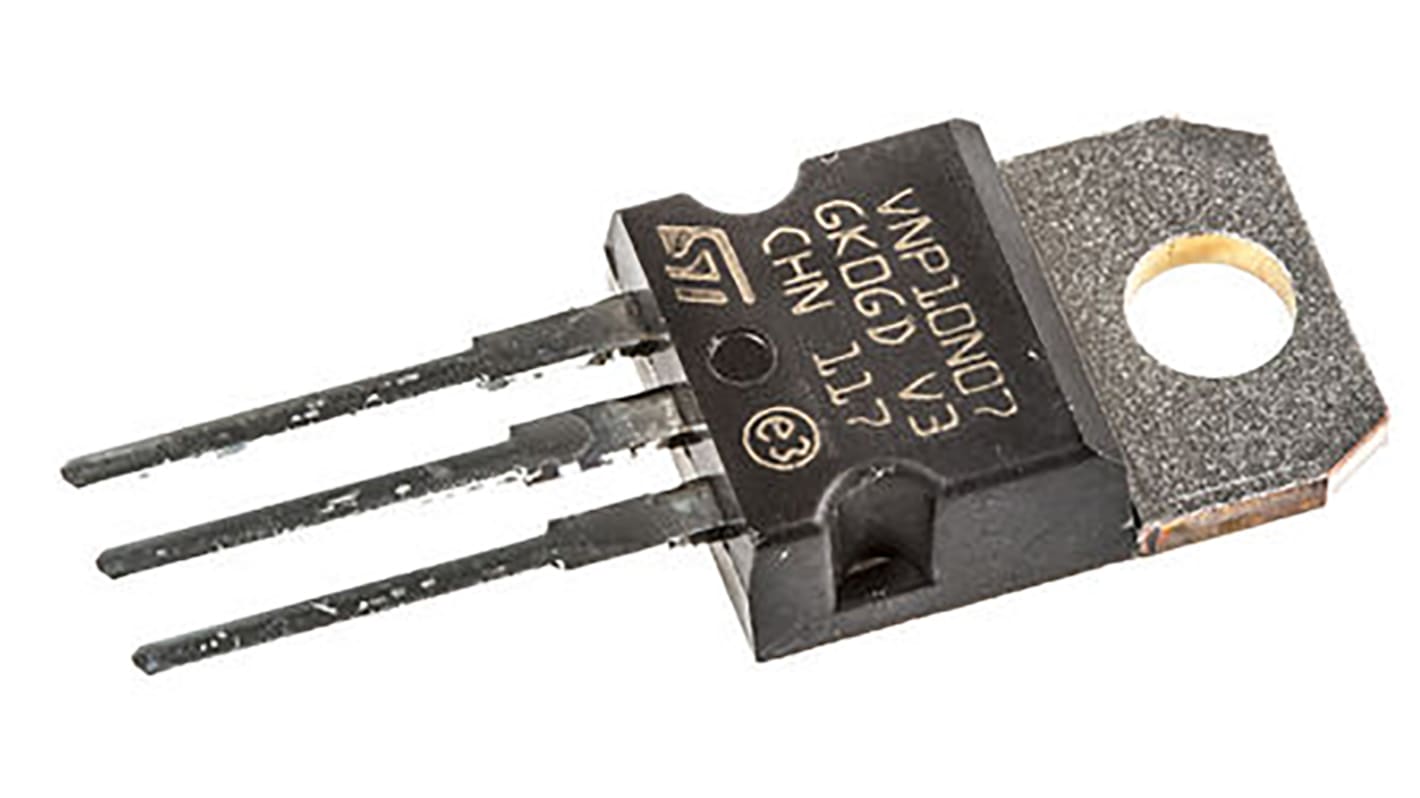

STMicroelectronics Low Side, OMNIFET: Fully Auto protected Power MOSFET Power Switch IC 3-Pin, TO-220
- RS Stock No.:
- 920-8953
- Mfr. Part No.:
- VNP10N07-E
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (50 units, in tubes of 50)*
£55.00
(exc. VAT)
£66.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 200 | £1.10 | £55.00 |
| 250 - 450 | £1.073 | £53.65 |
| 500 + | £1.043 | £52.15 |
*price indicative
- RS Stock No.:
- 920-8953
- Mfr. Part No.:
- VNP10N07-E
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Power Switch Topology | Low Side | |
| Power Switch Type | OMNIFET: Fully Auto protected Power MOSFET | |
| Product Type | Power Switch IC | |
| Number of Outputs | 1 | |
| Mount Type | Through Hole | |
| Package Type | TO-220 | |
| Pin Count | 3 | |
| Maximum Supply Voltage | 70V | |
| Operating Current | 10A | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | No | |
| Width | 4.6mm | |
| Length | 10.4mm | |
| Height | 15.75mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Power Switch Topology Low Side | ||
Power Switch Type OMNIFET: Fully Auto protected Power MOSFET | ||
Product Type Power Switch IC | ||
Number of Outputs 1 | ||
Mount Type Through Hole | ||
Package Type TO-220 | ||
Pin Count 3 | ||
Maximum Supply Voltage 70V | ||
Operating Current 10A | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals No | ||
Width 4.6mm | ||
Length 10.4mm | ||
Height 15.75mm | ||
Automotive Standard No | ||
OMNIFET Fully Auto-Protected Power MOSFET, STMicroelectronics
The OMNIFET series of fully auto-protected low-side drivers, are measured on the criteria of ruggedness and improved reliability. These solid state power switches are designed for inductive or resistive loads, especially in the automotive environment.
Linear current limitation
Thermal shut down
Short circuit protection
ESD protection
Integrated clamp
Intelligent Power Switches, STMicroelectronics
