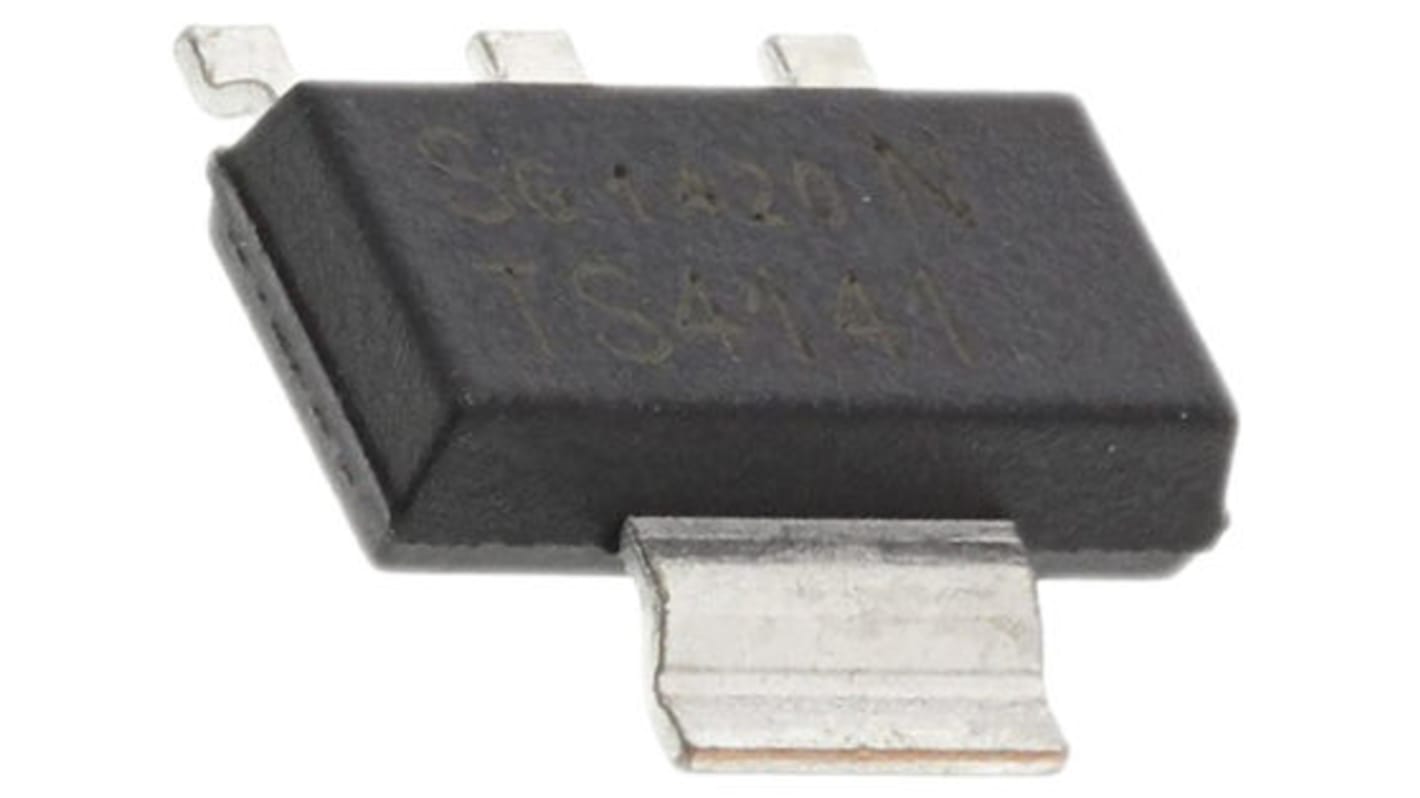

Infineon BTS4141NHUMA1High Side, High Side Switch Power Switch IC 3 + Tab-Pin, SOT-223
- RS Stock No.:
- 919-8755
- Mfr. Part No.:
- BTS4141NHUMA1
- Brand:
- Infineon
Subtotal (1 reel of 4000 units)*
£3,276.00
(exc. VAT)
£3,932.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
4000 + | £0.819 | £3,276.00 |
*price indicative
- RS Stock No.:
- 919-8755
- Mfr. Part No.:
- BTS4141NHUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Power Switch Type | High Side Switch | |
Power Switch Topology | High Side | |
Switch On Resistance | 320mΩ | |
Maximum Operating Supply Voltage | 45 V | |
Maximum Operating Current | 0.7A | |
Number of Outputs | 1 | |
Mounting Type | Surface Mount | |
Package Type | SOT-223 | |
Pin Count | 3 + Tab | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Temperature | -40 °C | |
Dimensions | 6.5 x 3.5 x 1.6mm | |
Select all | ||
---|---|---|
Brand Infineon | ||
Power Switch Type High Side Switch | ||
Power Switch Topology High Side | ||
Switch On Resistance 320mΩ | ||
Maximum Operating Supply Voltage 45 V | ||
Maximum Operating Current 0.7A | ||
Number of Outputs 1 | ||
Mounting Type Surface Mount | ||
Package Type SOT-223 | ||
Pin Count 3 + Tab | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 6.5 x 3.5 x 1.6mm | ||
- COO (Country of Origin):
- CN
PROFET Smart High-Side Power Switch, Single-Channel, Infineon
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown
Overvoltage protection
Electrostatic discharge (ESD) protection
Current limitation
Short-circuit protection
Thermal shutdown
Overvoltage protection
Electrostatic discharge (ESD) protection
