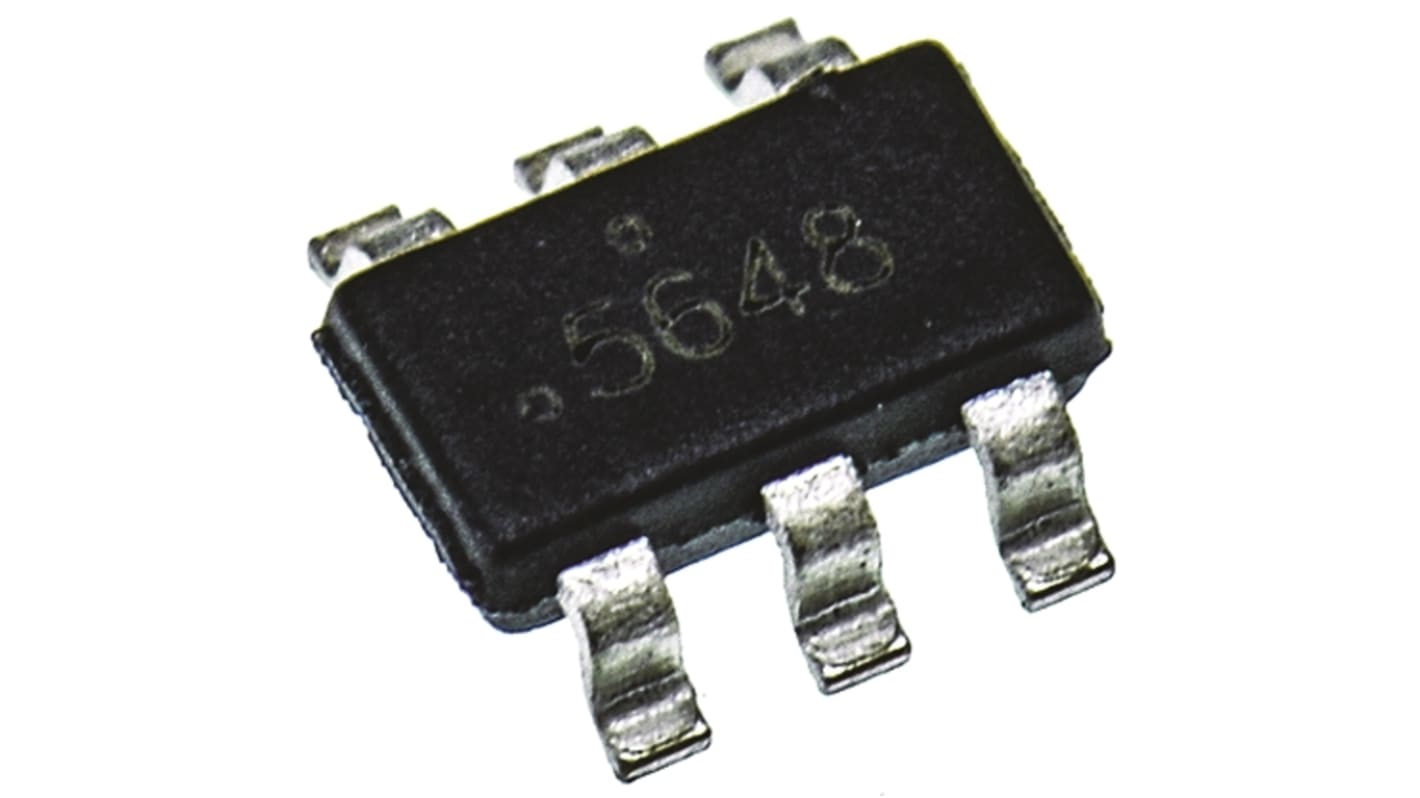

onsemi FAN4146SX Power Switch IC 6-Pin, SOT-23
- RS Stock No.:
- 865-0883
- Mfr. Part No.:
- FAN4146SX
- Brand:
- ON Semiconductor
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 25)
£0.23
(exc. VAT)
£0.28
(inc. VAT)
- RS Stock No.:
- 865-0883
- Mfr. Part No.:
- FAN4146SX
- Brand:
- ON Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ON Semiconductor | |
| Number of Outputs | 1 | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Pin Count | 6 | |
| Maximum Operating Temperature | +70 °C | |
| Minimum Operating Temperature | 0 °C | |
| Dimensions | 3 x 1.7 x 1mm | |
Select all | ||
|---|---|---|
Brand ON Semiconductor | ||
Number of Outputs 1 | ||
Mounting Type Surface Mount | ||
Package Type SOT-23 | ||
Pin Count 6 | ||
Maximum Operating Temperature +70 °C | ||
Minimum Operating Temperature 0 °C | ||
Dimensions 3 x 1.7 x 1mm | ||
- COO (Country of Origin):
- US
Ground Fault Interupter, Fairchild Semiconductor
FAN4146: Low Power Controller for AC outlet Appliance Leakage Circuit Interrupters (ALCI) and two-wire Residual Current Devices (RCD)
FAN4147: Low Power Ground Fault Interrupter (GFI) and two-wire Residual Current Devices (RCD)
Precision Sense Amplifier and Bandgap Reference
Build-in AC Rectifier
Direct DC Coupled to Sense Coil
Build-in Noise Filter
Low-Voltage SCR Disable
SCR Gate Driver
Adjustable Sensitivity
Minimum External Components
Meets UL 943B Requirements
FAN4147: Low Power Ground Fault Interrupter (GFI) and two-wire Residual Current Devices (RCD)
Precision Sense Amplifier and Bandgap Reference
Build-in AC Rectifier
Direct DC Coupled to Sense Coil
Build-in Noise Filter
Low-Voltage SCR Disable
SCR Gate Driver
Adjustable Sensitivity
Minimum External Components
Meets UL 943B Requirements
Sensor Interfaces, Fairchild Semiconductor
