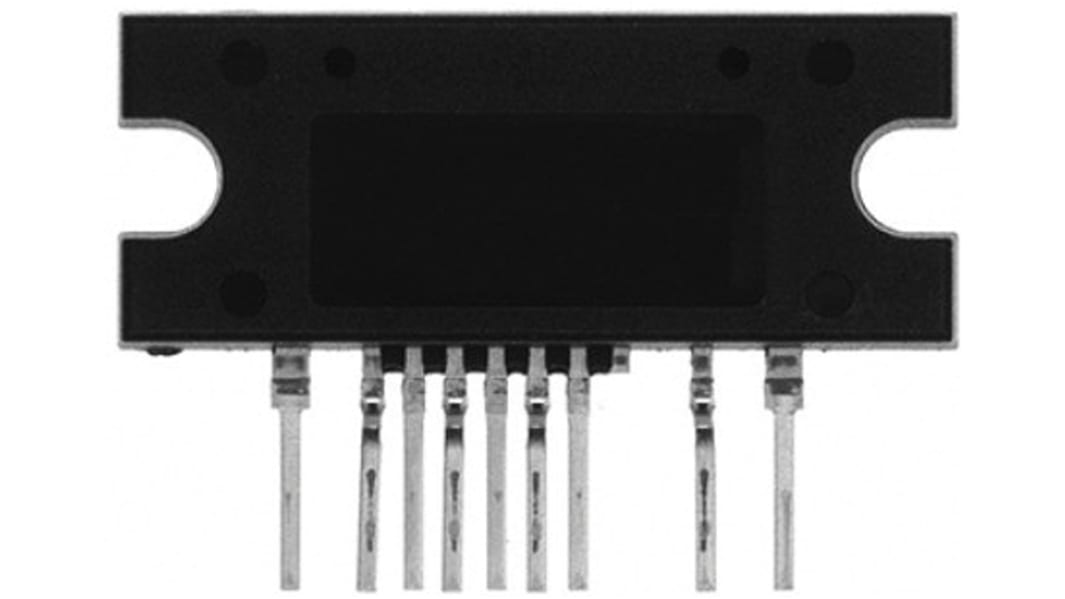

onsemi Low Side 1, Power Switch Power Switch IC 9-Pin, SIP
- RS Stock No.:
- 864-4995
- Mfr. Part No.:
- FSFR2100
- Brand:
- onsemi
Bulk discount available
Subtotal (1 tube of 19 units)*
£60.971
(exc. VAT)
£73.169
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tube* |
|---|---|---|
| 19 - 19 | £3.209 | £60.97 |
| 38 - 76 | £3.112 | £59.13 |
| 95 - 171 | £3.016 | £57.30 |
| 190 + | £2.888 | £54.87 |
*price indicative
- RS Stock No.:
- 864-4995
- Mfr. Part No.:
- FSFR2100
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Power Switch IC | |
| Power Switch Type | Power Switch | |
| Power Switch Topology | Low Side | |
| Switch On Resistance RdsOn | 4.75Ω | |
| Number of Inputs | 1 | |
| Mount Type | Through Hole | |
| Package Type | SIP | |
| Maximum Supply Voltage | 25V | |
| Pin Count | 9 | |
| Maximum Operating Temperature | 130°C | |
| Operating Current | 8.3A | |
| Minimum Operating Temperature | -40°C | |
| Height | 10.7mm | |
| Length | 26.2mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Power Switch IC | ||
Power Switch Type Power Switch | ||
Power Switch Topology Low Side | ||
Switch On Resistance RdsOn 4.75Ω | ||
Number of Inputs 1 | ||
Mount Type Through Hole | ||
Package Type SIP | ||
Maximum Supply Voltage 25V | ||
Pin Count 9 | ||
Maximum Operating Temperature 130°C | ||
Operating Current 8.3A | ||
Minimum Operating Temperature -40°C | ||
Height 10.7mm | ||
Length 26.2mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
LLC Resonant & Asymmetric Half Bridge PWM Controllers, Fairchild Semiconductor
Line Level Control (LLC)
Off-Line & Isolated DC-DC Controllers, Fairchild Semiconductor
The Flyback controllers, Line Level Control (LLC) controllers, and Primary-Side Regulation controllers offer Crucial energy savings to address the needs of Switch Mode Power Supply (SMPS) designs.
All controllers come with integrated soft-start, and protection features from over-voltage, open-feedback, overload, output-short, overcurrent, voltage brownout, and Undervoltage-Lockout.
