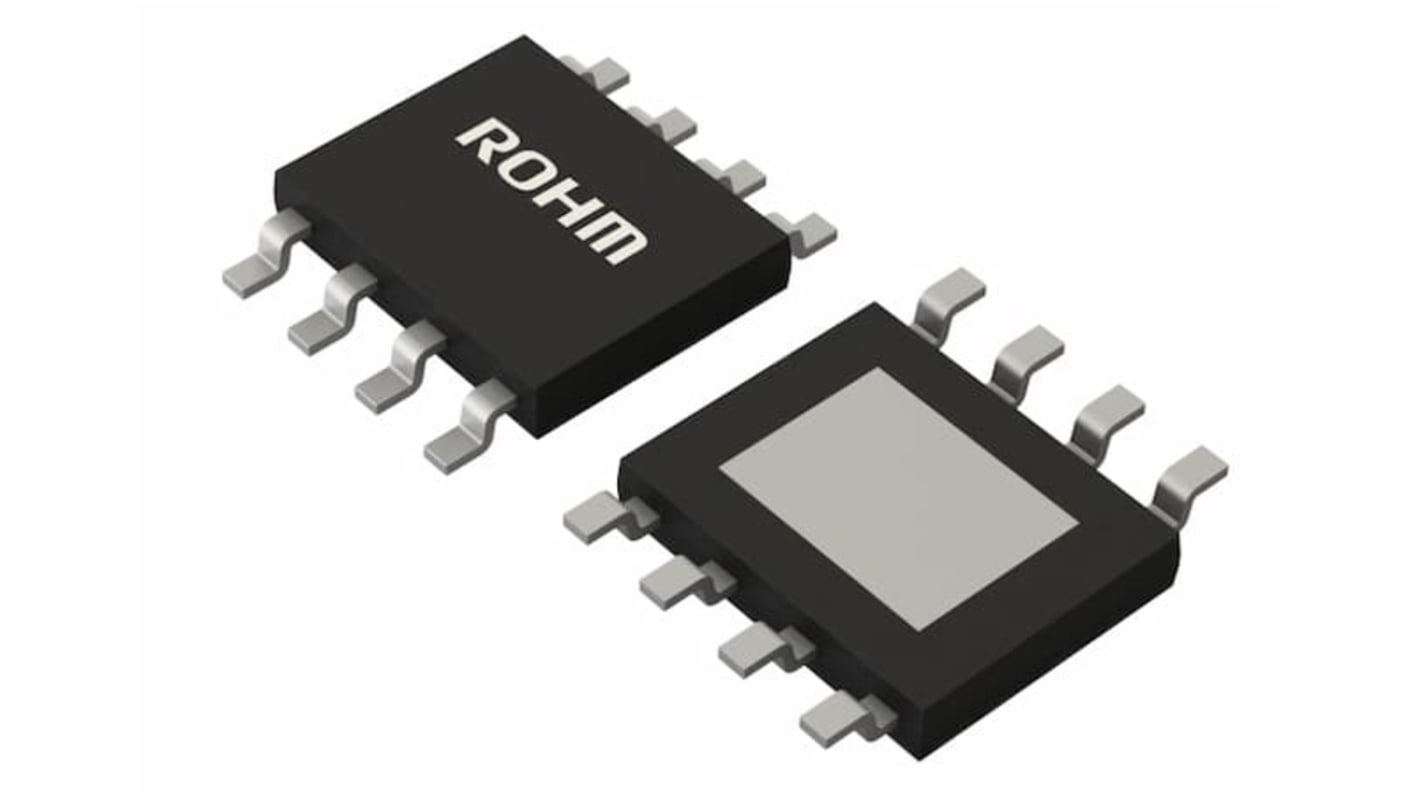

ROHM Low Side, Low Side Power Switch IC 8-Pin, HTSOP-J8
- RS Stock No.:
- 266-3789
- Mfr. Part No.:
- BD7J201EFJ-LBE2
- Brand:
- ROHM
Stock information currently inaccessible
- RS Stock No.:
- 266-3789
- Mfr. Part No.:
- BD7J201EFJ-LBE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Power Switch IC | |
| Power Switch Topology | Low Side | |
| Power Switch Type | Low Side | |
| Switch On Resistance RdsOn | 1Ω | |
| Minimum Supply Voltage | 8V | |
| Package Type | HTSOP-J8 | |
| Maximum Supply Voltage | 80V | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Operating Current | 0.45mA | |
| Height | 1mm | |
| Standards/Approvals | RoHS | |
| Length | 6mm | |
| Series | BD7J201EFJ-LB | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Power Switch IC | ||
Power Switch Topology Low Side | ||
Power Switch Type Low Side | ||
Switch On Resistance RdsOn 1Ω | ||
Minimum Supply Voltage 8V | ||
Package Type HTSOP-J8 | ||
Maximum Supply Voltage 80V | ||
Pin Count 8 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Operating Current 0.45mA | ||
Height 1mm | ||
Standards/Approvals RoHS | ||
Length 6mm | ||
Series BD7J201EFJ-LB | ||
Automotive Standard AEC-Q100 | ||
The ROHM fly back converter IC is the product guarantees long time support in industrial market, this IC is an optocoupler-less isolated fly back converter. It is not necessary to use any optocouplers and feedback circuits by a third winding of transformers; these have been ever required to obtain a stable output voltage in conventional applications. Furthermore, adoption of the original adapter type technology that controls on time makes the external phase compensation parts unnecessary, which realizes the designs of isolated power supply application with drastic reduction of parts number, minimization of application circuits, and high reliability.
Shutdown and enable control
Soft start function
Load compensation function
